Step
å

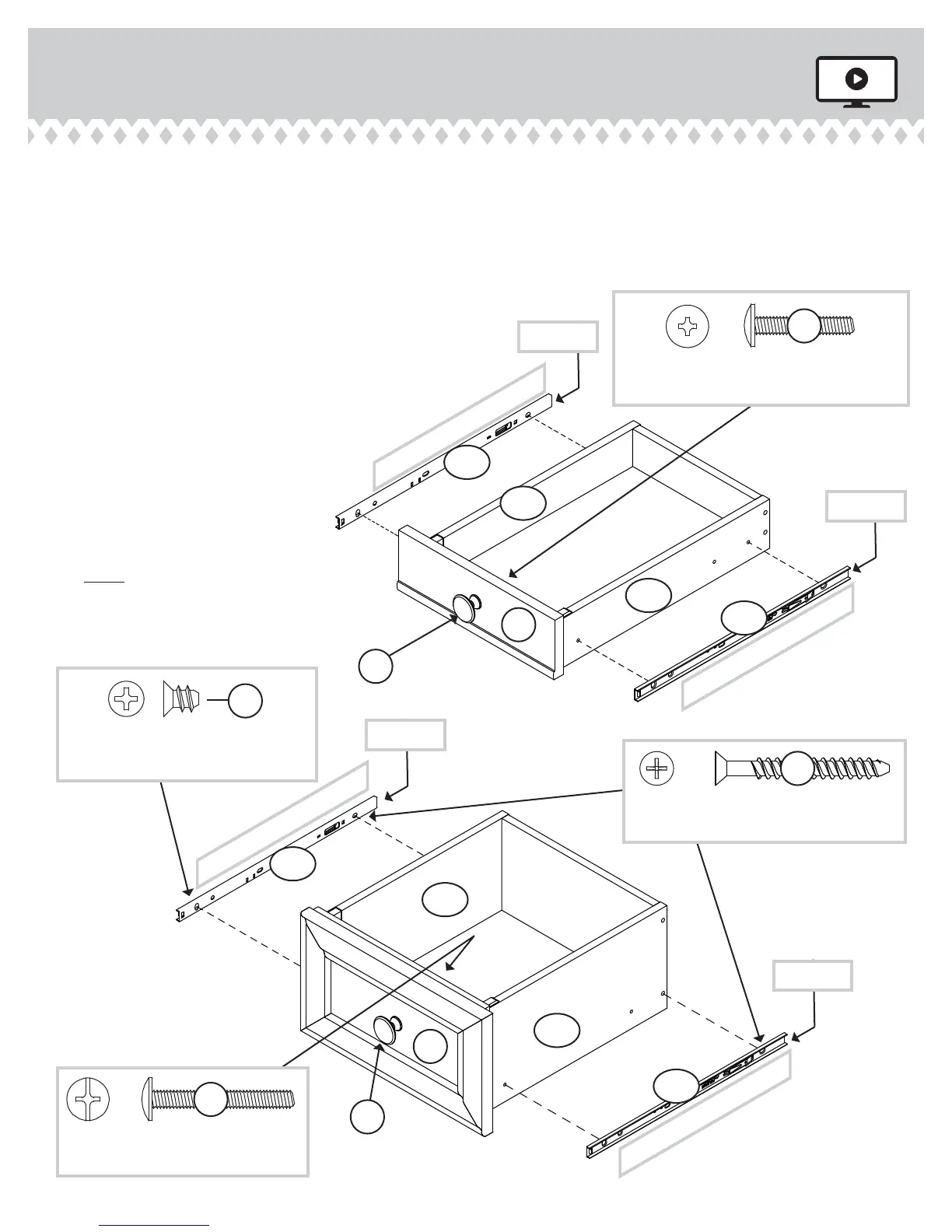

Fasten the NARROW EXTENSION SLIDES (QQQ) to the DRAWER
SIDES (D46 and D47). Use four GOLD 5/16" FLAT HEAD SCREWS (3S).
å
Fasten the KNOB (42K) to the TOP RIGHT DRAWER FRONT (GG). Use a
BLACK 7/8" MACHINE SCREW (37S).
å
Repeat this step for the left small drawer.
å
Fasten the NARROW EXTENSION SLIDES (QQQ) to the
DRAWER SIDES (D36 and D37). Use two GOLD 5/16" FLAT
HEAD SCREWS (3S) through the fi rst hole and use two
BLACK 1-9/16" FLAT HEAD SCREWS (30S)
through the last hole.
å
Fasten the KNOB (42K) to the DRAWER
FRONT (BB). Use a SILVER 1-1/4"
MACHINE SCREW (35S) through
the DRAWER BOX FRONT,
through the DRAWER
FRONT, and into the KNOB.
å
NOTE: The left small drawer
will use a BLACK
7/8" MACHINE SCREW
to fasten the KNOB.
Step 38
42K
42K
QQQ
QQQ
QQQ
QQQ
GG
BB
SILVER 1-1/4" MACHINE SCREW
(1 used for the KNOB)
35S
D36
D37
Open end
Open end
Narrow Extension Slide
Narrow Extension Slide
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
Narrow Extension Slide
Narrow Extension Slide
Open end
Open end
D46
D47
BLACK 7/8" MACHINE SCREW
(2 used for the KNOBS in the small drawers)
37S
