Step Step 37
å

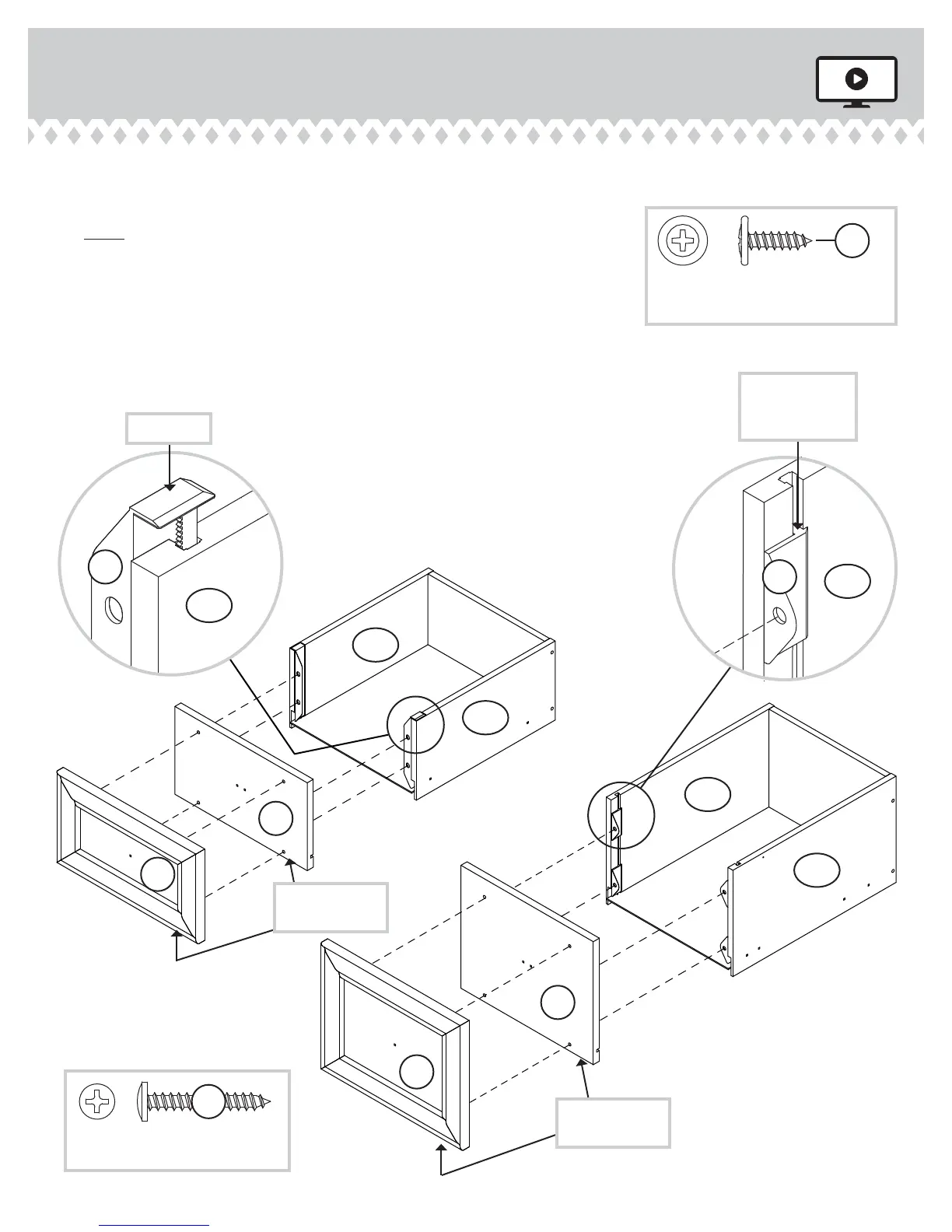

Pull the DRAWER FRONT BRACKETS (9G and 10G) apart and slide them
into the grooves in the DRAWER SIDES (D211, D32, D36, and D37).
å
NOTE: The DRAWER FRONT BRACKETS are marked "RH" and "LH" for
easy identifi cation.
å
Fasten the DRAWER BOX FRONTS (S and Z) to the DRAWER FRONT
BRACKETS (9G and 10G). Use eight BLACK 9/16" LARGE
HEAD SCREWS (1S).
å
Fasten the DRAWER FRONTS (U and BB) to the DRAWER BOX
FRONTS (S and Z). Use eight BLACK 1-1/8" PAN HEAD SCREWS (9S).
S
Z
BB
U
10G
D211
BLACK 9/16" LARGE HEAD SCREW
(8 used for the BRACKETS)
1S
BLACK 1-1/8" PAN HEAD SCREW
(8 used for the DRAWER FRONTS)
9S
D32
D36
D37
These edges
should be even.
These edges
should be even.
Tap down with
your screwdriver
and hammer.
Push down
9G
D36
