Section 5
Eective Spread Width ft
Desired Application Rate lbs/1000ft ²
Average Test Path Time sec
Weight To Be Added To
Hopper For Calibration
lbs
oz During Average Test Path Time Of sec
Machine:
Date: / /
Calibrated By:
Chemical Calibrated For:
Calibrated For Ground Speed Of: MPH
Calibrated For Spread Width Of: ft
Gate Setting Used:
Application Rate: lbs/1000ft
²
This sheet is to be used for the calibration of the Scag Turfstorm spreader system. Always make sure the machine to be used is in proper
operating condition and that the user is trained in the proper operation of the machine. Always make sure to follow all safety information
given in the owner’s manual for this machine, as well as, any chemical safety information given by the manufacturer of the chemical being
used. Failure to follow safety information involving the handling of chemicals and the operation of this machine can lead to property
damage or personal injury. The spreader system should always be calibrated using a safe area that will not cause turf damage. For more
information on the spreader calibration process, please refer to the owners manual.
Test #1
Test #2
Test #3
Average
Test Path Time (seconds)
Test Path Length (ft)
Test #1 + Test #2 + Test #3
3
For more information on how to calculate eective spread width, refer to section 6.8 in the operator’s manual.
If the hopper empties as time expires, the spreader is calibrated correctly for the desired application rate.
If the hopper does not empty during the test time, the gate setting needs to be adjusted to increase the ow.
If the hopper empties before time expires, the gate setting needs to be adjusted to decrease the ow.
1000 ft²
Desired Application Rate (lbs/1000 ft²) x ( Eective Spread Width (ft) x Course Length (ft) )
=
Amount During Testing (lbs)

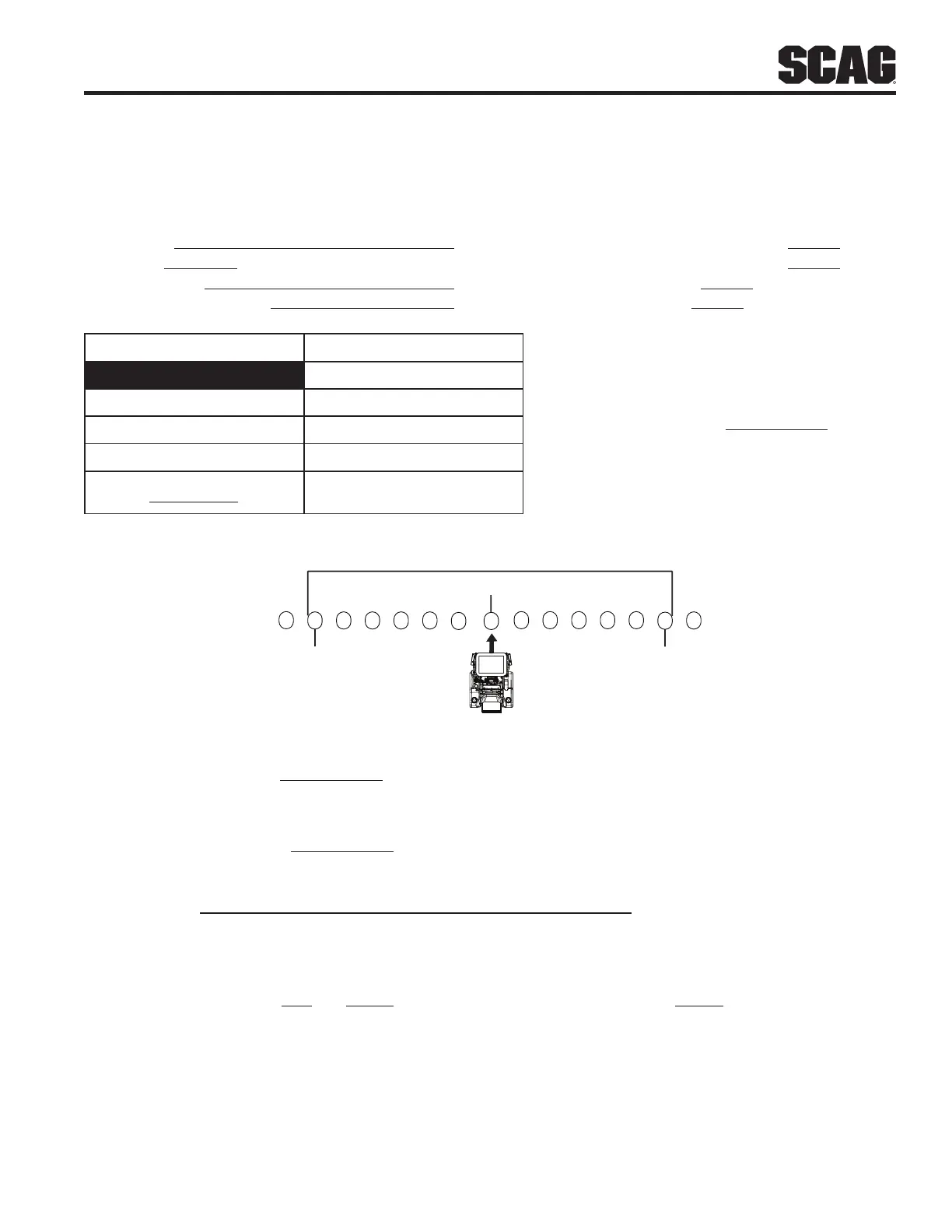

C L1 R1 R2 R3 R5R4 R6 R7L2L3L4L5L6L7
16 Ounces
Eective Spread Width
8 Ounces
(Half of Center Value)(Half of Center Value)
8 Ounces
If spreader width is not centered as depicted in the image above, use the accuway adjustment to center the spread area.
