SCAN 68 Series - Mounting of the Storage Door for the Portal Unit

17
T
3
1 2
5
6 7
4

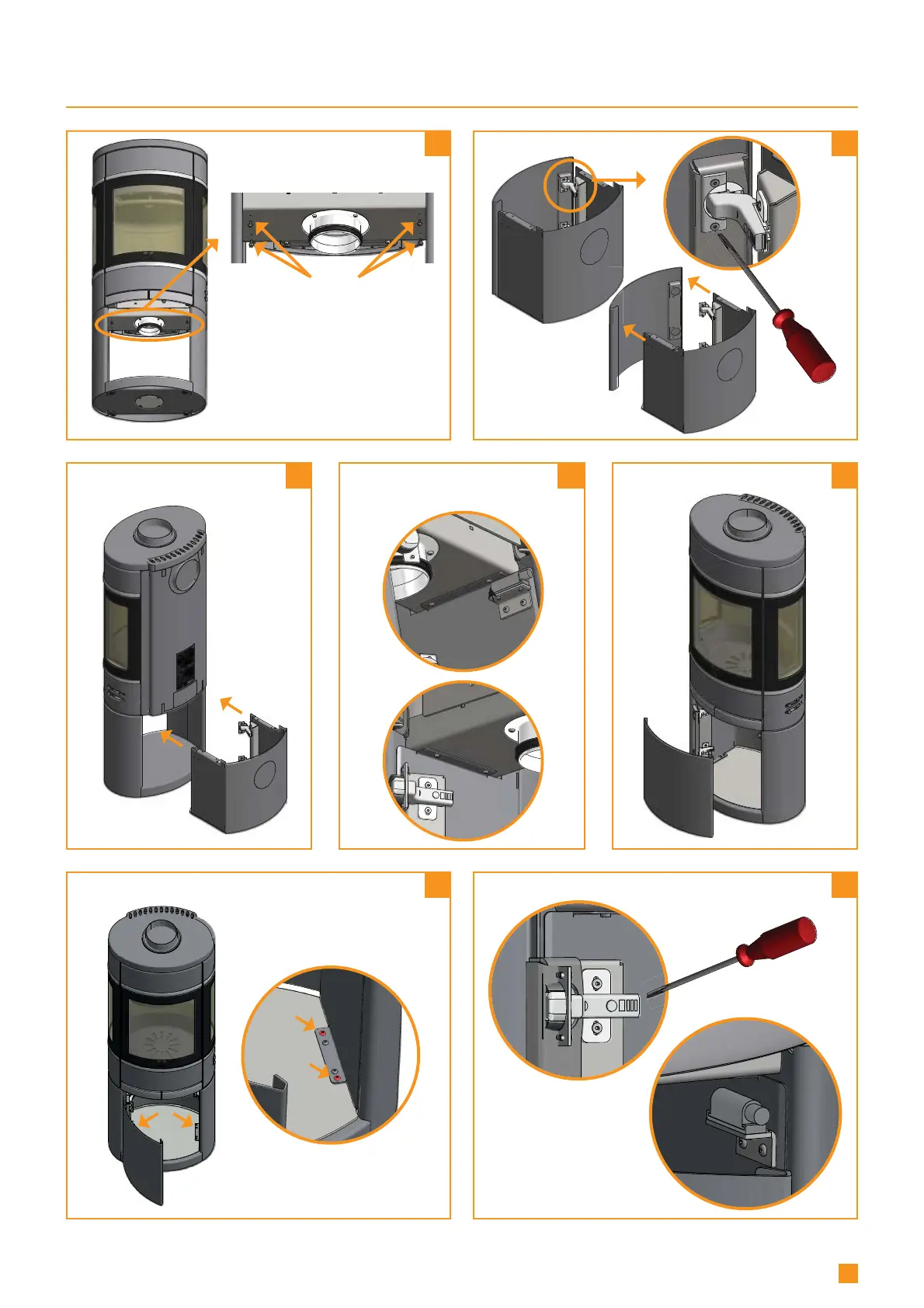

MOUNTING OF THE STORAGE DOOR FOR THE PORTAL UNIT
Remove the four screws under
the stove before placing the
door assembly
RejustThe 4 outer screws at the bottom are easily tightened
Carefully push the door
assembly in from behind
Remount the doorFirst mount the four
screws at the top
Dismount the door
(ACCESSORY)
