SCAN 68 Series - Mounting of the Wall Fitting on the Stove

19
3
41
2
5
6
In order to mount the wall fitting to a chimney made
of Leca-blocks you need 6 pcs. FBS 8x70/5 US Leca
screws.
The test report can be required at Scan A/S
When the two screws have been removed, you can lift
the guide plate and put the fitting underneath

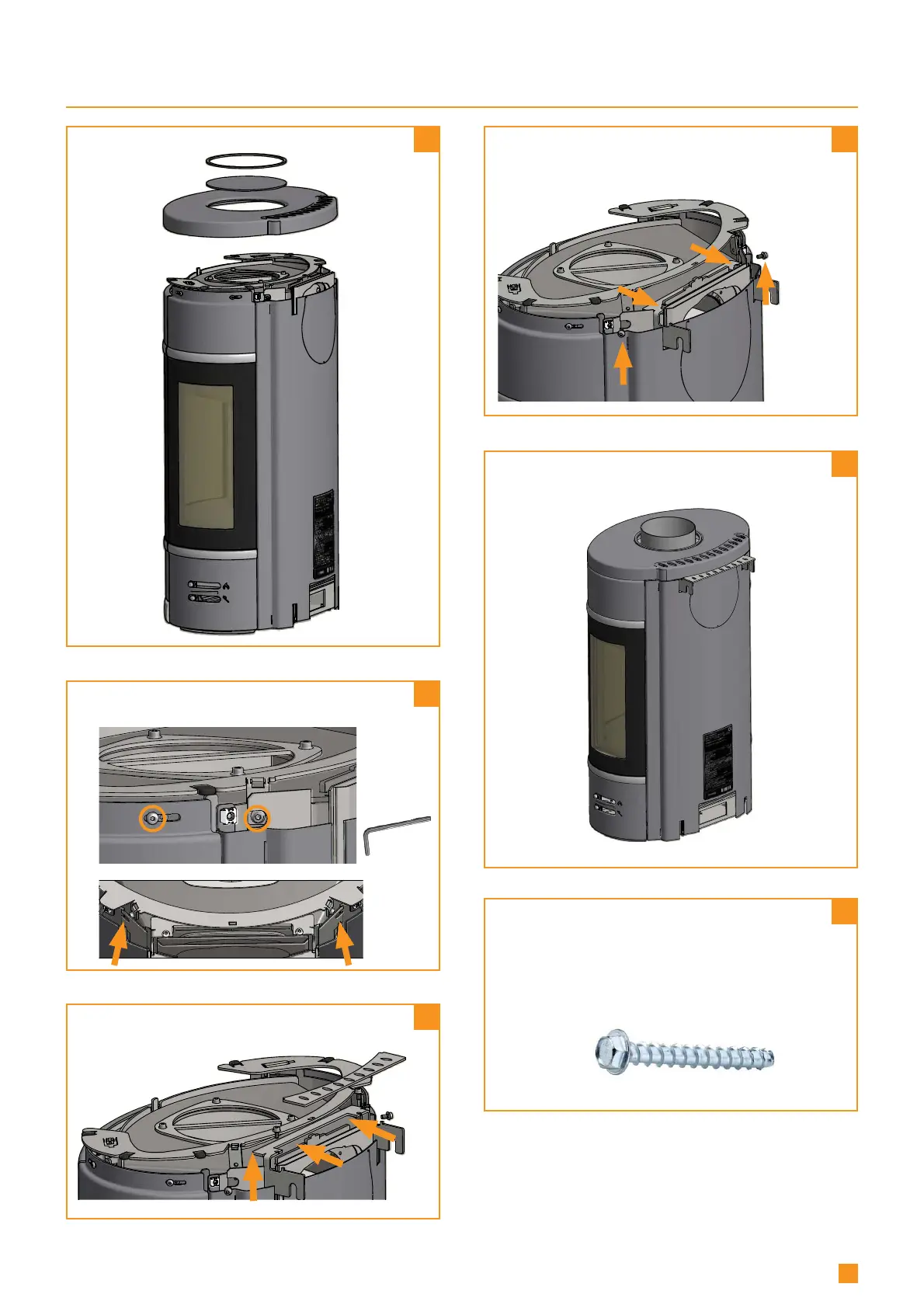

MOUNTING OF THE WALL FITTING ON THE STOVE
Fasten the fitting with two screws.
Remount the guide plate with the two screws
Remove the top plate
Remove the two screws as shown below
Mount the top plate and the decor grid
