20
Min. 268 mm
511 mm
169 mm
xx
7 8
10
9
Min. 317 mm
Min. 510 mm
Min. 647 mm
Min. 845 mm
677,5 mm

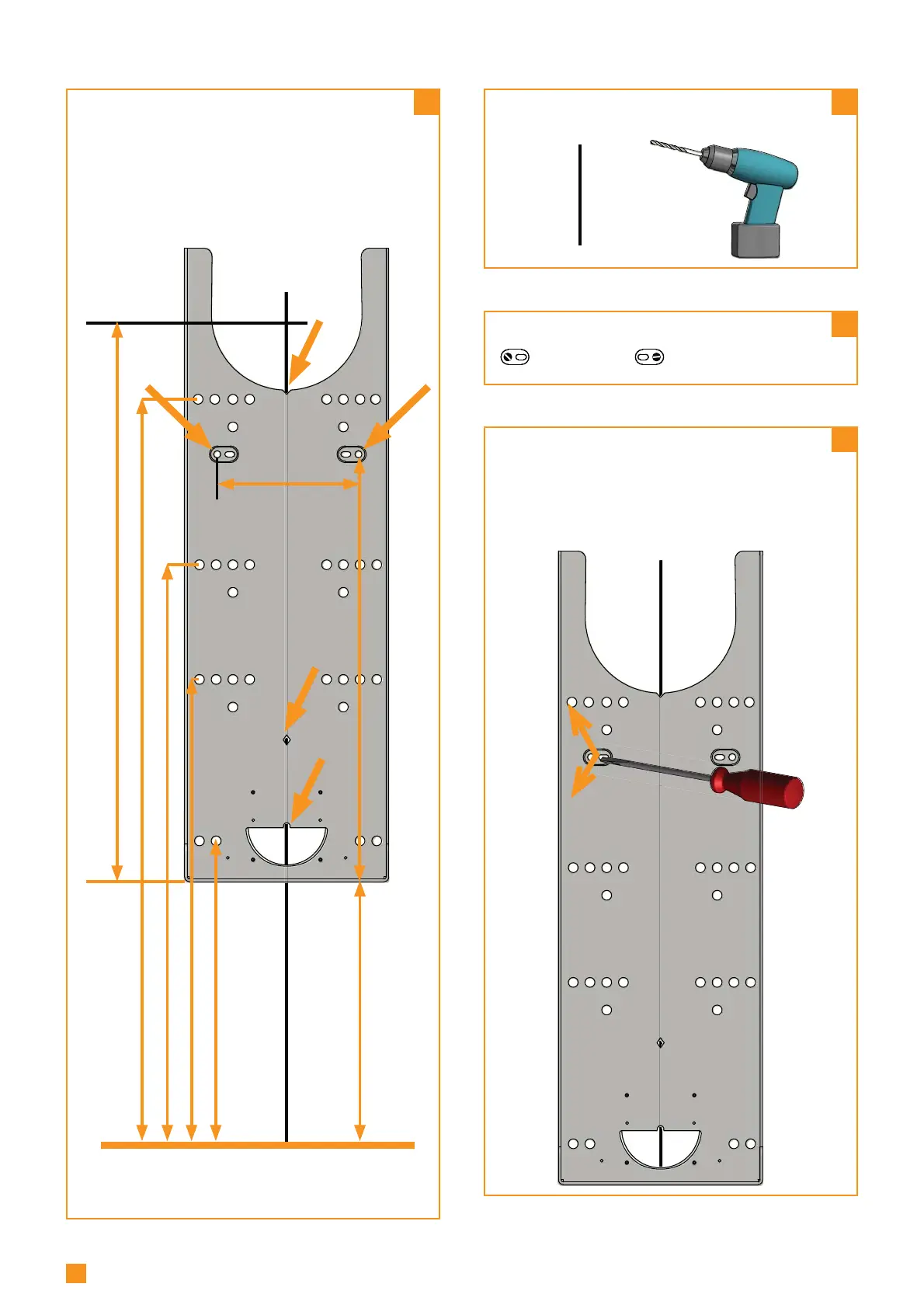

Draw a vertical line on the wall
(you can use a spirit level).
Use this line for the mounting of the wall fitting
Measure from the vertical line and drill the holes
Use the guide blocks to hold the wall fitting while
adjusting it.
Use the line or a spirit level.
Drill the necessary holes and mount the screws
(Continued on next page)
Mount the two guide blocks
