#SC 40RT 06 – 101027Page 14 of 44

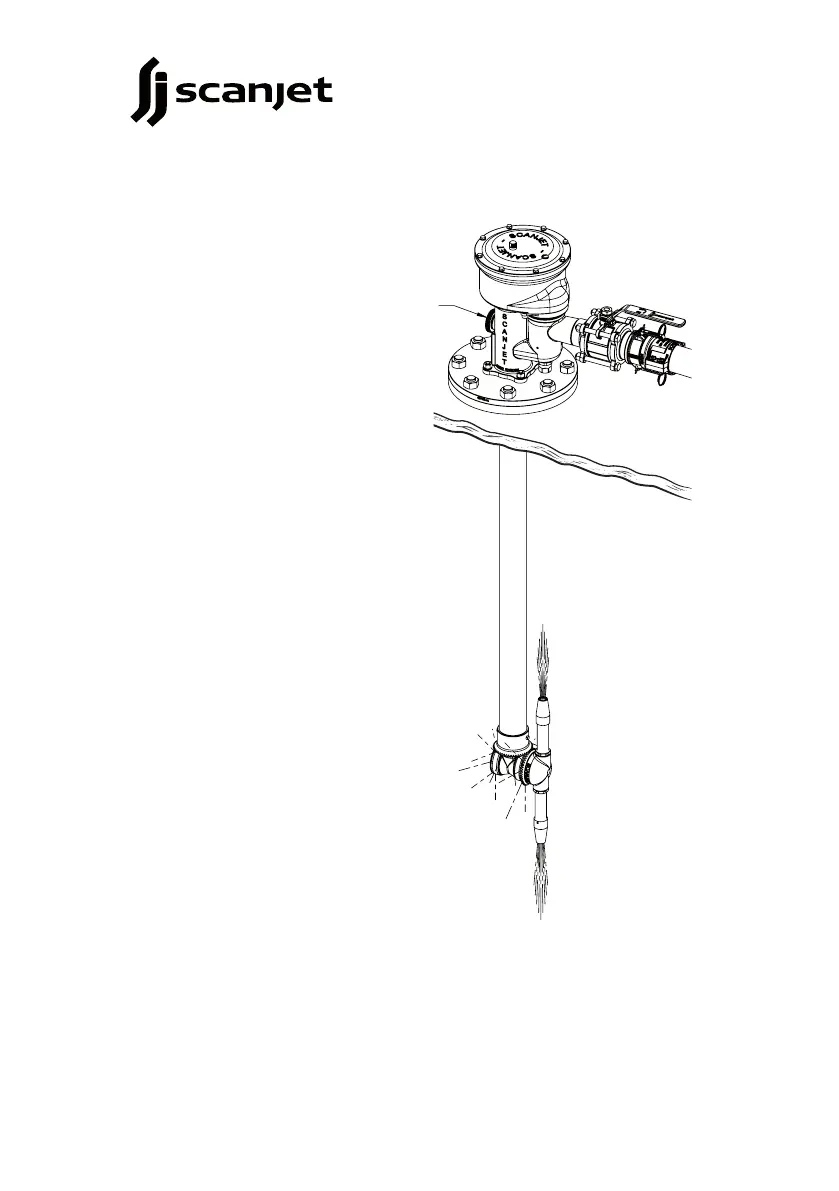

7.3. During Operation
The cofferdam plug should be
mounted during cleaning at all
times. Would there be any leakage
at the tank cleaning machine the
cofferdam plug prevent the cleaning
media from leaking outside the
machine.
If leakage is detected seals inside
the machine have to be changed.
NOTE! That leakage at the nozzle
housing is normal and necessary
to fl ush the Tefl on bearings. Dur-
ing cold water rinsing the leakage is
considerably higher then during hot
water rinsing.
Designer
Date
Date
Drawer
Surface treatment
Weight
Note
Dimension
Material
General Tolerances
Tolerance ISO 2768-m
Gen. surface
N9
This document is our property and shall not without our
permission in writing be altered, copied, used for manu-
facturing or communicated to any person or company.
Drawing no. / Ritningsnr.
Format
SC40RT
A4
Scale
SC40RT
1:7
SC40RT
Denna handling är vår egendom och får ej utan vårt
skriftliga medgivande ändras, kopieras, användas för
tillverkning eller delges annan person eller rma.
SS-ISO 2768-m for machined parts
(30)-120=
0.3
0.5-3=
0.1 (120)-315=
0.5
(3)-30=
0.2 315)-1000=
0.8
P03.1
Törnedalsgatan 1, 275 21 Sjöbo
SWEDEN
ML
Revision
05-04-19
E
No.
Revision note
Date
Sign.
Qty.
Ins.
SC40RT
gram
A
