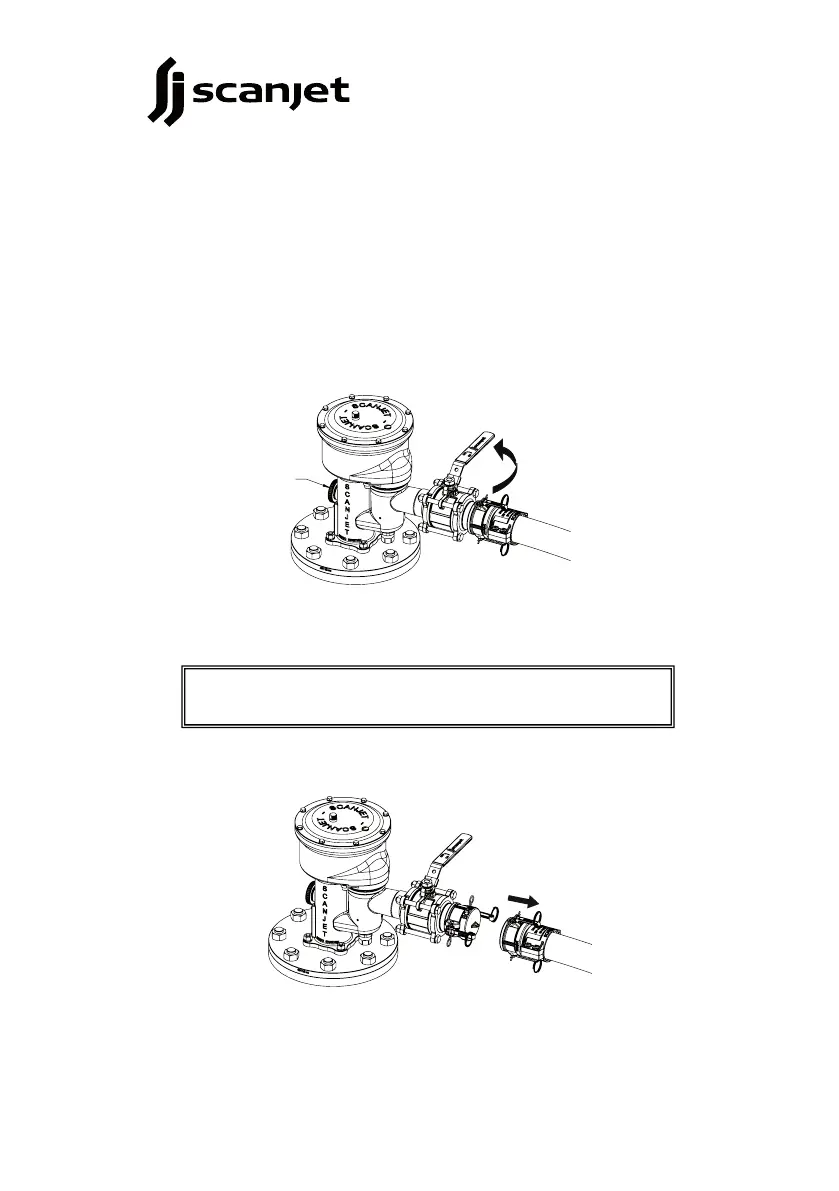

7.4. Closing Down
When the cleaning operation is fi nalized the following should be done.
1. Depending on the type of cleaning that is being performed and the type
of cleaning solution used, a procedure for after use fl ushing of the cleaning
system should be developed for your application. In general, a fresh water
fl ush is recommended after each cleaning.
2. Close the main valve, which will end the cleaning and stop the drive unit.
3. Open the cofferdam plug (A) and inspect for leakage.
4. Disconnect the hose and remount the dust cap.
