Before starting to use the auto feed, a feeding depth should be set.
The drilling depth is adjusted as follows:

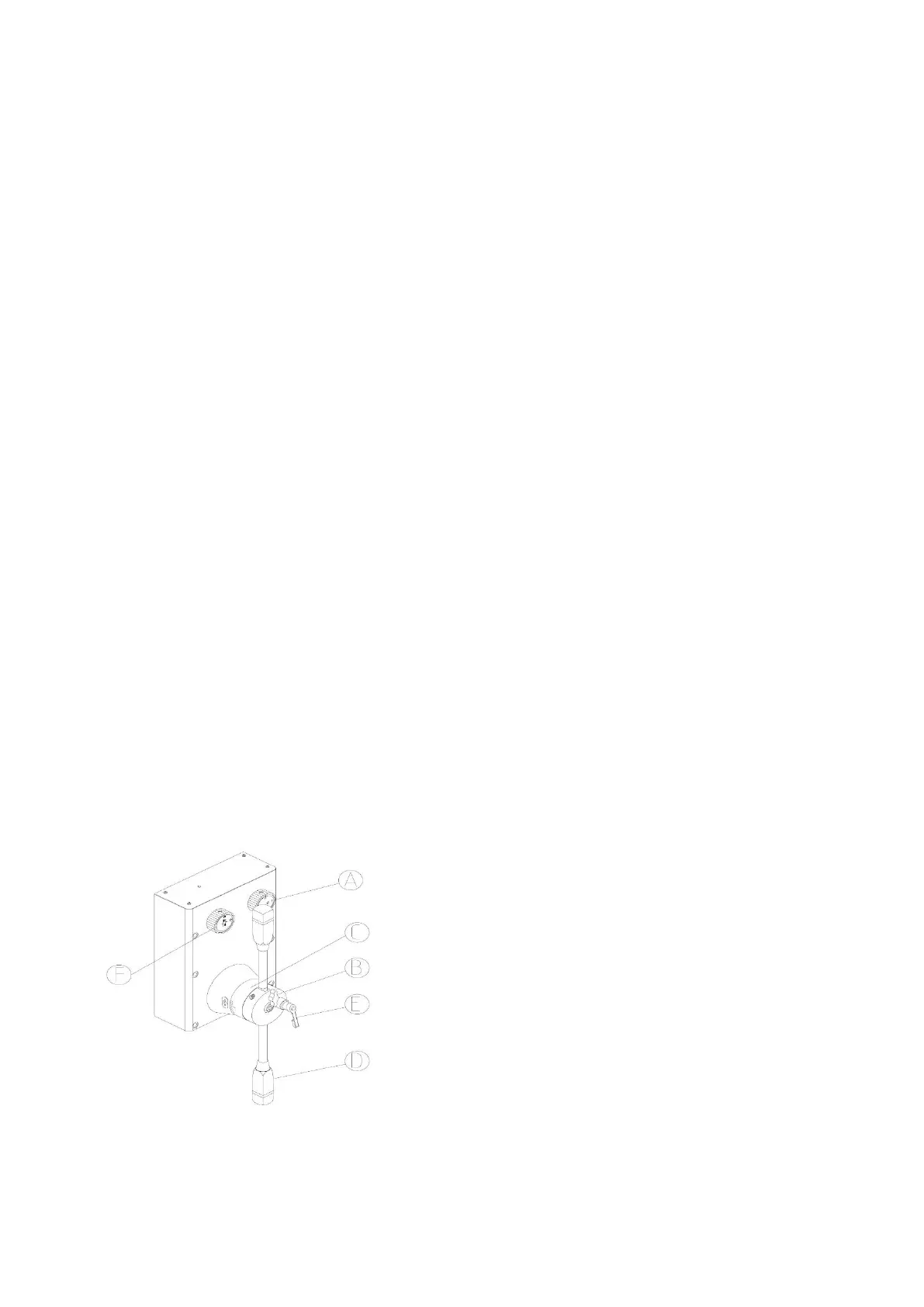

1. To engage the power feed, you have to turn the shift dial (F) on the side of the auto gearbox.
2. Select a profitable spindle speed and automatic feeding rate, according to the cutting
conditions. By adjusting the shift dial (A), you can obtain the feed rate you need.
3. FEEDING DEPTH SETTING:
First release the dial fix-nut (E) and turn the indicating ring (C) to the desired depth.
Then tighten the dial fix-nut (E) again.
CAUTION: DO NOT LET THE FEEDING DEPTH EXCEED THE SPINDLE STROKE, AS THIS MIGHT
HARM THE MACHINE.
4. START FEEDING
Start the machine and pull out the handle rod (D), now the spindle will feed down
automatically, until the depth you set, is reached.
5. END OF AUTO FEEDING
The spindle will return to the top position, when reaching the depth, you set. If there should
be a need to disengage the auto feed during the feeding process, push back the handle rod
(D) to its original position, and the auto feed will stop, and the spindle will return to the top
position.
6. To prevent danger, when the auto feed is not intended to be used, please lock the handle
(B) well. This prevents that you can activate the auto feed.
