Schaller Automation VN/87 EMC Series User Manual

29

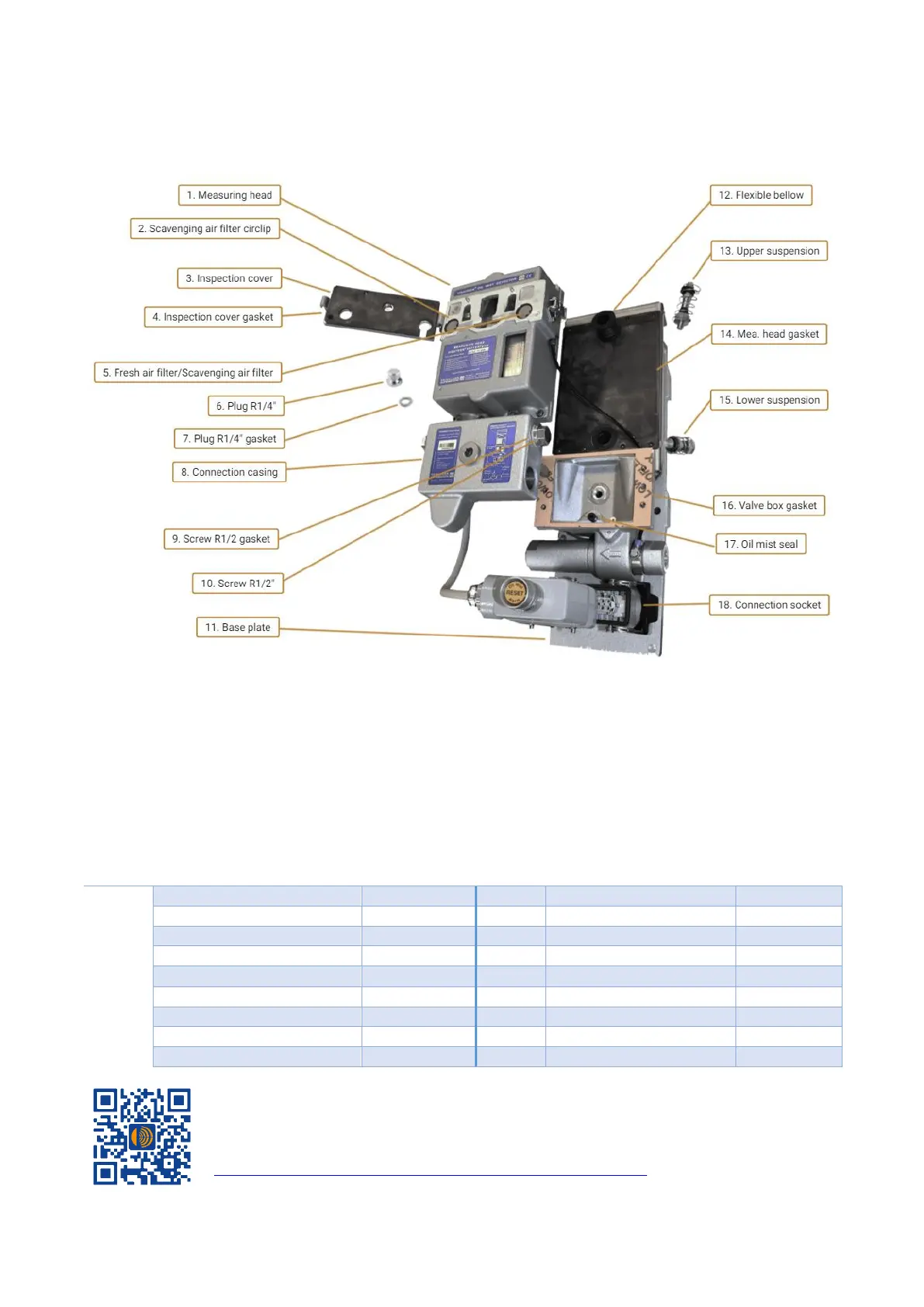

Visatron VN115/87plus
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-115-87plus/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:
1
Measuring head
11651 | 11651R
10
Screw R1/2”
10208
2
Scavenging air filter circlip
10041 | 365198
11
Base plate
10604 | 10604R
3
Inspection cover
10798 | 270412
12
Flexible bellow
10023 | 365193
4
Inspection cover gasket
10166 | 355336
13
Upper suspension
10018 | 200211
5
Fresh air filter/Scavenging air filter
10042 | 365197
14
Mea. Head gasket
10022 | 330482
6
Plug R1/4”
10083
15
Lower suspension
10019 | 200212
7
Plug R1/4” gasket
10082
16
Valve box gasket
10045
8
Connection casing
11652 | 11652R
17
Oil mist gasket
10206 | 360136
9
Screw R1/2” gasket
10209 | 365280
18
Connection socket
11004
