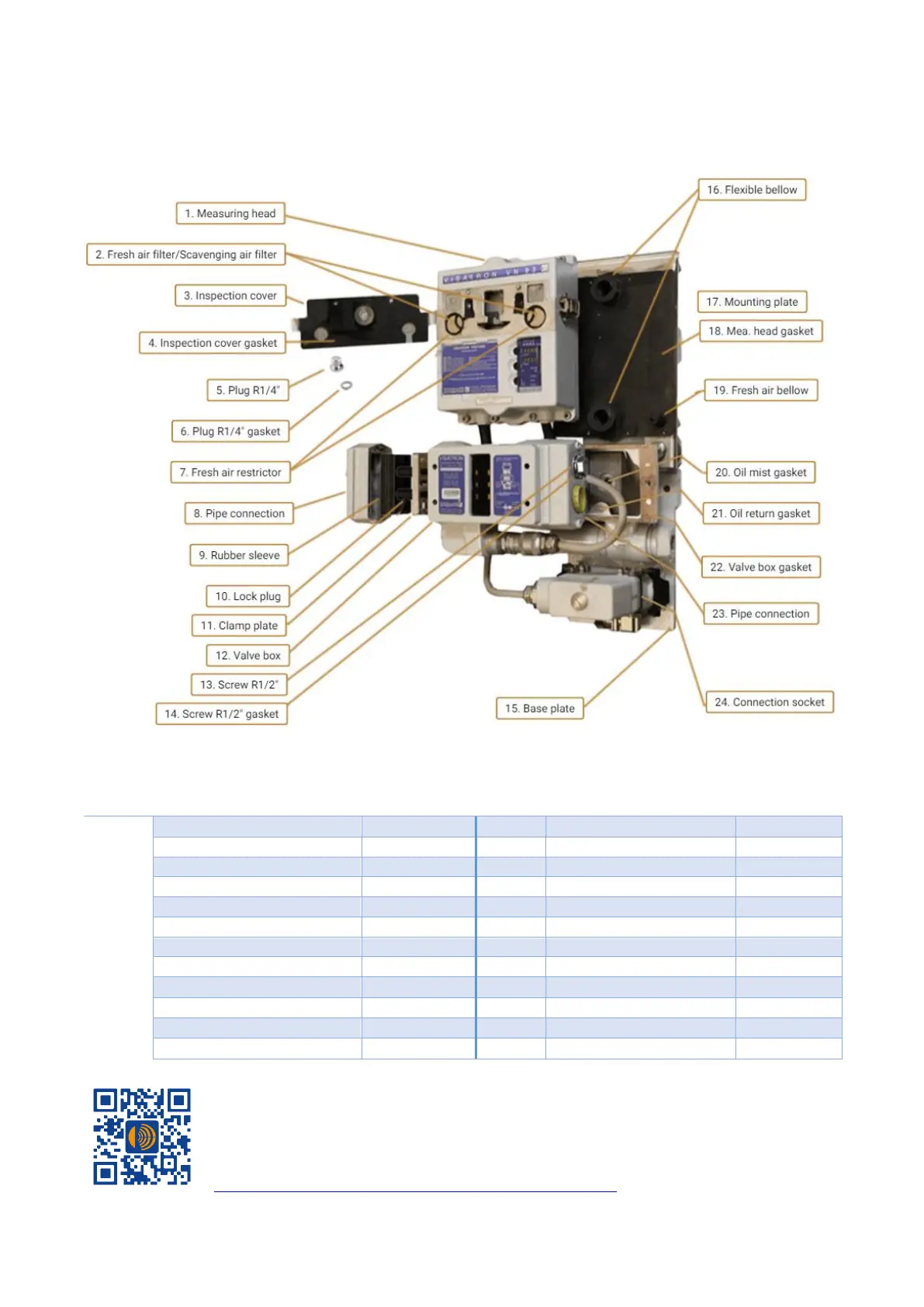

Visatron VN215/93
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-21593/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:
1
Measuring head
11901 | 11901R
13
Screw R1/2”
10208
2
Fresh air filter/Scavenging air filter
10042 | 365197
14
Screw R1/2” gasket
10209 | 365280
3
Inspection cover
10798
15
Base plate
10904 | 10904R
4
Inspection cover gasket
11180
16
Flexible bellow
10023 | 365193
5
Plug R1/4”
10083
17
Mounting plate
10991
6
Plug R1/4” gasket
10082
18
Mea. head gasket
10969
7
Fresh air restrictor
10992
19
Fresh air bellow
10990
8
Pipe connection
10430
20
Oil mist gasket
10407
9
Rubber sleeve
10411
21
Oil return gasket
10406
10
Lock plug
10412
22
Valve box gasket
10405 | 330721
11
Clamp plate
10409
23
Pipe connection
10408
12
Valve box
10902 | 10902R
24
Connection socket
10905
