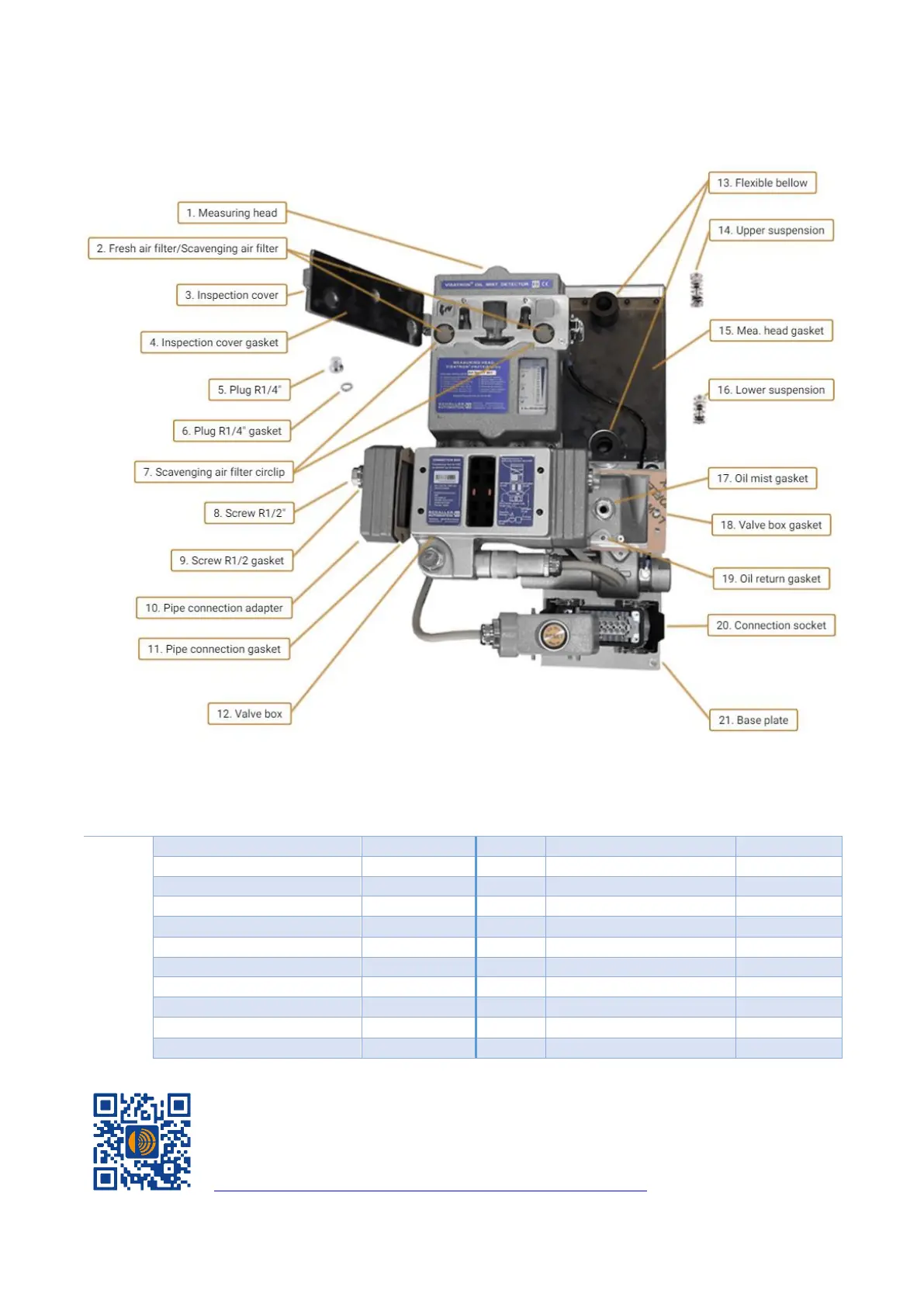

Visatron VN116/87plus
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-116-87plus/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:
1
Measuring head
11751 | 11751R
12
Valve box
11752 | 11752R
2
Fresh air filter/Scavenging air filter
10042 | 365197
13
Flexible bellow
10023 | 365193
3
Inspection cover
10798 | 270412
14
Upper suspension
10018 | 200211
4
Inspection cover gasket
10166 | 355336
15
Mea. head gasket
10022 | 330482
5
Plug R1/4”
10083
16
Lower suspension
10019 | 200212
6
Plug R1/4” gasket
10082
17
Oil mist gasket
10307
7
Scavenging air filter circlip
10041 | 365198
18
Valve box gasket
10405 | 330721
8
Screw R1/2”
10208
19
Oil return gasket
10306
9
Screw R1/2” gasket
10209 | 265280
20
Connection socket
11004
10
Pipe connection adapter
10312
21
Base plate
11076 | 11076R
11
Pipe connection gasket
10313
