Schaller Automation VN/87 EMC Series User Manual

31

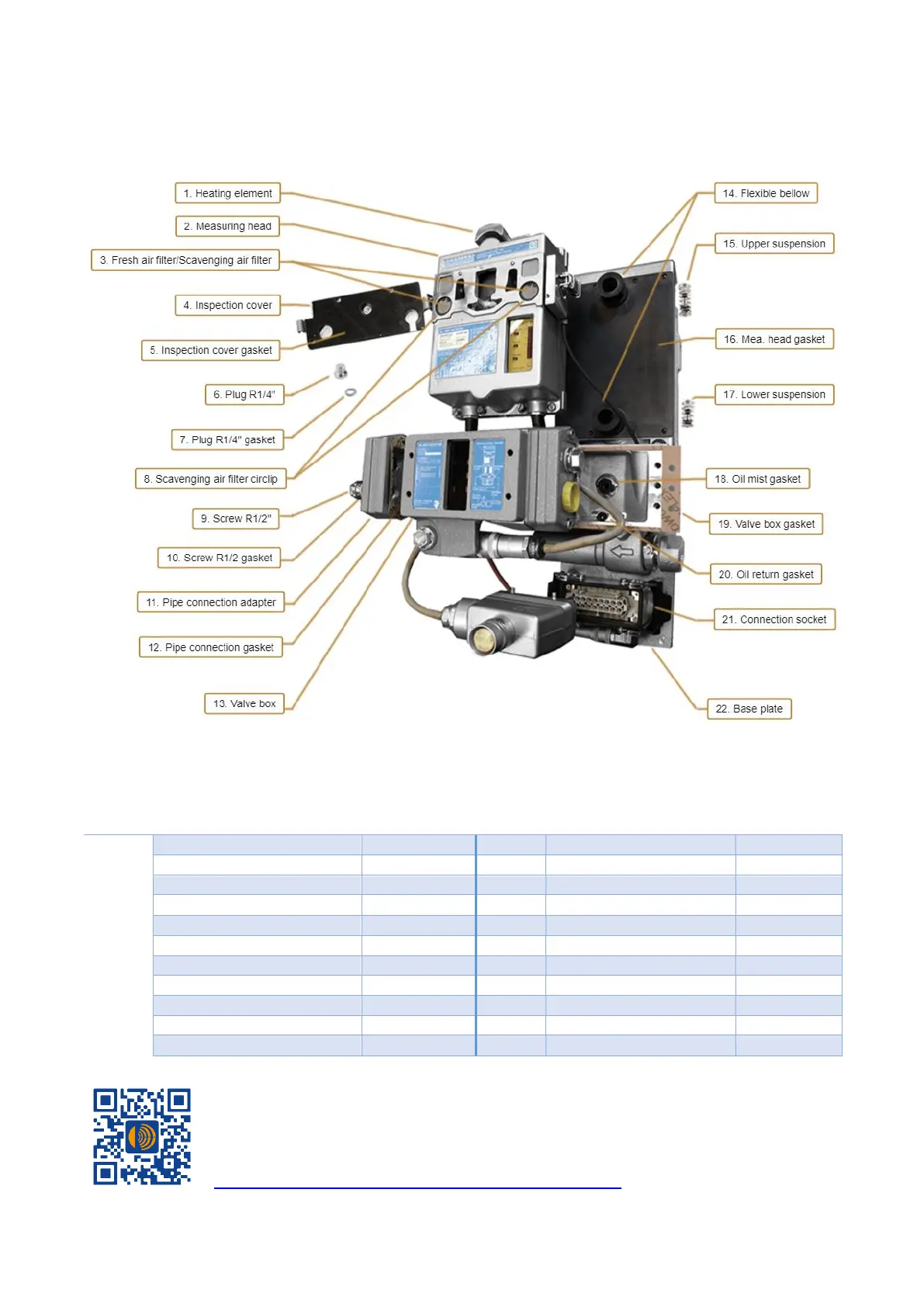

Visatron VN116/87 EMC
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-116-87/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:
1
Heating element
10671 | 270765
12
Pipe connection gasket
10313
2
Measuring head
10706 | 10706R
13
Valve box
10302 | 10302R
3
Fresh air filter/Scavenging air filter
10042 | 365197
14
Flexible bellow
10023 | 365193
4
Inspection cover
10798 | 270412
15
Upper suspension
10018 | 200211
5
Inspection cover gasket
10166 | 355336
16
Mea. head gasket
10022 | 330482
6
Plug R1/4”
10083
17
Lower suspension
10019 | 200212
7
Plug R1/4” gasket
10082
18
Oil mist gasket
10307
8
Scavenging air filter circlip
10041 | 365198
19
Valve box gasket
10405 | 330721
9
Screw R1/2”
10208
20
Oil return gasket
10306
10
Screw R1/2” gasket
10209 | 365280
21
Connection socket
10033
11
Pipe connection adapter
10312
22
Base plate
10708 | 10708R
