Schaller Automation VN/87 EMC Series User Manual

35

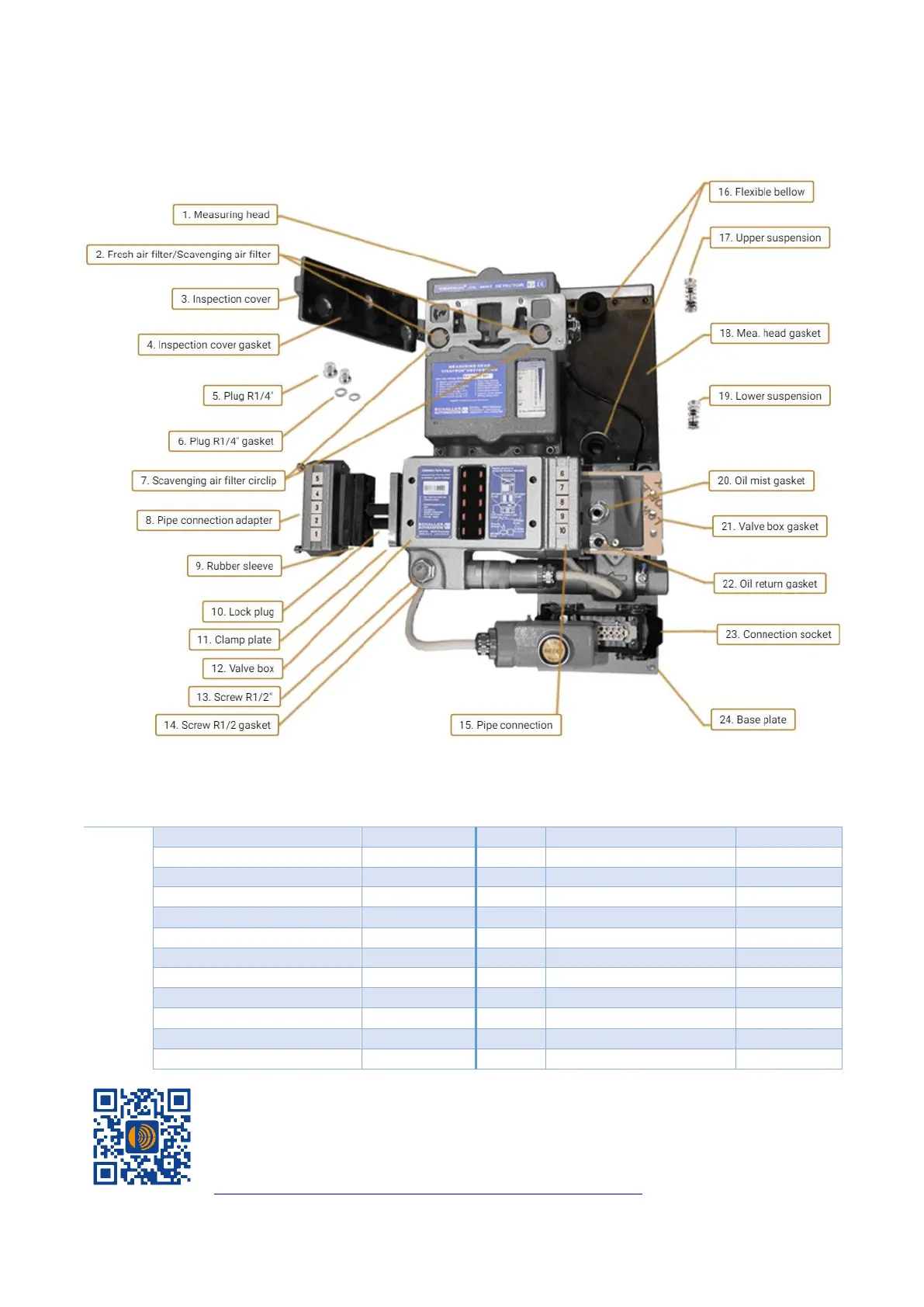

Visatron VN215/87plus
For more information:
https://www.epp.no/spare-parts/spare-part-for-visatron-vn-21587plus/
Position:
Part name:
Part no.:
Position:
Part name:
Part no.:
1
Measuring head
11851 | 11851R
13
Screw R1/2”
10208
2
Fresh air filter/Scavenging air filter
10042 | 365197
14
Screw R1/2” gasket
10209 | 365280
3
Inspection cover
10798 | 270412
15
Pipe connection
10408
4
Inspection cover gasket
10166 | 355336
16
Flexible bellow
10023 | 365193
5
Plug R1/4”
10083
17
Upper suspension
10018 | 200211
6
Plug R1/4” gasket
10082
18
Mea. head gasket
10022 | 330482
7
Scavenging air filter circlip
10041 | 365198
19
Lower suspension
10019 | 200212
8
Pipe connection adapter
10430
20
Oil mist gasket
10407
9
Rubber sleeve
10411
21
Valve box gasket
10405 | 330721
10
Lock plug
10412
22
Oil return gasket
10406
11
Clamp plate
10409
23
Connection socket
11004
12
Valve box
11852 | 11852R
24
Base plate
