Instruction Man u al Instrument Panels IT 96-A, IT 96-2
3
Issued: 26.11.2007
830.636 BA / EN
Y
DANGER!
Incorrect installation!
Electric shock or damage to connected devices:
F
Install as shown in installation instructions.
Y
W ARNING!
Hot components!
Burns:
F
Blown fuses may only b e exchanged once the system has been di-
sconnected from the power supply.
F
Blown fuses may only be replaced once the cause of the fault has
been identified and rectified.
F
Never bypass or repair fuses.
F
The rear of the device may become hot during operation. Do not
touch.
F
Only use original fuses rated as specified on the device.
3 Application and function
The instrument panel IT 96 A / IT 96-2 is the central operating unit for the
EBL electrobloc ... , which supplies all 12 V consumers in the electrical sy-
stem on board of the motorhome. It is usually installed in an easily accessi-
ble spot that is high up near the door of the motorhome.
EBL ...
+--
+--
Instrument -
Electrobloc
230 V AC
12V consumer
Leisure battery
Starter battery
Lighting
Pump
Heater
etc.
LR ...
Solar control
(accessory)
LAS...
Auxiliary charger
(accessory)
panel IT 96 A/
Solar cell
(accessory)
IT 96-2

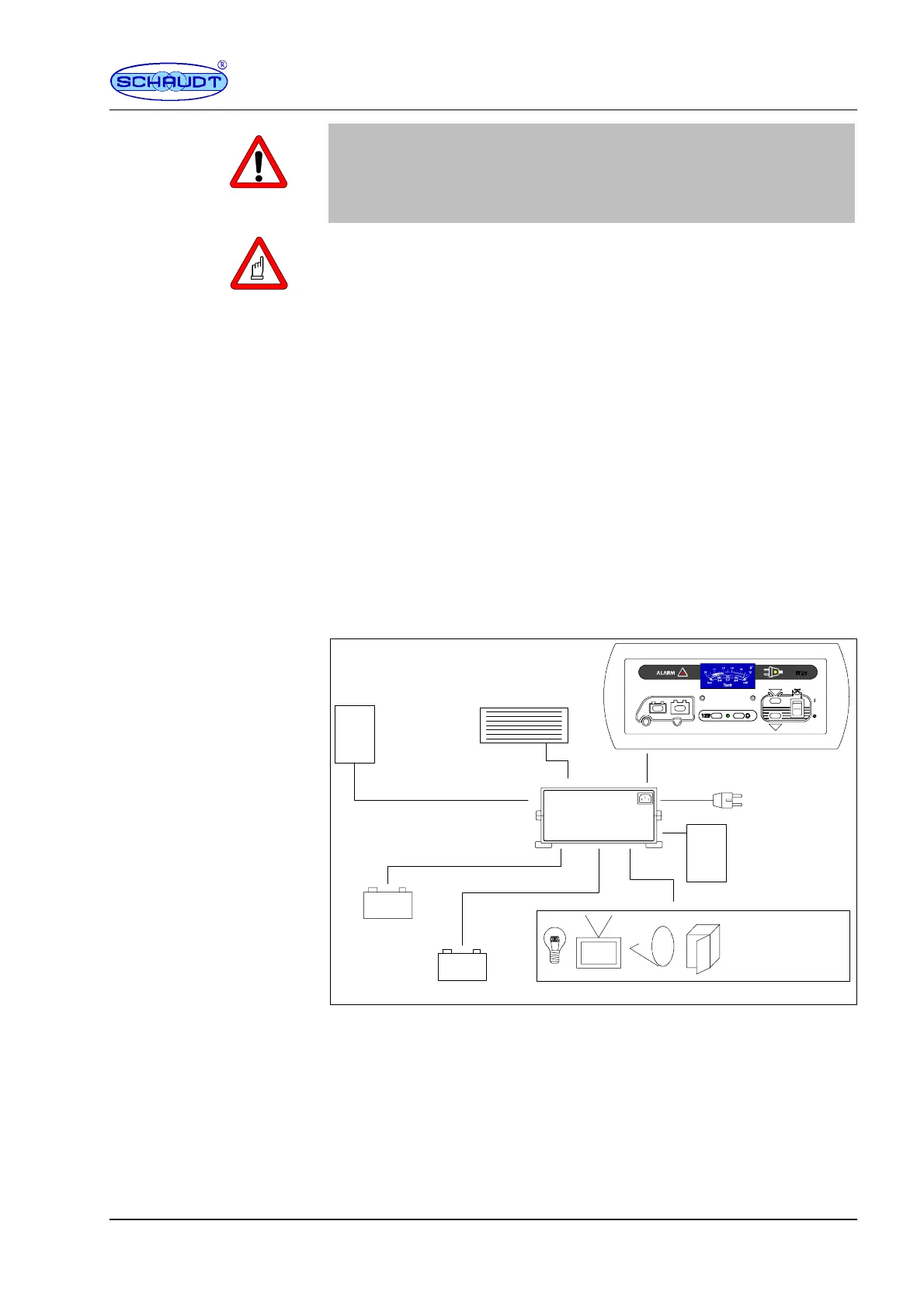

Fig. 1 Onboard power supply system
The instrument panel contains:
F
A backlit display instrument
F
T wo operator keys to switch on and of f the 12 V power supply.
F
Operator keys for checking the battery voltages and tank fill levels
F
Switch for the supply voltage of the water pump
F
LEDs for mains indicator and alarm signalling
