Instruction Man u al Instrument Panels IT 96-A, IT 96-2
6
Issued: 26.11.2007 830.636 BA / EN

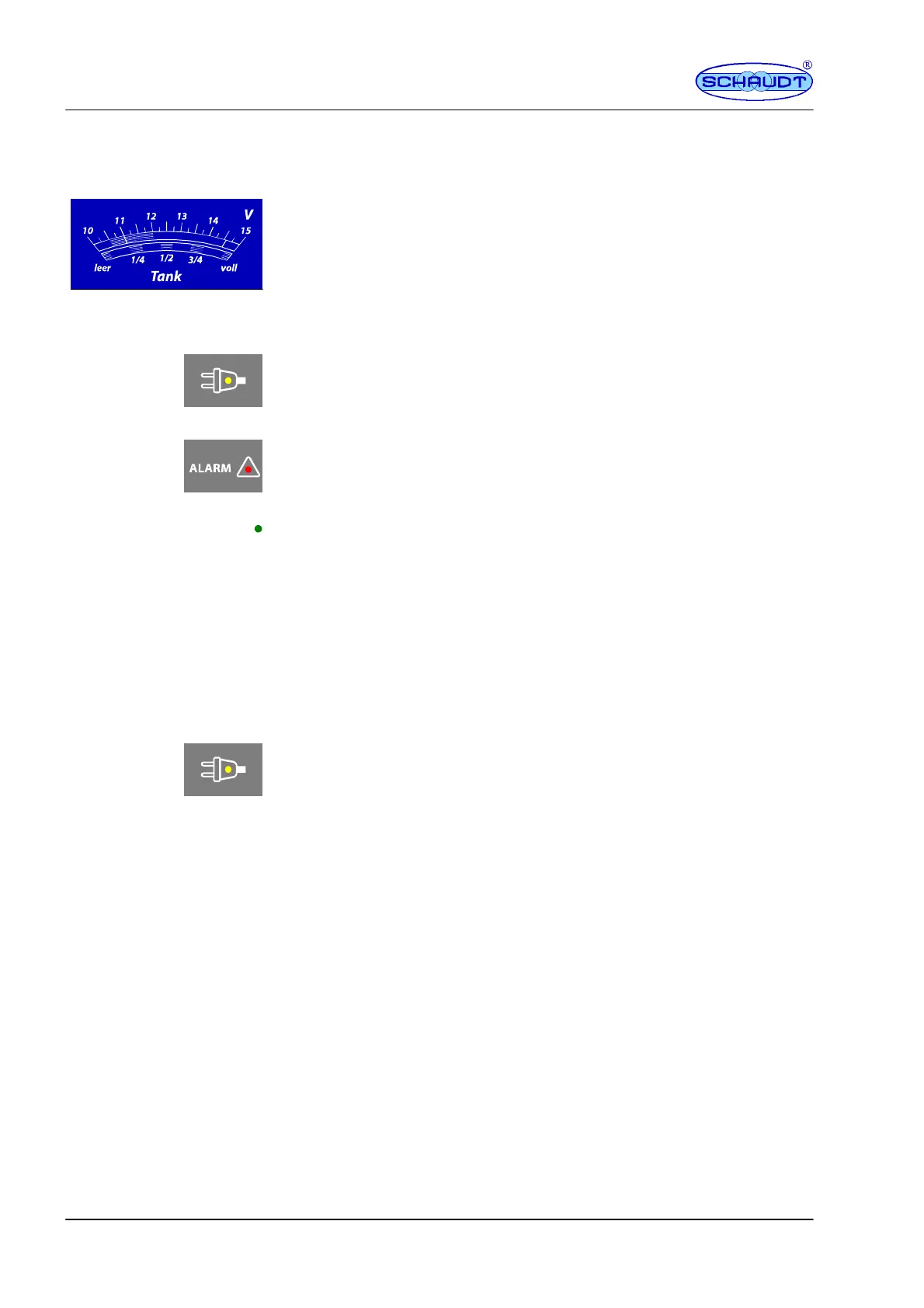

5.2 Display co n t rols
The instrument panel IT 96 A / IT 96-2 has the following operating controls:
Backlit display instrument
Display of battery voltage between 10 V and 15 V (upper scale)
Display of the tank fill level in five steps (lower scale):
F
empty, 1/4, 1/2, 3/4, full
The instruments light up automatically when pressing buttons.
LED mains indicator (yellow)
The yellow LED lights up when mains voltage is present at the input of the
electrobloc (see also instruction manual EBL ... electrobloc Chapter ”Starting
up”).
Alarm LED (red)
W arning about draining the leisure battery.
Indicator LED (green)
Indicat es that the system is switched on.
5.3 Starting up
"
T urn battery disconnecting switch at EBL ... electroblock into ”ON” posi-
tion.
"
Switch on instrument panel IT 96 A / IT 96-2 (see Chapter 5.4).
"
Plug in the 230 V main supply.
LED mains indicator lights up. The batteries will then be charged.
5.4 Switching on
Switch the 12 V supply of the living area on using the relevant button. Ex-
ceptions:
F
Heater
F
Power circuit reserve 4
F
Floor light/step
F
Compressor/AES refrigerator
These consumers are always at stand-by even with the 12 V power supply
switched off.
230V mains operation
