Instruction Man u al Instrument Panels IT 96-A, IT 96-2
4
Issued: 26.11.2007 830.636 BA / EN
An EBL ... electrobloc must be installed to operate the system. This provides
the 12 V supply to the various devices in the motorhome or caravan and
also recharges the leisure and starter batteries.
The following connection options are available:
F
EBL ... electroblock
F
Sensors and/or probe for water tank
F
Sensors and/or probe for sewage tank
F
W ater pump
The instrument panel IT 96 A / IT 96-2 has the task of switching the 12 V
supply for the living area on and off and of displaying various measured va-
lues.
The following data can be displayed:
F
Voltage in the leisure battery
F
Voltage in the starter battery
F
Tank filling levels
F
Battery alarm
F
Power supply
4 Design
The instrument panel is flash-mounted in a cabinet or wall.
1
2

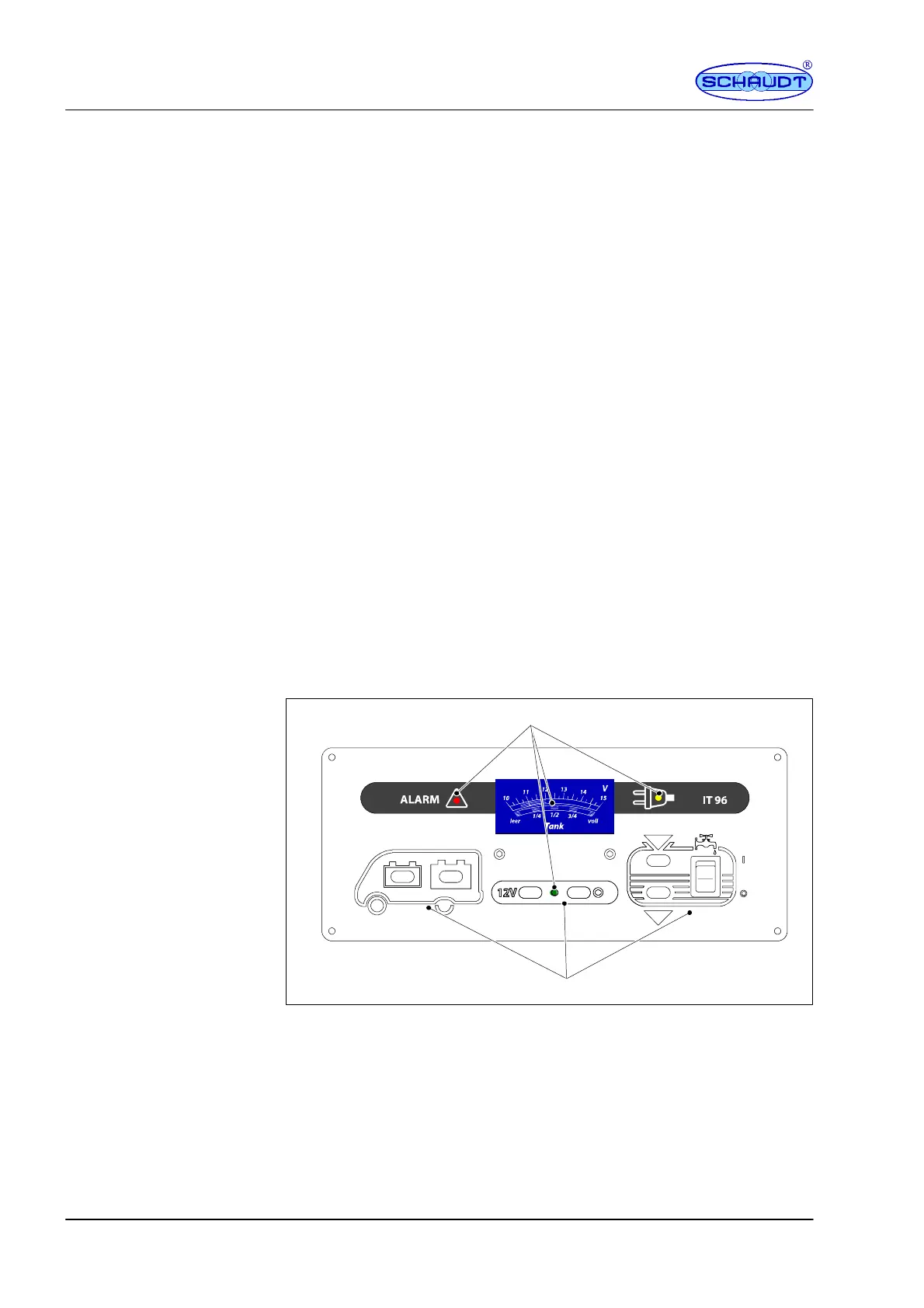

Fig. 2 Design of instrument panel IT 96 A
1 Display controls
2 Control panels
System devices
Display functions
