Scheppach HS120 Translation From Original Manual

10

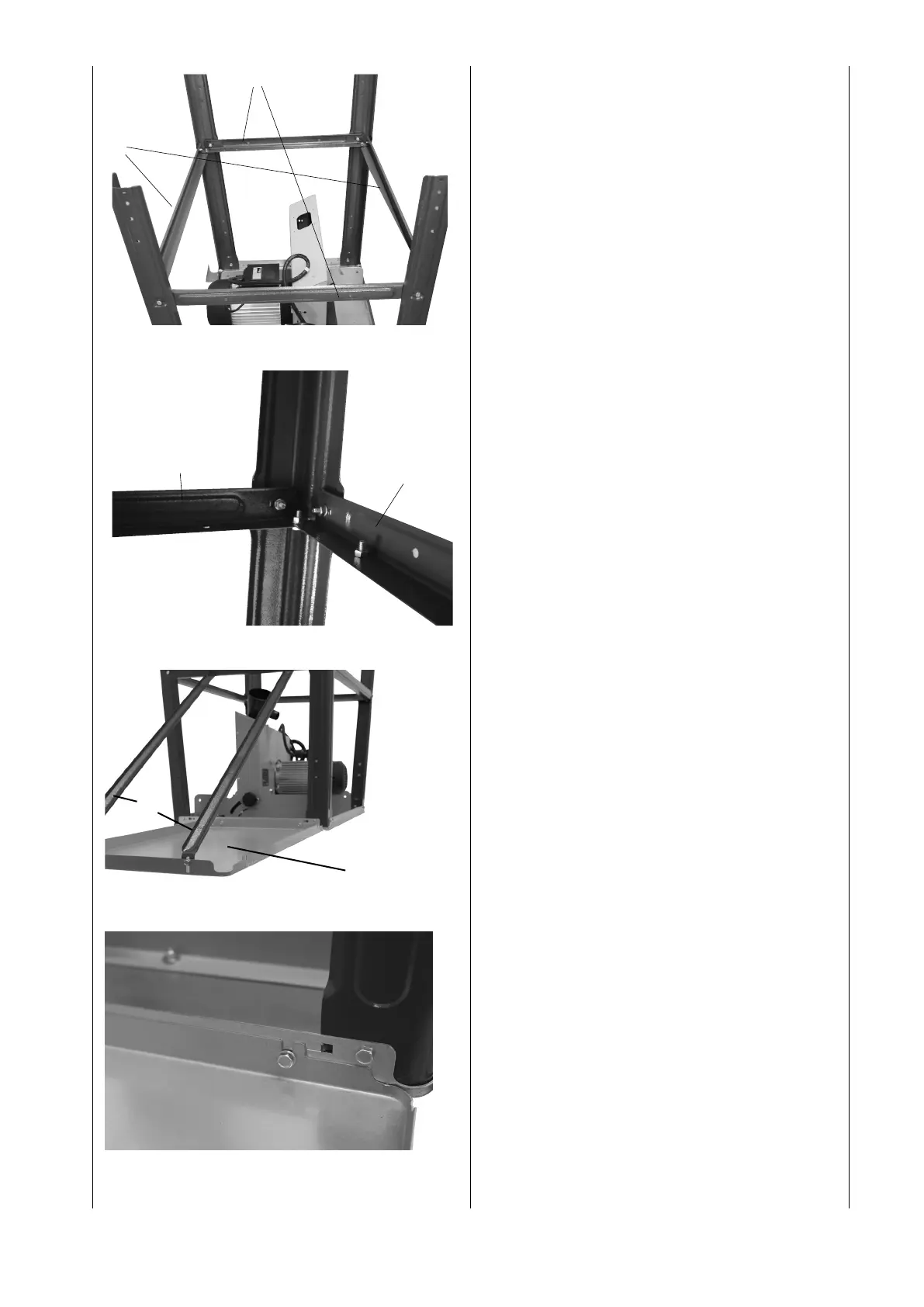

Fig. 6 / 6.1
Fasten 2 longitudinal braces (10) and 2 cross braces (9)
onto the base legs (2, 3,4 and 5) using 12 hexagon bolts
M6 x 16, 12 washers 6, and 12 nuts M6.
Fig. 7 / 7.1 / 7.2 / 7.3 / 7.4
The table extension plate (8) has to be mounted parallel
to the table top on the motor side of the machine. Fasten
the table extension plate (8) with 2 braces (11) and cross
brace to the table top using 6 hexagon bolts M6 x 16, 6
washers 6, and 6 nuts M6. The open slots of the table
extension have to be fixed at the table top while braces
(11) have to be fixed at at the enlongated holes of the
table extension.
Tighten the bolts slightly by hand. The table length exten-
sion (8) can also be used as table width extension by fit-
ting it to the side with the shorter extended braces. (Fig.
7.4)
Fig. 6.1
10
9
11
8
Fig. 7
Fig. 7.1
Fig. 6
9
10

Scheppach HS120 Specifications

General

Idle speed	- RPM
Cutting height @ 45°	49 mm
Cutting height @ 90°	83 mm
Product color	Blue, Stainless steel
Placement supported	Freestanding
Input power	2000 W
AC input voltage	230 V
AC input frequency	50 Hz
Saw blade type	Single
Number of teeth	24
Saw blade included	Yes
Number of saw blades	1

Weight and Dimensions

Depth	1690 mm
Width	615 mm
Height	1055 mm
Weight	48600 g
Table depth	800 mm
Table width	550 mm
Blade diameter	315 mm
Base plate width	400 mm
Blade diameter (min)	20 mm
