Scheppach HS120 Translation From Original Manual

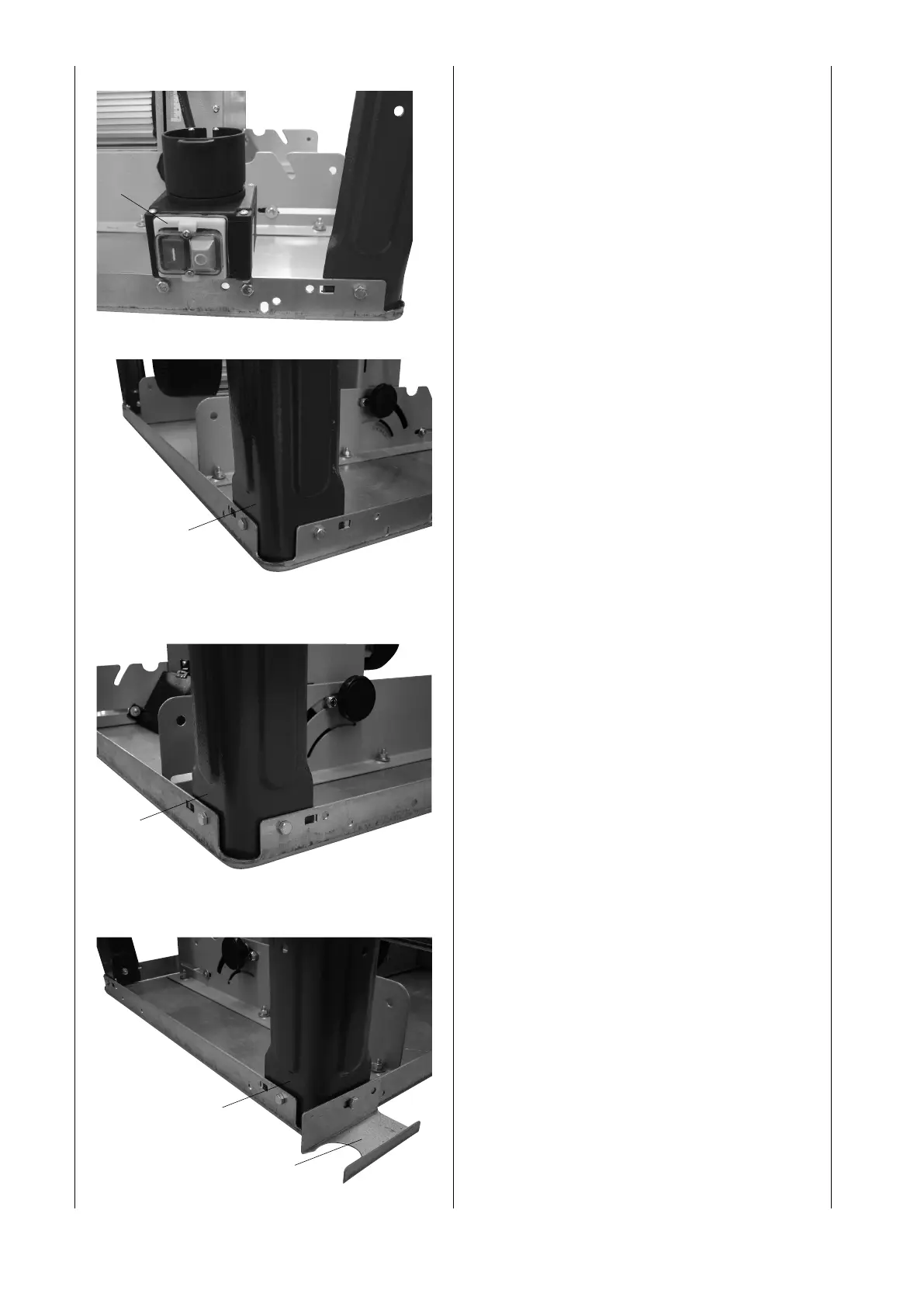

9
Fig. 2
Fasten the switch (6) to the table top using 2 hexagon
bolts M6 x 16, 2 washers 6, and 2 nuts M6.
Fig. 3
Fasten the base leg (3) to the table top using 2 hexagon
bolts M6 x 16, 2 washers 6, and 2 nuts M6. Tighten the
bolts slightly by hand.
Fig. 4
Fasten the base leg (4) to the table top using 2 hexagon
bolts M6 x 16, 2 washers 6, and 2 nuts M6. Tighten the
bolts slightly by hand.
Fig. 5
Fasten the base leg (5) and the hose holder to the table
top using 2 hexagon bolts M6 x 16, 2 washers 6, and 2
nuts M6. Tighten the bolts slightly by hand.
Fig. 2
6
Fig. 3
3
Fig. 4
4
Fig. 5
5
b

Scheppach HS120 Specifications

General

Idle speed	- RPM
Cutting height @ 45°	49 mm
Cutting height @ 90°	83 mm
Product color	Blue, Stainless steel
Placement supported	Freestanding
Input power	2000 W
AC input voltage	230 V
AC input frequency	50 Hz
Saw blade type	Single
Number of teeth	24
Saw blade included	Yes
Number of saw blades	1

Weight and Dimensions

Depth	1690 mm
Width	615 mm
Height	1055 mm
Weight	48600 g
Table depth	800 mm
Table width	550 mm
Blade diameter	315 mm
Base plate width	400 mm
Blade diameter (min)	20 mm
