Scheppach HS120 - Page 12

12

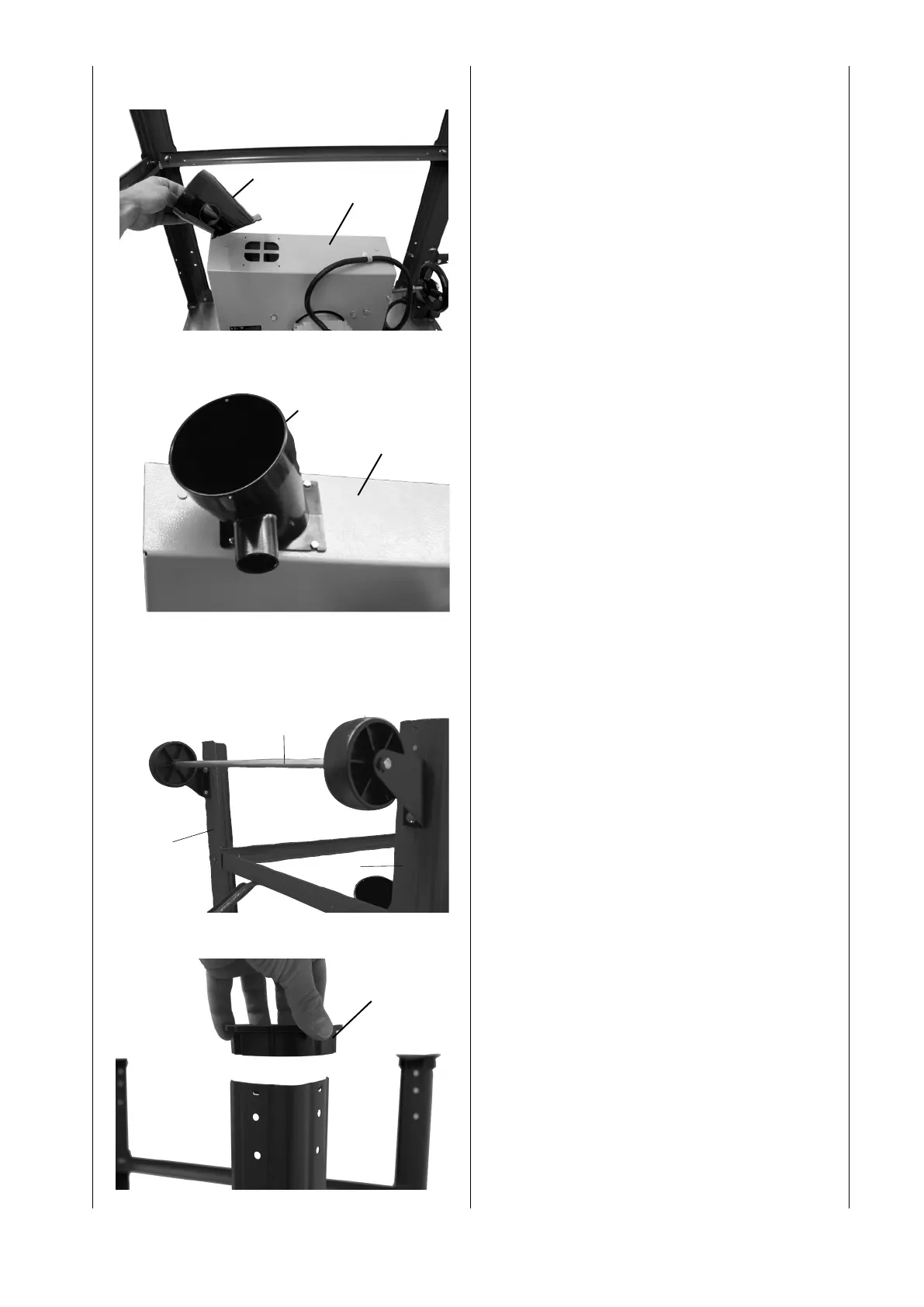

Fig. 8 / 8.1
Fasten the suction piece (14) to the lower saw blade
guard (13) using 4 hexagon bolts M4 x 10.
Fig. 9
Fasten the wheel assembly (16) to the rear base legs (4
and 5) using 4 hexagon bolts M6 x 16, 4 washers 6, and
4 nuts M6.
Tighten the bolts slightly by hand.
Now place the rubber feet (16a) onto the support legs
(fig. 9.1).
Fig. 9.1
16a
Fig. 9
4
5
16
Fig. 8.1
Fig. 8
13
14
14
13
