Scheppach HS120 Translation From Original Manual

16

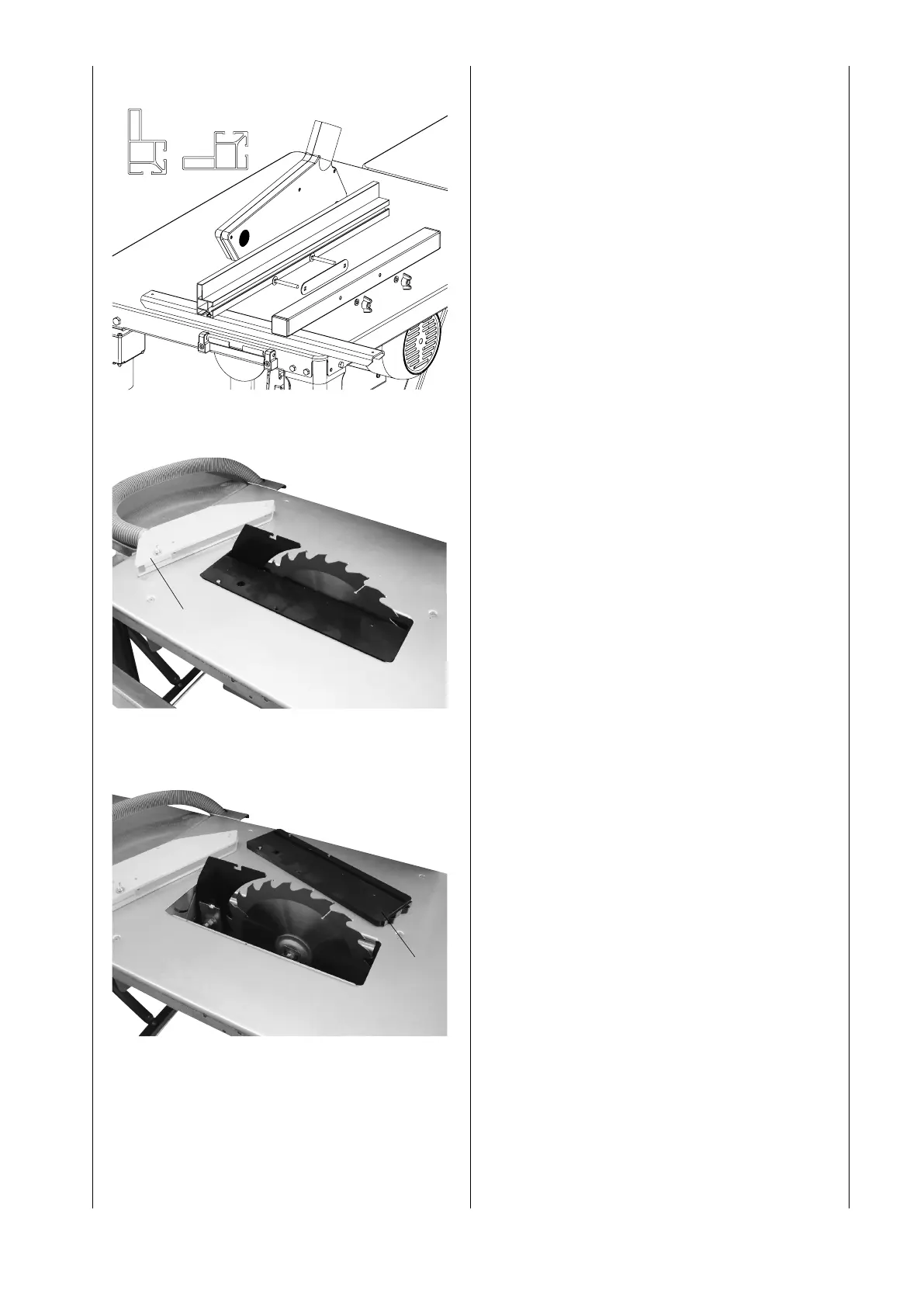

Assembly of the catch support, Fig. 18
Mount the intermediate plate to the lengthwise catch with
2 flat round screws M6 x 50, 2 screws A6, and 2 wing
nuts.
Edge the catch support onto the intermediate plat and
clip it in with wing nuts.
Legend:
1 = Upper Surface
2 = Lower Surface
To clip in, lift up the clasp. To release, push it down.
Changing the sawblade, Fig. 19
Attention: Pull the power supply plug!
Wear safety gloves when changing the saw blade. Risk of
injury!
Release the wing screw of the suction hood (20) and re-
move the hood.
Fig. 20
Release the 4 Phillips screws of the table insert (19) and
remove the insert.
12
Fig. 18
Fig. 19
20
Fig. 20
19

Scheppach HS120 Specifications

General

Idle speed	- RPM
Cutting height @ 45°	49 mm
Cutting height @ 90°	83 mm
Product color	Blue, Stainless steel
Placement supported	Freestanding
Input power	2000 W
AC input voltage	230 V
AC input frequency	50 Hz
Saw blade type	Single
Number of teeth	24
Saw blade included	Yes
Number of saw blades	1

Weight and Dimensions

Depth	1690 mm
Width	615 mm
Height	1055 mm
Weight	48600 g
Table depth	800 mm
Table width	550 mm
Blade diameter	315 mm
Base plate width	400 mm
Blade diameter (min)	20 mm
