SCHIEBEL AB3 User Manual

15 Technical data
Operating Instructions for Actuators Type AB with Control Unit
OM-ENGLISH-ABCSC.V1.2-16xx-V2.02-2023.04.27

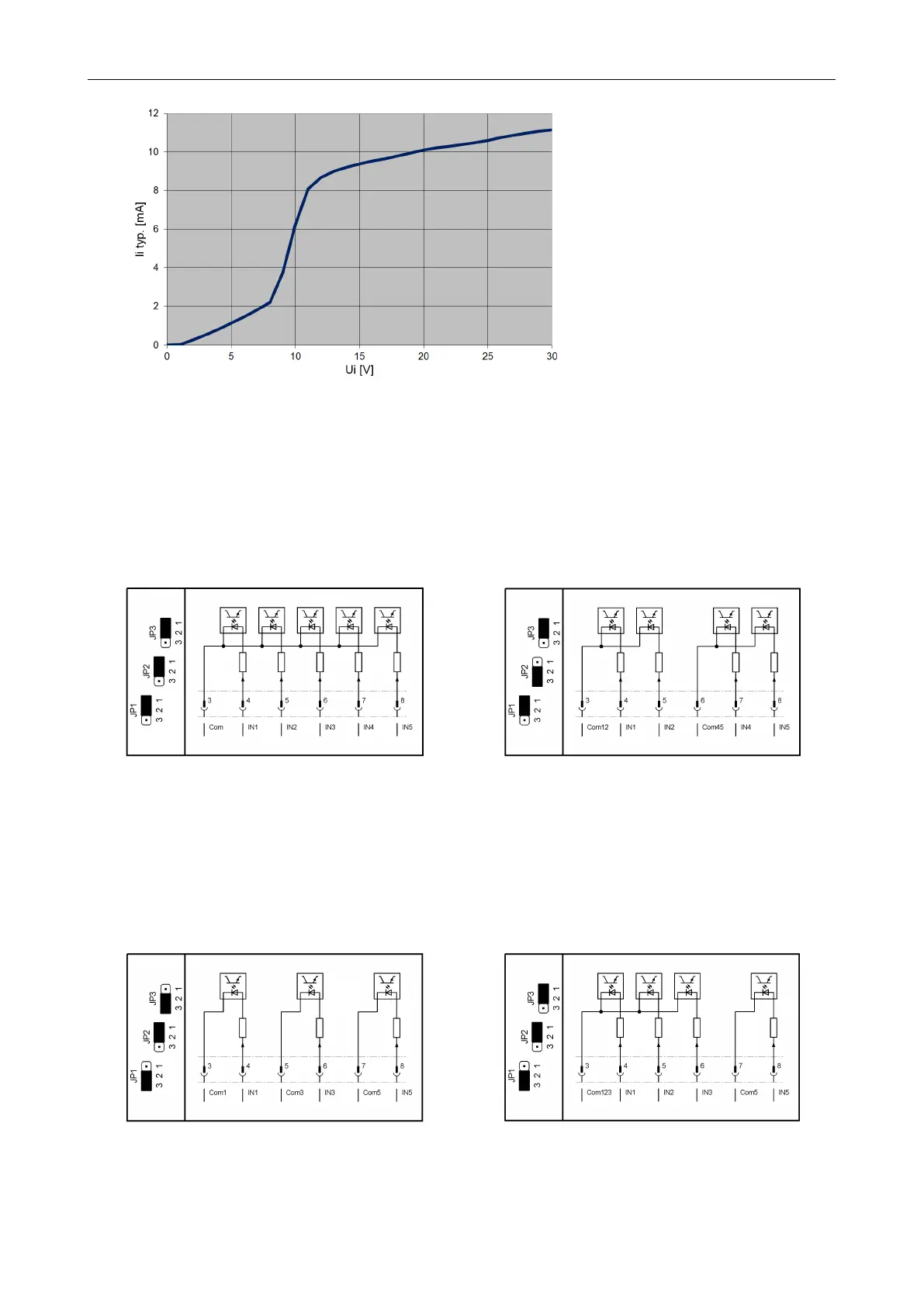

Figure 53: Binary inputs, input characteristic
Ui . . . Input voltage
Ii . . . Input current
Jumpers JP1 . . . JP3 can be used to interconnect the binary inputs to groups with separate earths:
Figure 54: 5 inputs with same common Figure 55: 2 separated groups of 2 inputs with same
ground
Input IN3 is disabled.
Figure 56: 3 separated inputs
Inputs IN2 and IN4 are disabled.
Figure 57: 3 inputs with same common and 1 sepa-
rated input.
Input IN4 is disabled.
34
