5 Commisioning
Operating Instructions for Actuators Type AB with Control Unit
OM-ENGLISH-ABCSC.V1.2-16xx-V2.02-2023.04.27
5.5 Additional components (Option)
Possibly installed additional components have to be set-up according their separately supplied technical de-
scriptions.
5.6 Parameterize of the SMARTCON control unit
After finishing the pre-setup of teh actuator (see section 5.3, page 16) all further settings can be done via the
SMARTCON interface.
CAUTION: It is absolutely necessarily to control the torque
settings of the actuator and to teach in the end positions of the
travel.
5.7 User Level and Permissions
In order to edit and/or show certain parameters, a user level with the necessary permissions has to be set as
current user level. The current user level may be set temporarily in the "U User Level" menu item. It is also
possible to set the default user level, which will be set as the current user level until set otherwise ("U User
Level" or default user level). Please refer to Operating Instructions for SMARTCON Control Units for more
information about the user levels.
5.8 Setting of the end positions (design potentiometer for travel)
A detailed description of the operation of the SMARTCON control unit can be found in the Operating Instruc-
tions for SMARTCON Control Units.
5.8.1 End limit OPEN
Set the selector switch and control switch to the centre position.

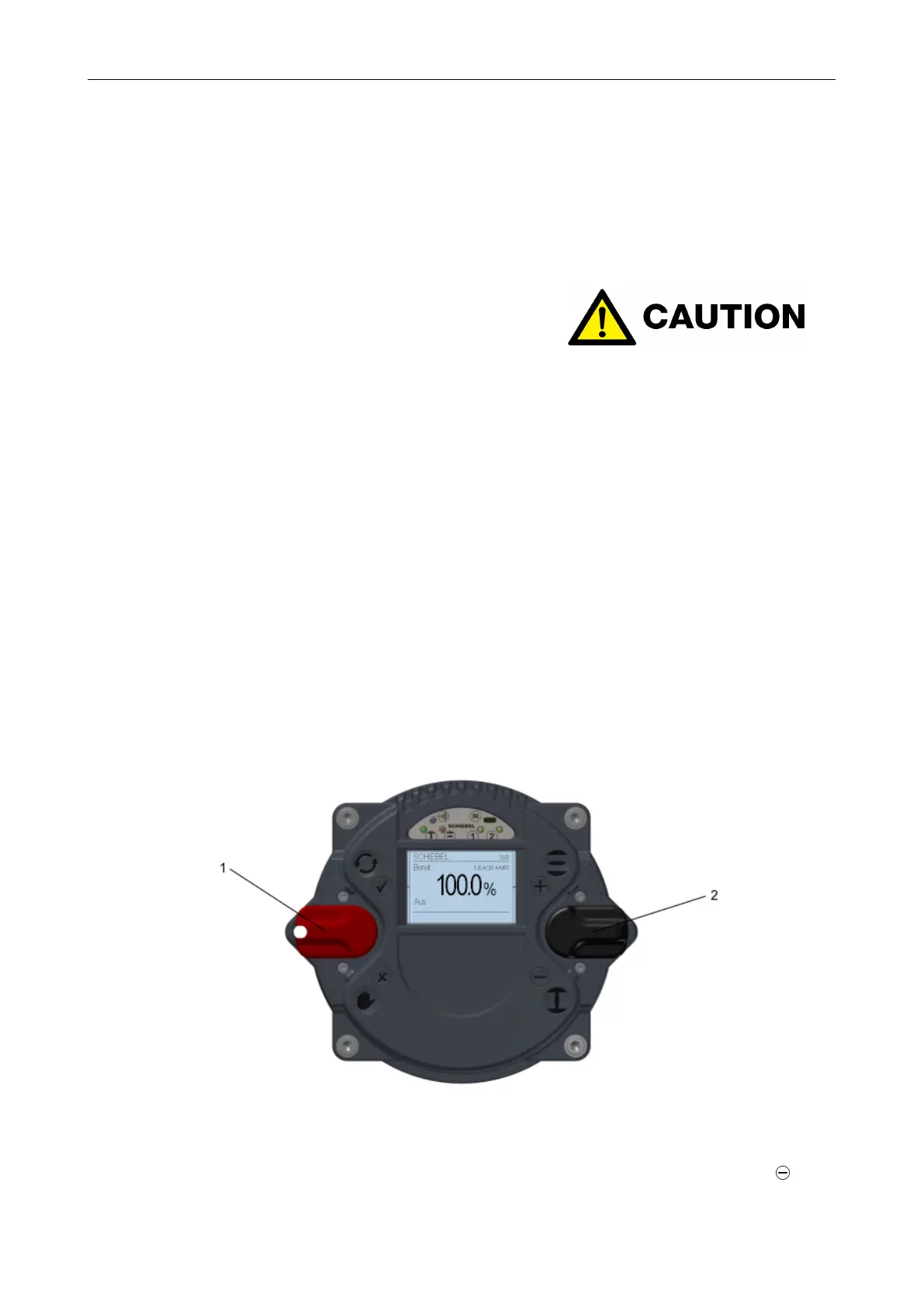

Figure 24: 1. . . selector switch (red), 2. . . control switch (black)
Scroll through the menu with the control switch. Move the control switch towards the first menu item „P 1.1
End limit – Open“.
18
