SCHIEBEL AB3 User Manual

Operating Instructions for Actuators Type AB with Control Unit
OM-ENGLISH-ABCSC.V1.2-16xx-V2.02-2023.04.27 9 Spare parts
fuse F2: control fuse before the control transformer
supplyvoltage value Recommended Type
Spare part
designation
≤ 440VAC 125mA T
G-fuse, brand SIBA, type 189140, ceramic 6,3 x
32mm; 125mA; time lag, 500V, I
2
t = 0,08A
2
s
C606g
> 440VAC
100mA T
(2 Stück)
G-fuse, brand SIBA, type 189140, ceramic 6,3 x
32mm; 100mA; time lag, 500V, I
2
t = 0,05A
2
s
C606f
NOTE: Actuators which are suitable for operation in explosive atmosphere, no fuses are located in the connec-
tion compartment! The control fuse is installed in the flameproof area of SMARTCON control unit and is not
accessible to the user!

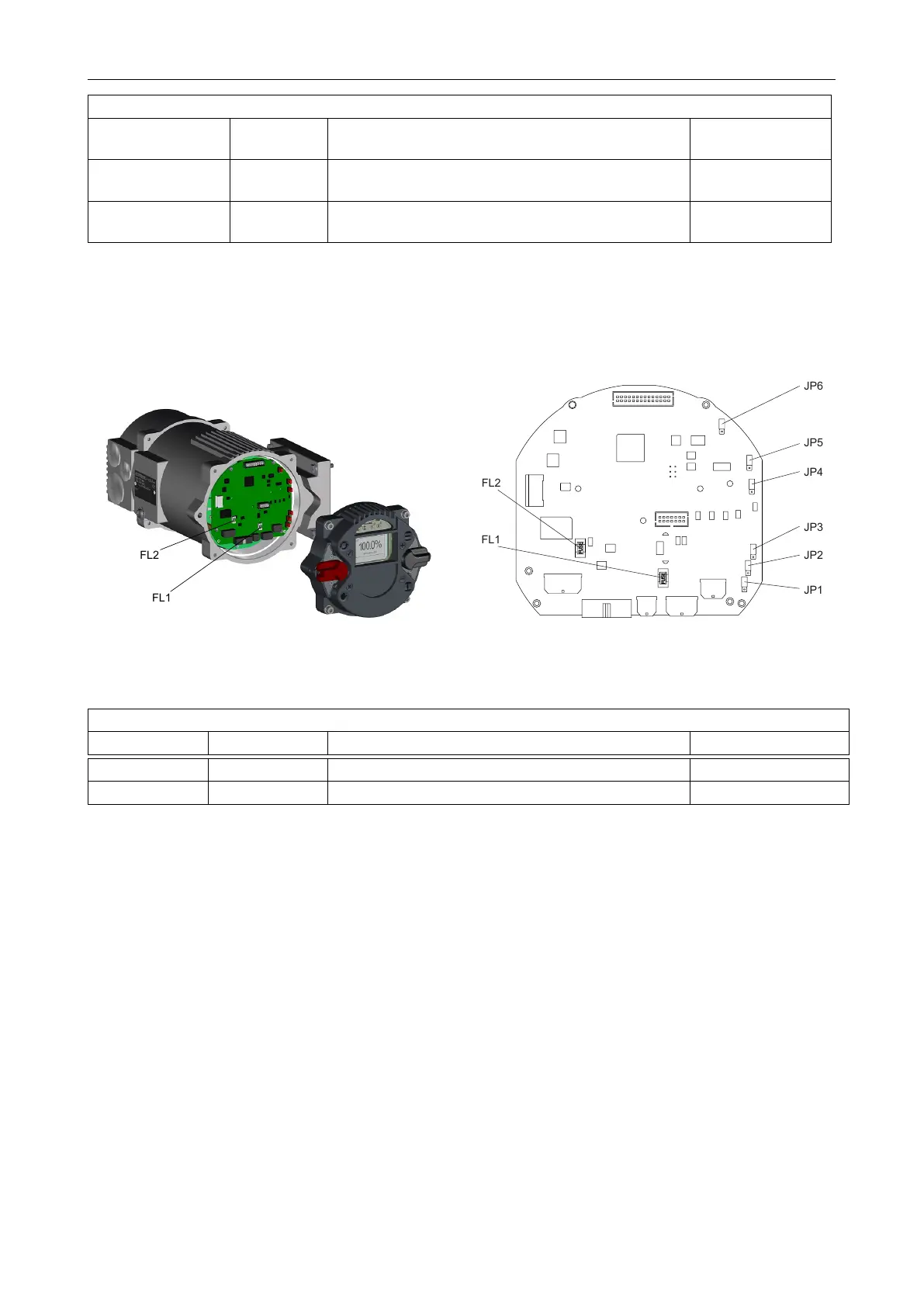

The logic board of the controller cover (see Figure 49, page 25) features two miniature fuses for the control
lines
FL2
FL1
Figure 49: FL1. . . Fuse for auxiliary supply,
FL2. . . Fuse for the binary outputs
JP1
JP2
JP3
JP4
JP5
JP6
FL1
FL2
Figure 50: Logic-Board
Fuses on the logic board
Fuse Value Manufacturer List of spare parts
FL1 1AT Littelfuse 454 NANO
2
Slo-Blo
®
träge FUSE-F1
FL2 4AT Littelfuse 454 NANO
2
Slo-Blo
®
träge FUSE-F2
9 Spare parts
When ordering spare parts, please provide us with the serial number of the (see section 2.2, page 6). Check
the separate break-down image and separate list of spare parts.
10 Recommendations of Lubricants (for all manufactures)
NOTE: Please note, that safety precautions such as the use of personal protective equipment (PPA) may have
to be followed! Please consult the safety datasheet (in section 8) of the product in question.
10.1 Main Casing
10.1.1 Application temperature from -35°C to +100°C
Lubricating grease DIN 51826 - GP 00 P-30
i.e. High pressure (EP), complex grease on Li soap basis:
25
