8 Fuses
Operating Instructions for Actuators Type AB with Control Unit
OM-ENGLISH-ABCSC.V1.2-16xx-V2.02-2023.04.27
1

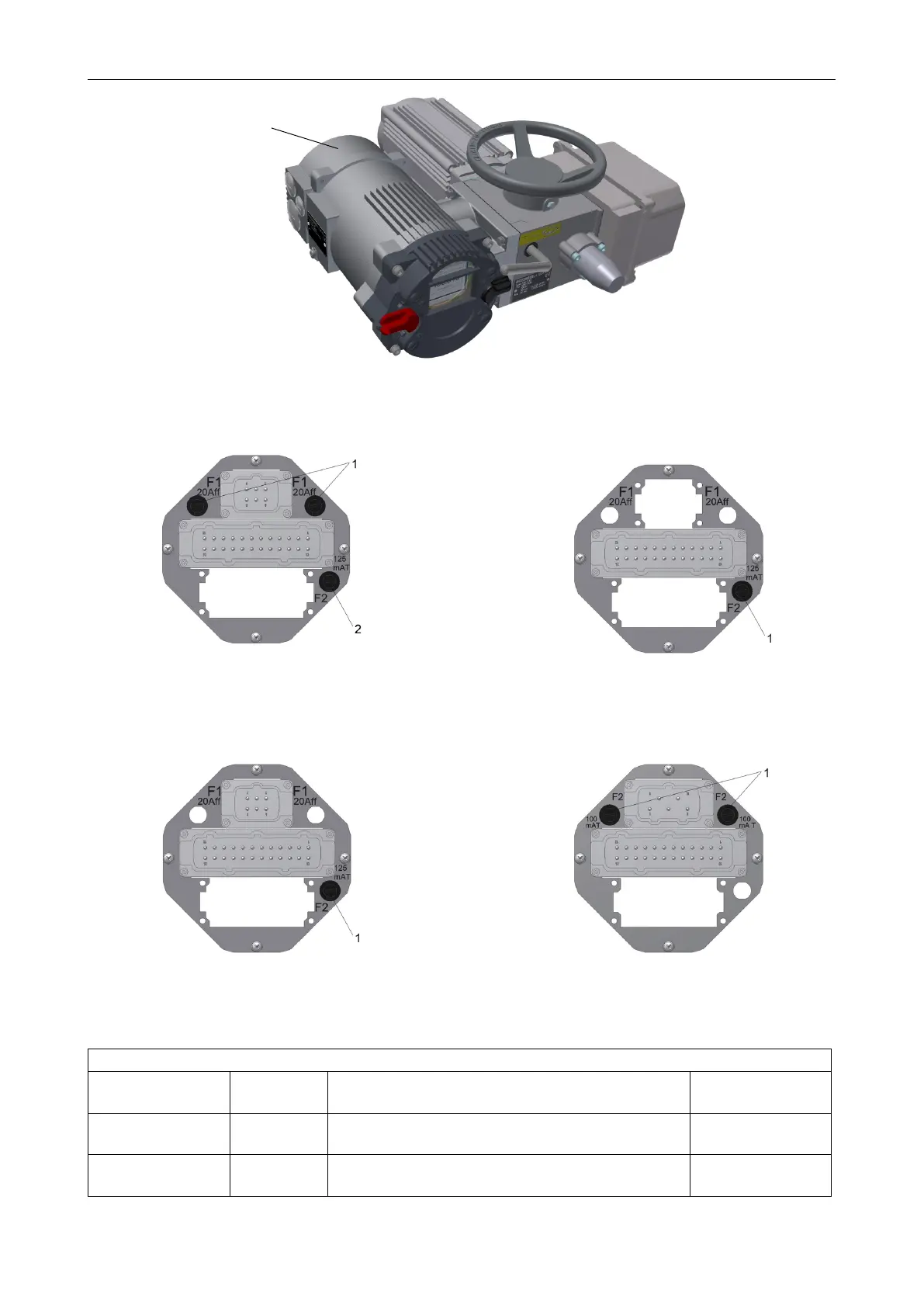

Figure 44: 1. . . Connection compartment
Figure 45: size 1, electronic reversing starters
(1. . . main fuses, 2. . . control fuse)
Figure 46: size 2 (1. . . control fuse)
Figure 47: size 1, up to 440VAC
(1. . . control fuse)
Figure 48: size 1, larger than 440VAC
(1. . . control fuse)
fuse F1: main fuse before the electronic reversing starter (eW, see Figure 45)
power of the motor value Recommended Type
Spare part
designation
up to 1,5kW
20A FF
(2 pcs)
G-fuse, brand SIBA, type 195100, ceramic 6,3 x
32mm; 20AFF,very fast acting, 500V, I
2
t = 46A
2
C606d
3kW
12,5A T
(2 pcs)
G-fuse, brand SIBA, type 189140, ceramic 6,3 x
32mm; 12,5AT; time lag, 500V, I
2
t = 1300A
2
s
C606e
