Page 1.22
SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue 1 June 1998
Chapter 1
Operating Elements
Automatic Mode (ECG) Settings (cont.)

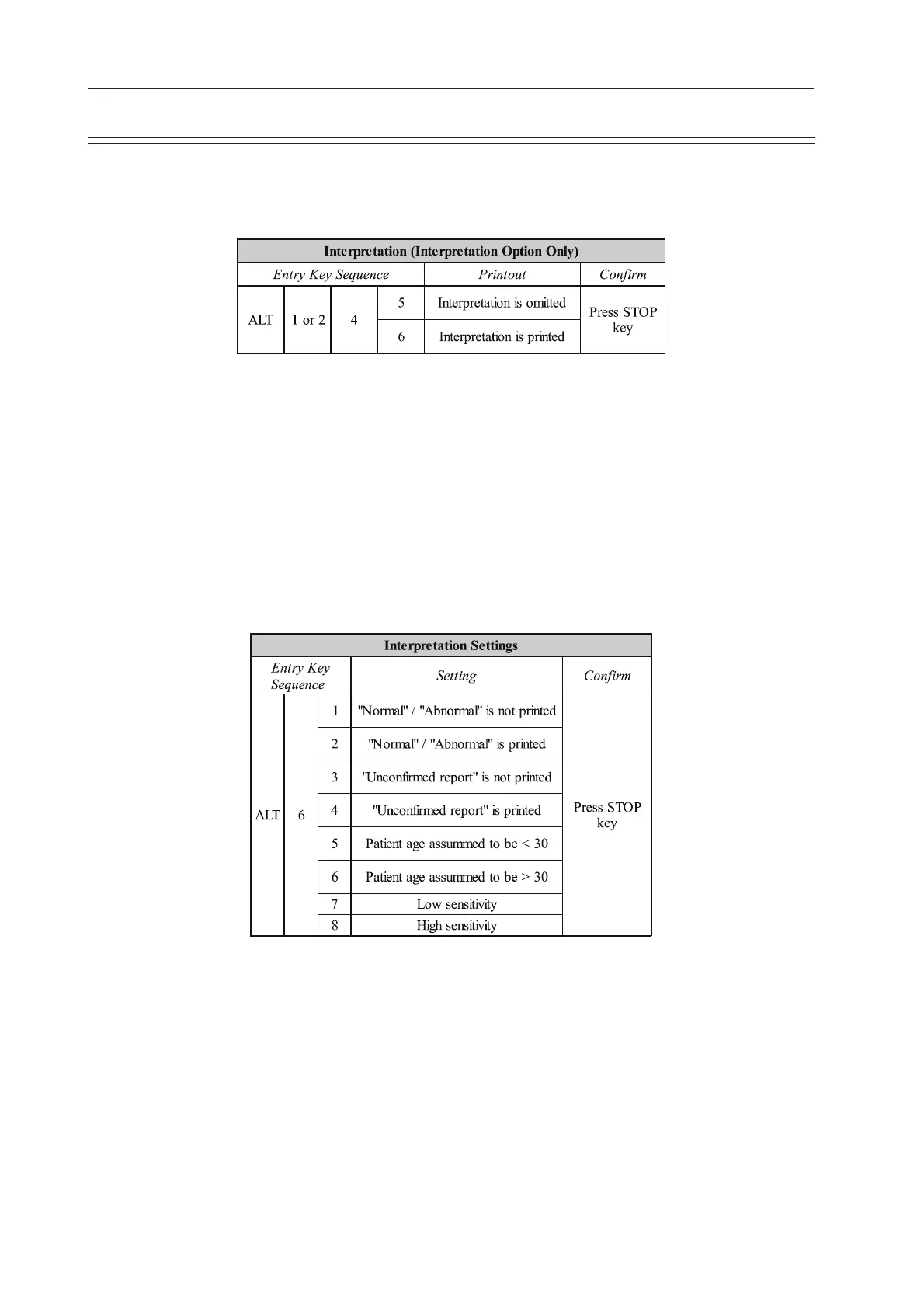

Interpretation (C version only)
To print or suppress interpretation statements on the printout proceed as follows:
Confirm the selection by pressing the STOP key
STOP
Full details of the interpretation option are given in the SCHILLER ECG Measurement and
Interpretation booklet (Art. No. 2.510 179).
Interpretation Settings (C version only)
The interpretation settings enable the user to determine whether or not certain comments will be
added to the interpretation statements on the ECG printout. Furthermore, the patients age can be
defined (<30 or >30) and if low or high sensitivity should be applied. Low sensitivity will suppress
certain nonspecific ECG diagnosis; this may be advisable when carrying out ECGs for screening.
Note: The `Patient age assumed to be..` setting is only applicable when patient data has not
been entered.
