Page 1.23
Chapter 1
Operating Elements
SCHILLER AT-2plus 6-Channel ECG Unit
SERVICE HANDBOOK Issue 1 June 1998
Automatic Mode (ECG) Settings (cont.)
Selecting Rhythm Leads

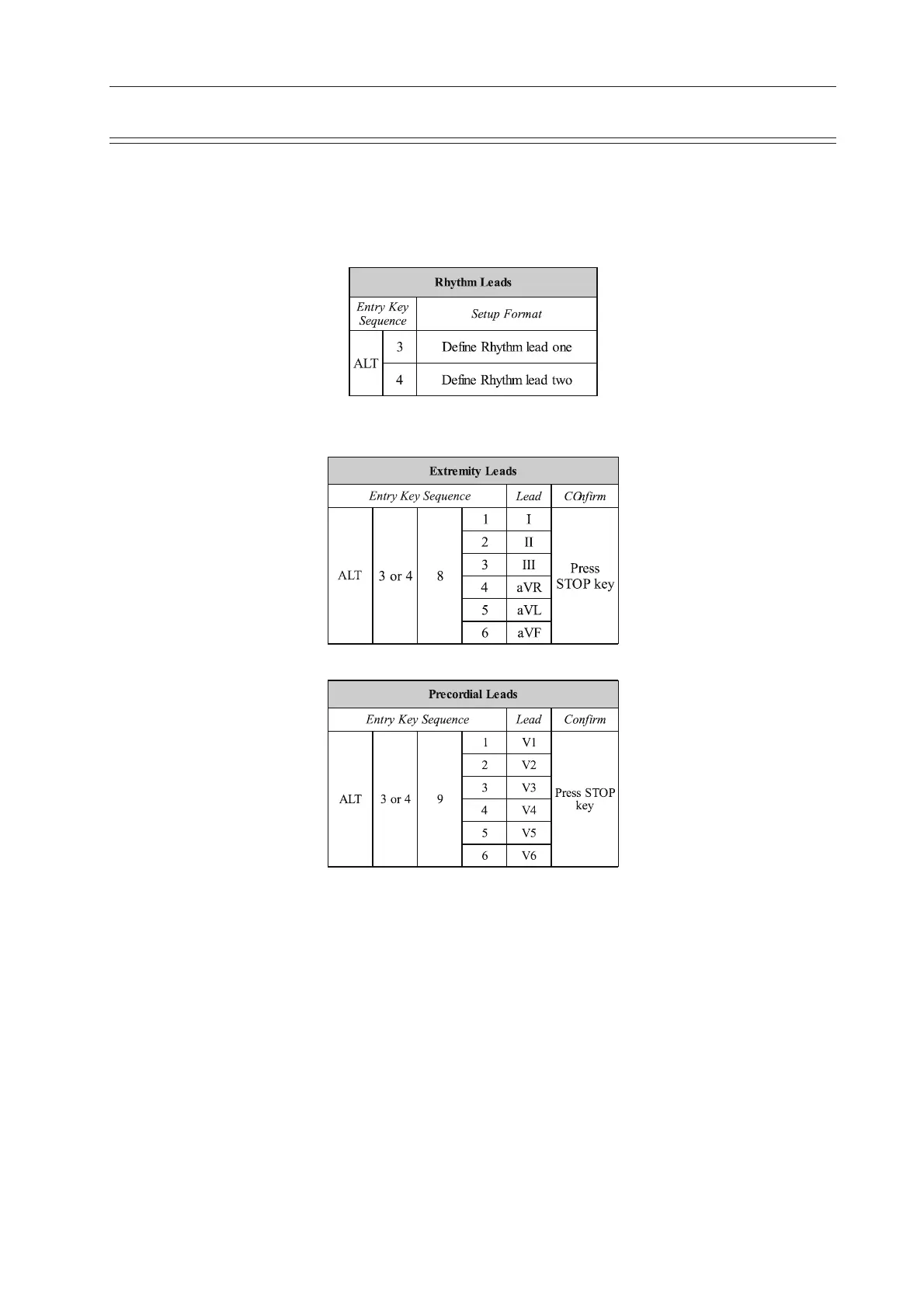

The rhythm leads are printed out as defined. Two separate rhythm leads can be selected. The
following formats can be set:
The 2 rhythm leads are defined as follows:
Confirm the selection by pressing the STOP key
STOP
