Schlage CONNECT - Install the Bolt; Bolt Installation Details

Need Help?
See “Help with Step 1” in the online
instructions. The link is on the back
cover or the third page of this guide.
1
step
Actual Size
Make sure the
word “TOP” is
facing up.

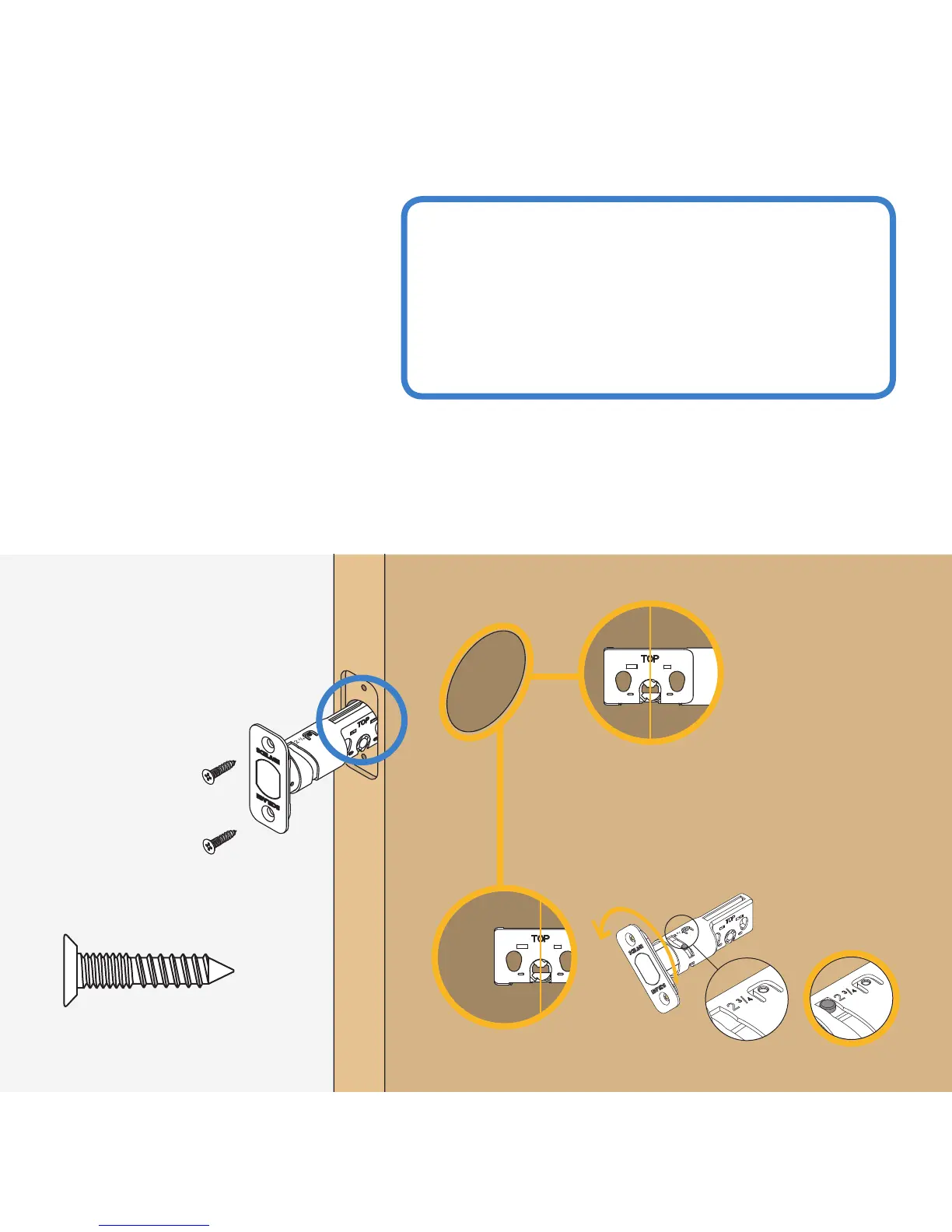

Install the bolt.
You may have to adjust your bolt length. Make sure the slot in
the bolt is centered in the hole.
Slot is
centered
in the hole.
No change
needed.
Twist the
faceplate to
extend.
Keep
twisting
until 2 ¾”.
