Schlage FE410F - Completing Power and Cover Installation; Battery Installation and Inside Cover; Installing Levers and Frame Strikes; Inner and Outer Lever Attachment

6

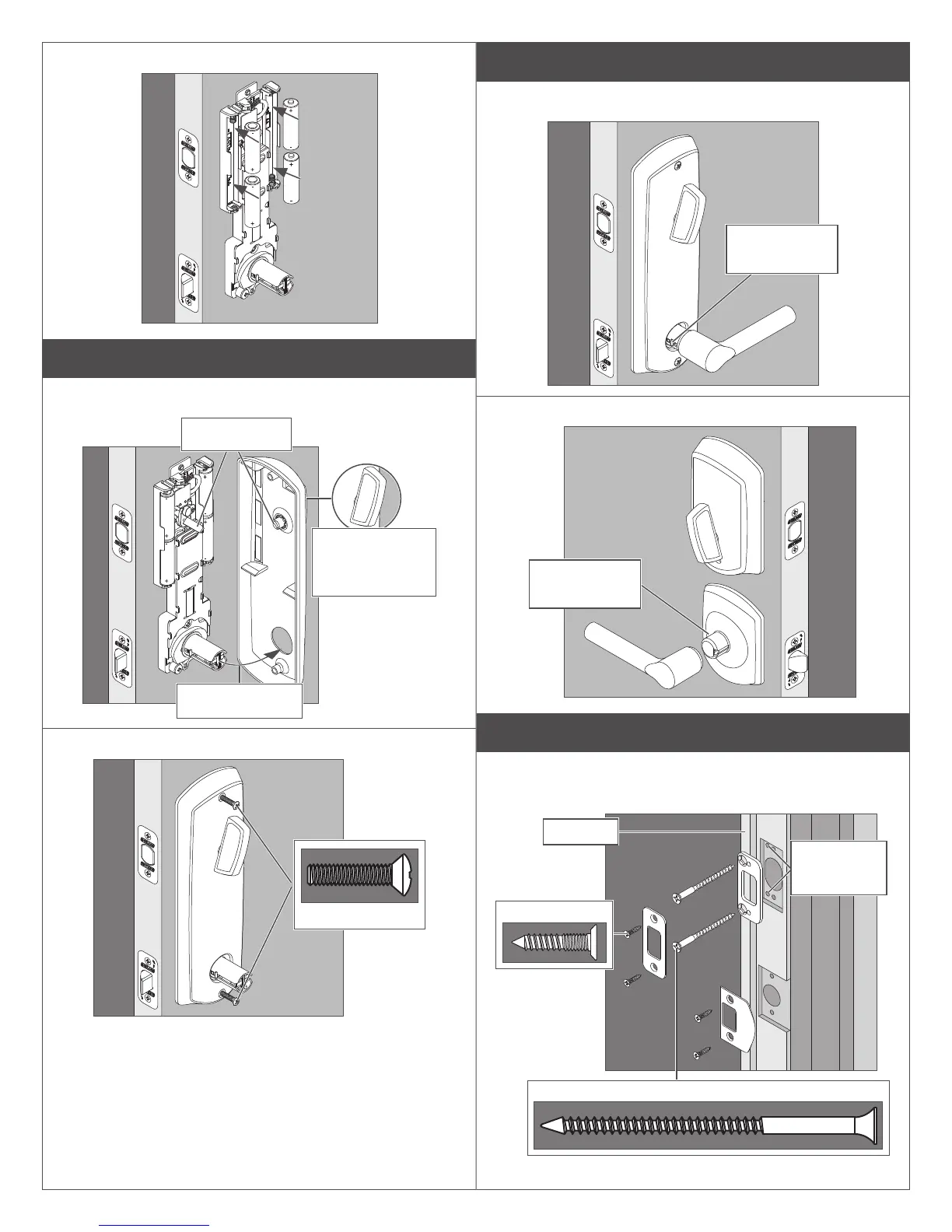

4b Install the batteries.
5 Install the inside cover.
5a Place the inside cover on the door.
Align the slot with
the tailpiece.
Thumbturn should
be pointed towards
hinges, with longer
side on top.
Guide the hole onto
the spindle.
5b Secure the inside cover with two screws.
Actual Size (2)
6 Install the levers.
6a Install the lever on the inside of the door.
Press lever catch
in, then push lever
into place.
6b Install the lever on the outside of the door.
Press lever catch
in, then push lever
into place.
7 Install the strikes.
7a Install the strikes into the frame.
L Install all the parts shown for maximum security.
Actual Size (4)
Reinforcement Screws: Actual Size (2)
Door Stop
Drill pilot holes
Z\,” x 3” deep
2 places
