Schlage L9080EU User Manual

L Service Manual
102
Strikes

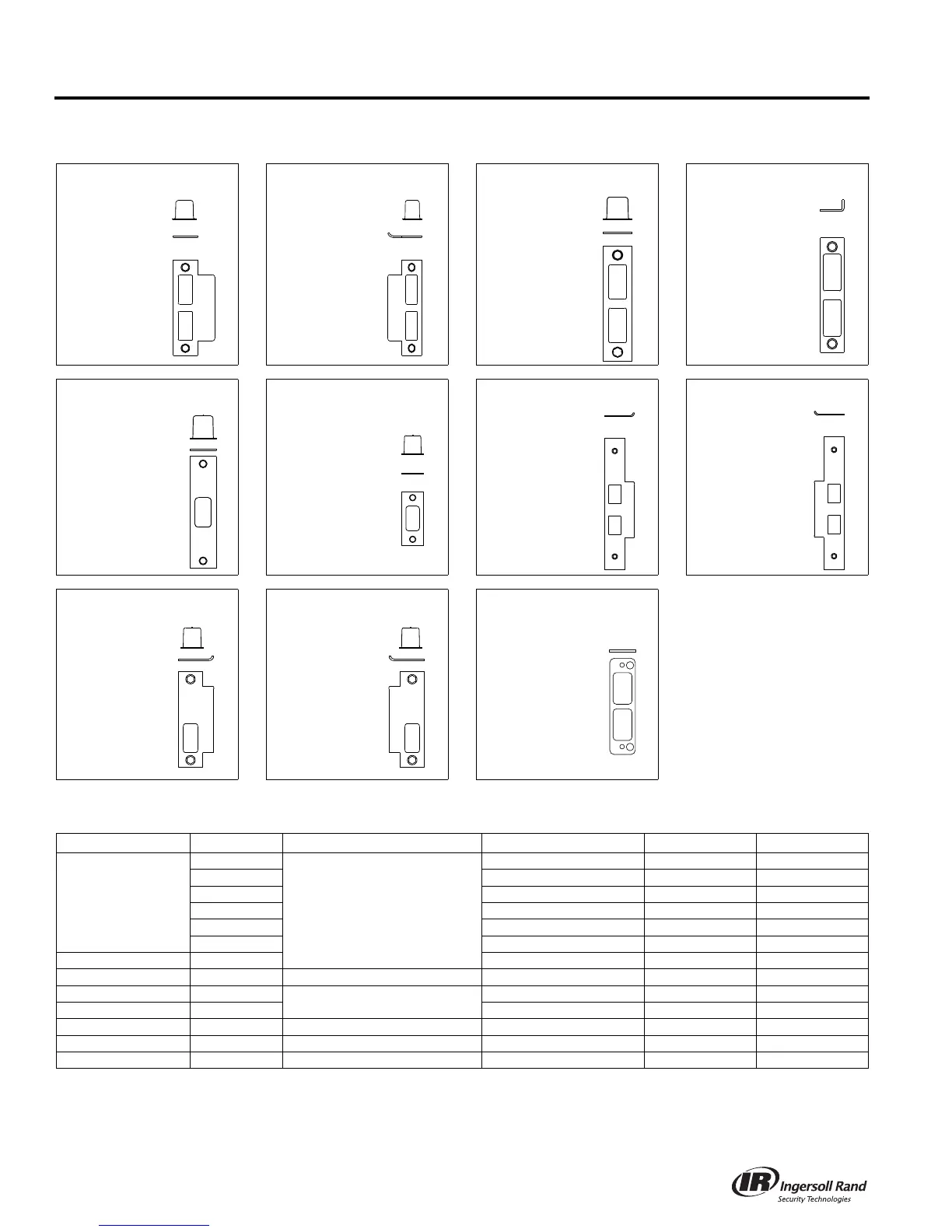

Strike Dimensions and Components
Square Corner 10-072
Standard 1³⁄₁₆''
Lip
Size: 4⁷⁄₈'' x 1¹⁄₄''
Square Corner 10-072
⁷⁄₈'', 1'', 1¹⁄₂'', 1³⁄₄''
or 2'' Lip
Size: 4⁷⁄₈'' x 1¹⁄₄''
Square Corner 10-073
No Lip
Size: 4⁷⁄₈'' x 1¹⁄₄''
¹⁄₂''
Rabbeted 10-075
No Lip
Size: 4⁷⁄₈'' x 1''
Square Corner 10-078
L400 Series
No Lip
Size: 4⁷⁄₈'' x 1¹⁄₄''
Square Corner 10-079
L400 Series
No Lip
Size: 3¹⁄₂'' x 1¹⁄₈''
Square Corner 10-091
L & RR (Armor)
1³⁄₁₆'' Lip
Size: 8'' x 1¹⁄₄''
Square Corner 10-091
R & LR (Armor)
1³⁄₁₆'' Lip
Size: 8'' x 1¹⁄₄''
Square Corner XL11-820
R & LR
1³⁄₁₆'' Lip
Size: 4⁷⁄₈'' x 1¹⁄₄''
Square Corner XL11-821
L & RR
1³⁄₁₆'' Lip
Size: 4⁷⁄₈'' x 1¹⁄₄''
Strike Reinforcer 37-015
L9000 Series
¹⁄₄'' Radius Round Corner
Size: 4⁷⁄₈'' x 1¹⁄₄''
Part Number Lip Lock Series Door Range Box Screw 2 ea.
10-072*
1''
L9010
to
L9496
2'' K510-066 C603-256
1³⁄₁₆'' 1³⁄₈''–1⁷⁄₈'' K510-066 C603-256
1¹⁄₂'' 1⁷⁄₈''–2¹⁄₈'' K510-066 C603-256
1³⁄₄'' 2¹⁄₈''–2⁵⁄₈'' K510-066 C603-256
2'' 2⁵⁄₈''-3¹⁄₈'' K510-066 C603-256
⁷⁄₈'' — K510-066 C603-256
10-073 — — K510-066 C603-256
10-075*** — L9000 Series — — C603-256
10-078 —
L400 Series
— K510-066 C603-256
10-079 — — K510-053 C603-256
10-091** 1³⁄₁₆'' L9175, L9176 1³⁄₈''–1⁷⁄₈'' — K510-210
XL11-820**, XL11-821** 1³⁄₁₆'' L9000 Non-Deadbolt Functions 1³⁄₈''–1⁷⁄₈'' K510-066 C603-256
37-015 — L9000 — — —
* Specify lip length.
** Specify lip length and hand of inactive door
*** For 1³⁄₄'' thick doors use 1¹⁄₁₆” wide armor fronts. For over 1³⁄₄''–2¹⁄₄'' doors use with 1¹⁄₄'' wide armor fronts.
NOTE: Strike boxes and screws can be ordered as parts.

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
