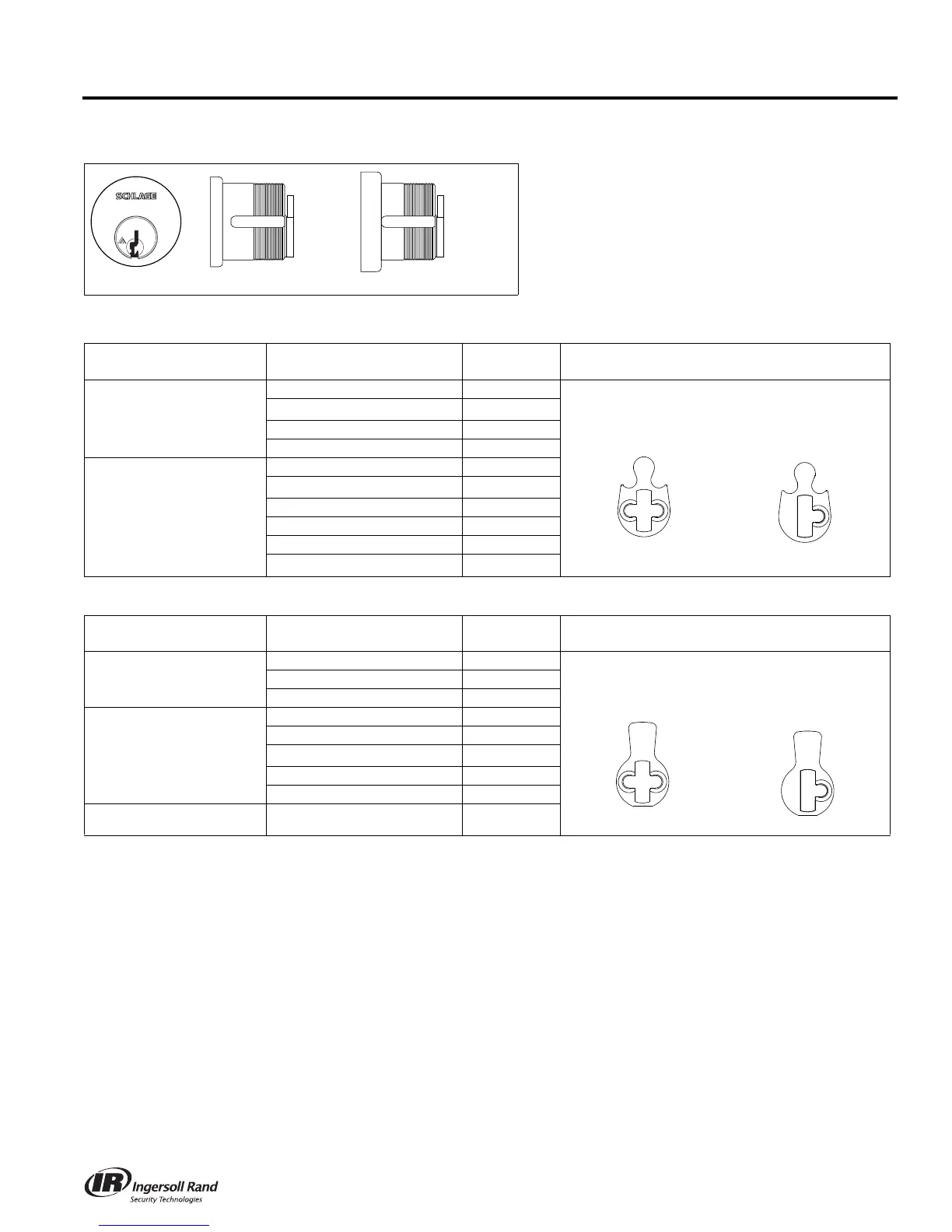

Full Face Cylinders
L-Series (except L9060/LV9060 Outside)
L-Series L9060/LV9060 Outside
Description Cylinder Mechanism
Complete
Cylinder
Cam
Cylinder Only:
L & N Escutcheons
Conventional 30-021
L583-254
Classic
Conventional
L583-153
Everest
®
and
Primus
®
Primus
®
Controlled Access
20-793
Primus UL437 20-593
Hotel Function 30-022*
Cylinder with Compression
Ring & Spring:
Rose Trim
Conventional 30-001
Primus
Controlled Access
20-787
Primus UL437 20-587
Primus Lockout 20-717
Primus UL437 Lockout 20-517
Hotel Function 30-002*
Description Cylinder Mechanism
Complete
Cylinder
Cam
Cylinder Only:
L & N Escutcheons
Conventional 26-021
B502-191
Conventional
B502-948
Everest
®
and
Primus
®
Primus Controlled Access 20-701
Primus UL437 20-501
Cylinder with Compression
Ring & Spring:
Rose Trim
Conventional 20-001
Primus Controlled Access 20-700
Primus
UL437
20-500
Primus Lockout 20-715
Primus UL437 Lockout 20-515
Cylinder with Compression
Ring & ¹⁄₈'' Blocking Ring
Conventional 20-002
* Specify hand for hotel function cylinders. Not available in Primus
®
. Furnished 0-bitted; emergency keys must be ordered separately.
NOTES: Lockout keys are not furnished with cylinders and must be ordered separately.
Lockout cylinders will not be master keyed by Schlage.
Cylinder OnlyFront Cylinder with Compression Ring & Spring

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
