Service Manual L
111
Small Format Interchangeable Cores

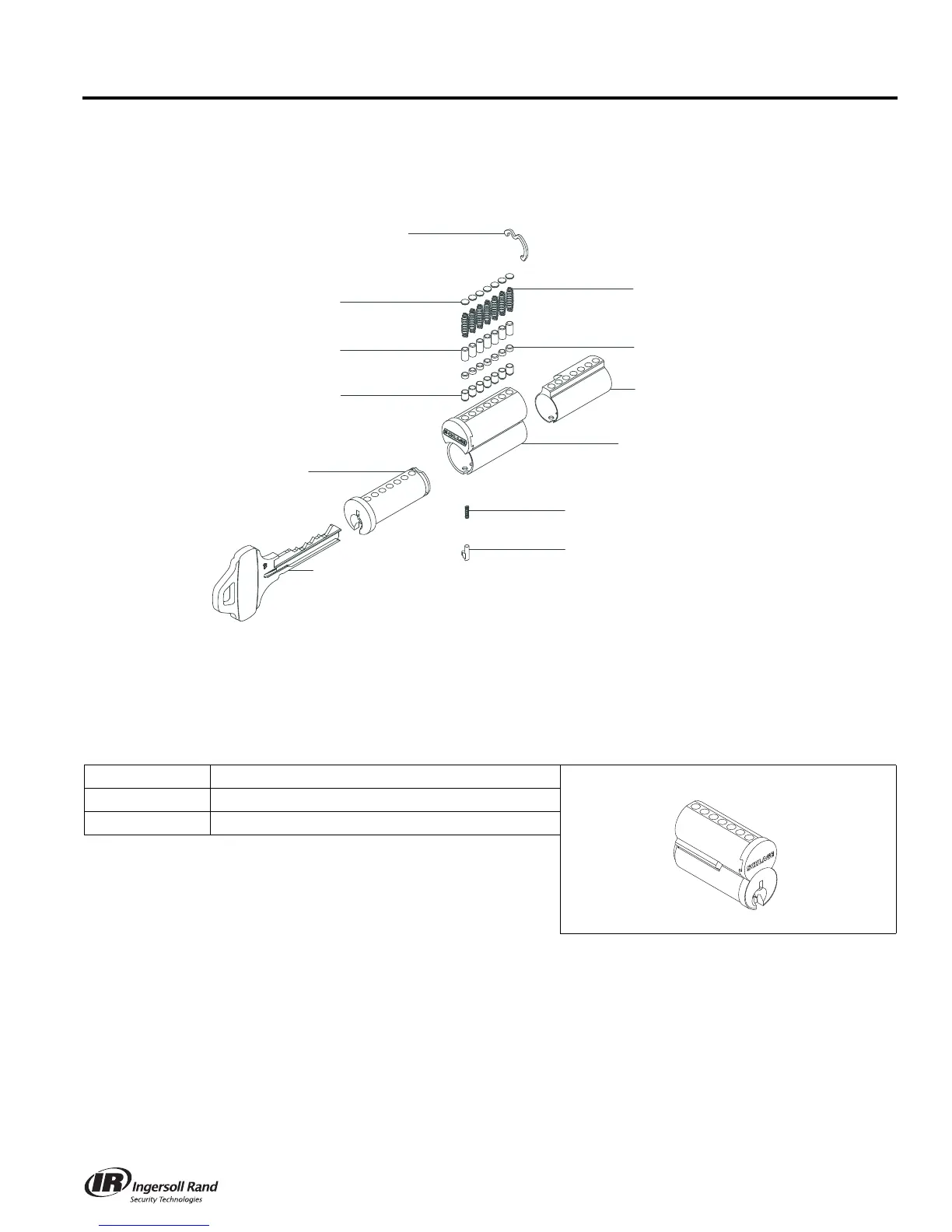

Exploded View – Small Format Everest
®
Keyways
Everest
®
Patented Keyway Cores
NOTES: 1) Finishes: 606, 613 and 626.
2) Everest B family keyways are restricted.
3) Key symbol must be specified for combinated cores.
4) Uncombinated cores are furnished less keys, pins and springs.
5) Control keys must be ordered separately.
6) Specify 80-035 for construction cores.
Part Number Description
80-036 / 80-037
80-037
Everest combinated core, includes master keying
80-036
Everest uncombinated core
Plug retainer
Top pins
Build-up pins
Bottom pins
Plug
Undercut groove
Check pin
Check pin spring
Master pins
Sleeve with control lug
Shell
Tumbler springs

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
