Schlage L9080EU User Manual

Service Manual L
27

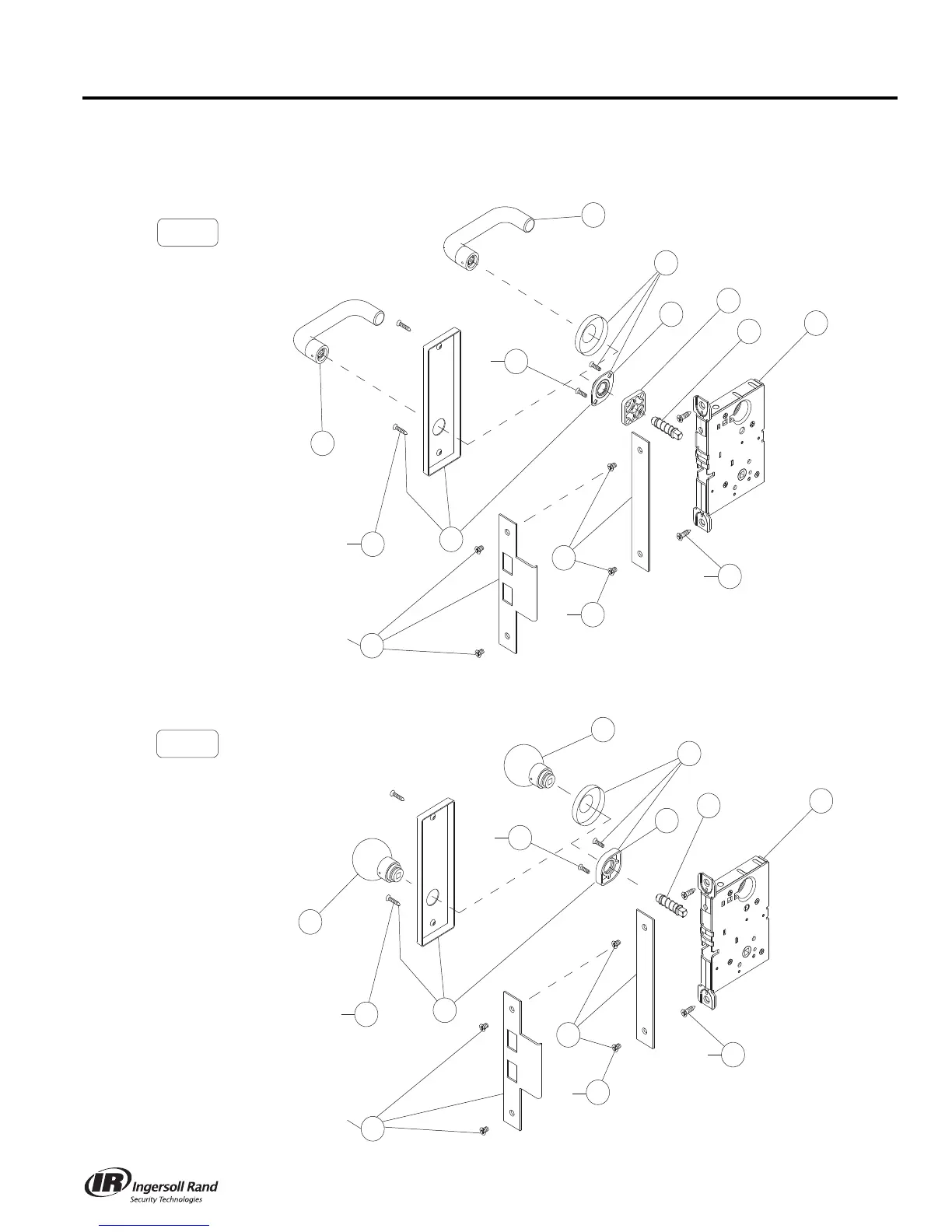

Trim Assemblies
Single Dummy with Case Trim: L9175, L9177 (Discontinued)
B
S
I
CC
B
C
Y
II
AA
BB
R
K
JJ
B
C
AA
BB
HH
CC
B
S
I
JJ
K
T
T
R
For discontinued function L9177
order L9175 and armor strike separately
and specify hand of inactive door.
Mount in place of blank armor.
For discontinued function L9177
order L9175 and armor strike separately
and specify hand of inactive door.
Mount in place of blank armor.
2
Levers
Knobs
2
2
2
2
2
2
2

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
