Schlage L9080EU User Manual

Service Manual L
93
L Escutcheon Trim
Inside Escutcheons
NOTES: When ordering trim parts, specify the complete design and finish (e.g. 09-632 01L 605).
See Schlage Commerical Price Book for available finishes.

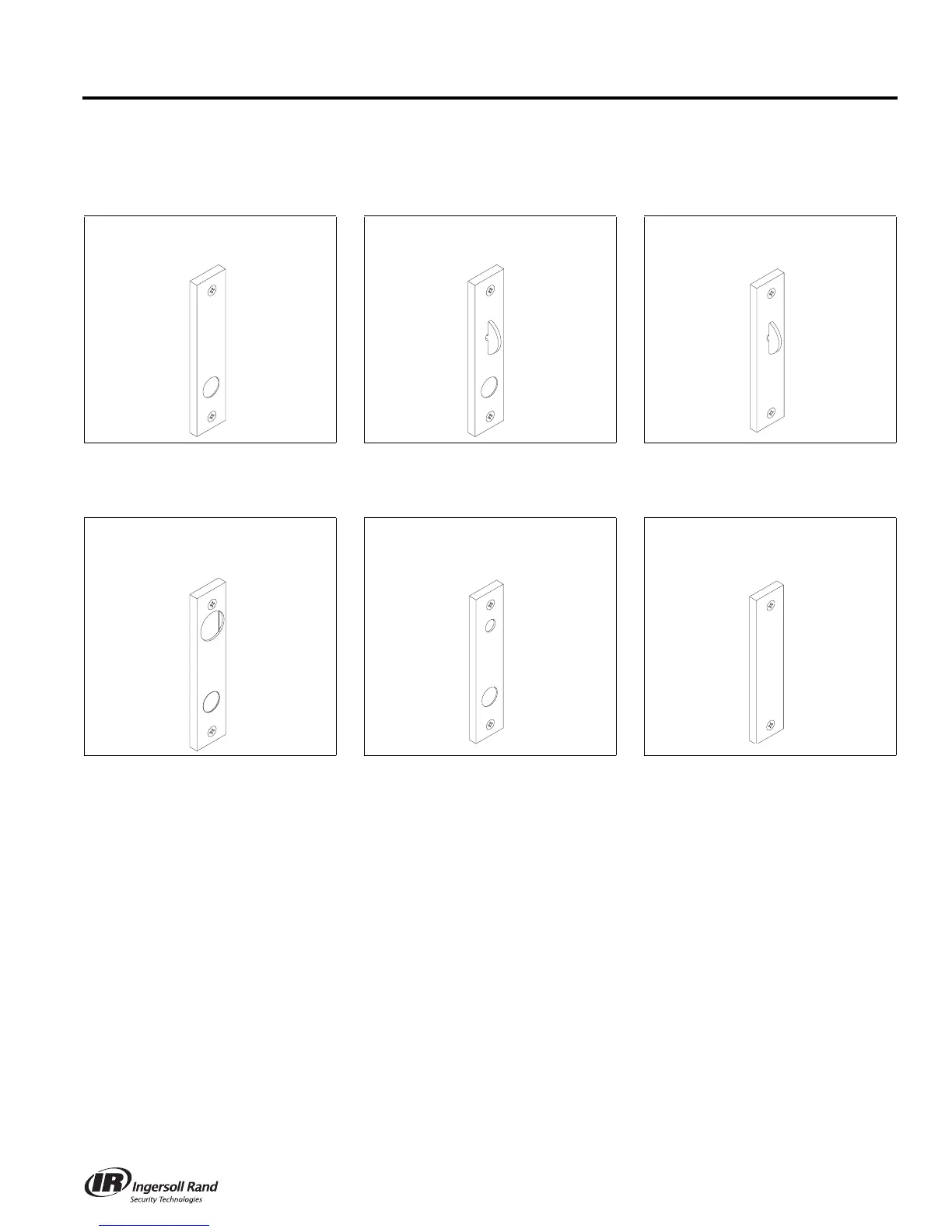

09-632 Blank x Knob/Lever 09-633 Thumbturn x Knob/Lever 09-634 Thumbturn x Blank
Specify door thickness: 1³⁄₈" or 1³⁄₄"
Available with EZ Turn (ADA).
(See “Trim Options” page 97)
Specify door thickness: 1³⁄₈" or 1³⁄₄"
Available with EZ Turn (ADA).
(See “Trim Options” page 97)
09-635 Full Face Cylinder x Knob/Lever
L583-187 Concealed Cylinder x
Knob/Lever
XL11-634 Blank Inside
Specify XL11-634 OOL.

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
