L Service Manual
106
Concealed Cylinders

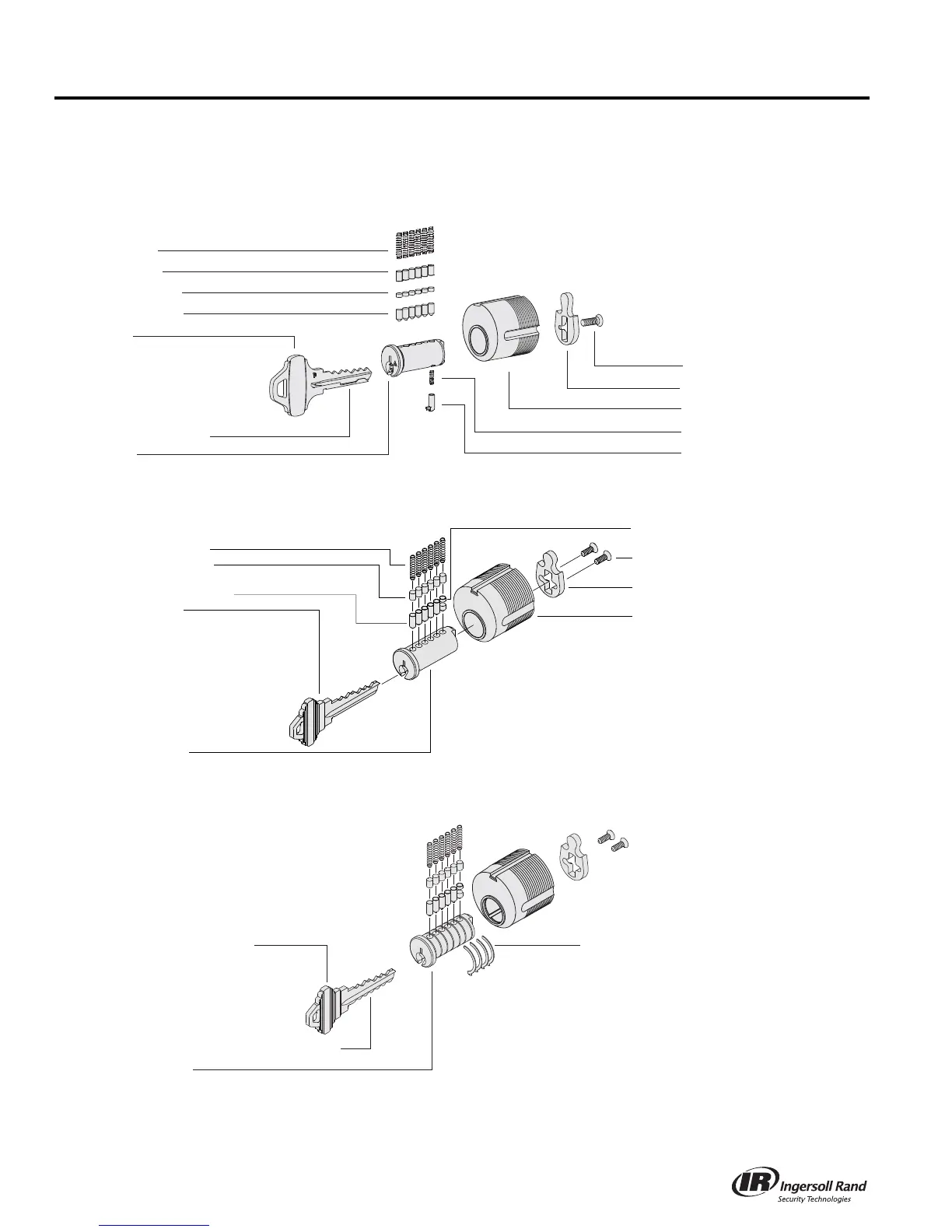

Exploded View—Everest
®
Mortise Cylinder
Exploded View—Classic Mortise Cylinder
Exploded View—Hotel Mortise Cylinder
Undercut groove
Springs
Top pins
Master pins
Bottom pins
Key
Plug Check pin
Check pin spring
Shell
Cam (L583-153 shown)
Cam screw
Cam screws
Cam (L583-254 shown)
Shell
Springs
Top pins
Bottom pins
Key
Plug
Master pins
Emergency key Stop rings (4)
Shown for right hand (RH) doors.
Notched to bypass stop rings
Plug
Furnished with grooves for stop rings.

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
