Schlage L9080EU User Manual

L Service Manual
110

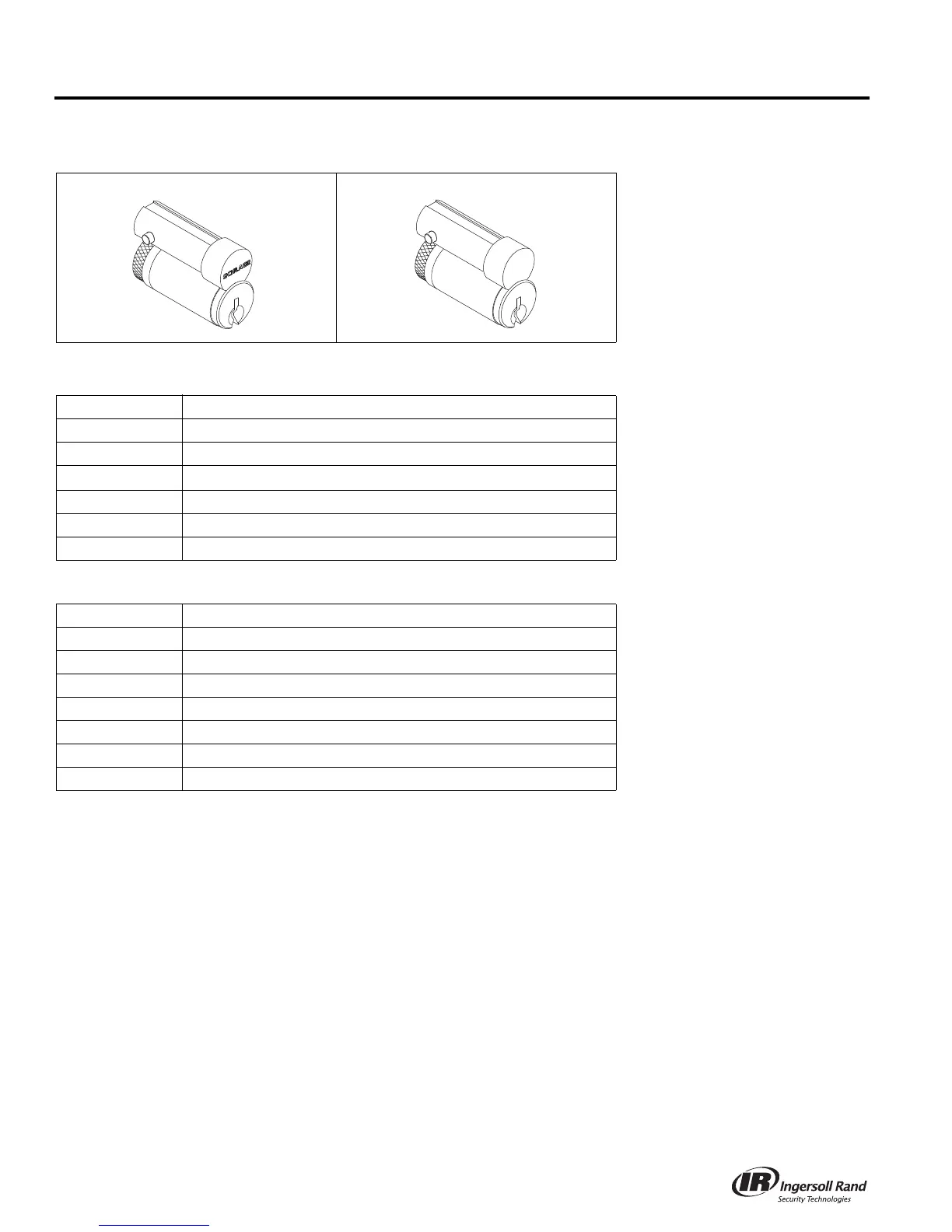

Full Size Interchangeable Cores
Full Size Cores
Full Size Core Parts
* Specify hand for hotel function cores. Emergency keys must be ordered separately.
** For cores manufactured before November 1997.
NOTES: 1) Control keys must be ordered separately.
2) Finishes: 606 and 626 only.
3) Full size cores, conventional and Primus
®
, can be integrated into any Schlage key system with compatible Everest
®
or Classic keyways.
4) Primus
®
cores can be integrated into any Schlage 6-pin key system with compatible Primus
®
keyways.
5) Primus
®
cores are Controlled Access. Specify LKB if 0-bitted Primus
®
cores are required less key blanks.
23-030 23-031
Part Number Description
23-030
Conventional core
23-031
Conventional core less logo
20-740
Primus
®
core
20-741
Primus core less logo
30-120*
Hotel function conventional core for L/LV9485 and L/LV9486
30-121*
Hotel function conventional core, less logo, for L/LV9485 and L/LV9486
Part Number Description
C503-115
Cap Pin Spring (Order in multiples of 100)
C503-118
Retainer Cap (Order in multiples of 25)
C603-347**
Cap Pin (Order in multiples of 100)
C603-827
Cap Pin (Order in multiples of 100)
C603-956
Actuating Ring
C603-964
Actuating Pin (Control top pin)
C603-967
Control Bottom Pin (Order in multiples of 100)

Schlage L9080EU Specifications

General

Series	L Series
Keyway	Schlage C
Handing	Non-Handed
Battery Life	Up to 3 years
Adjustable Latch	Yes
ANSI/BHMA Grade	Grade 1
Finish	Satin Chrome
Backset	2-3/4"
Battery Type	AA
Operation	Keypad
