11

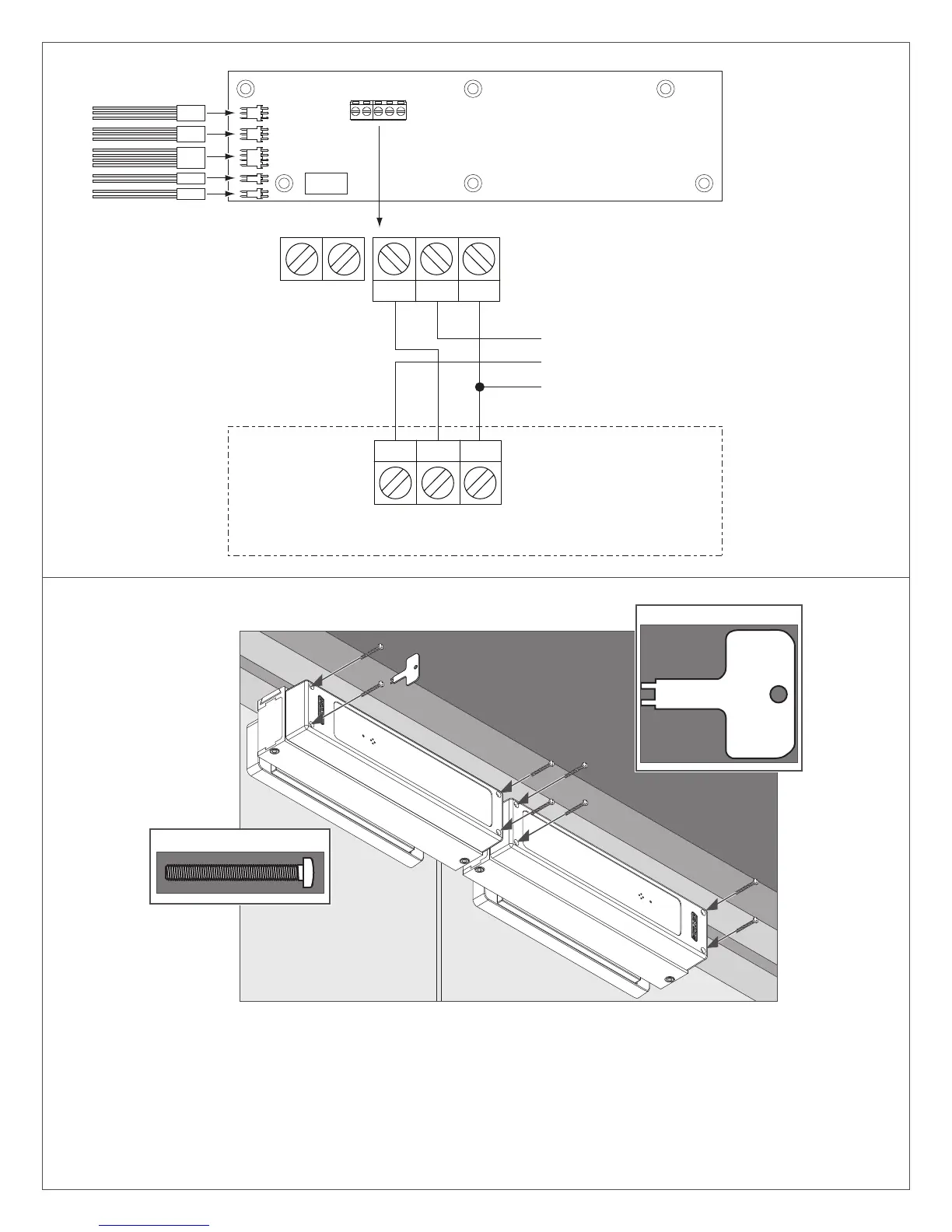

7c Connect wiring to second lock.
*DPS2
*DPS1
COILS
*MBS2
*MBS1
NO C NC
DPS
NO
C
NC
DPS
AUX
Master Lock
(Basic or Plus)
(C)
(NO)
(NC)
Second
auxiliary input
Both doors closed.
If either or both doors
open, contacts will change
}
DPS Output
12V@200mA
24V@100mA
resistive
*DPS Wiring in Parallel
(Plus Models Only)
7d Install covers.
Actual Size
Spanner Wrench
L Note: Some warming of the device under routine operation is normal.
