Schlage M490G - Page 6

6

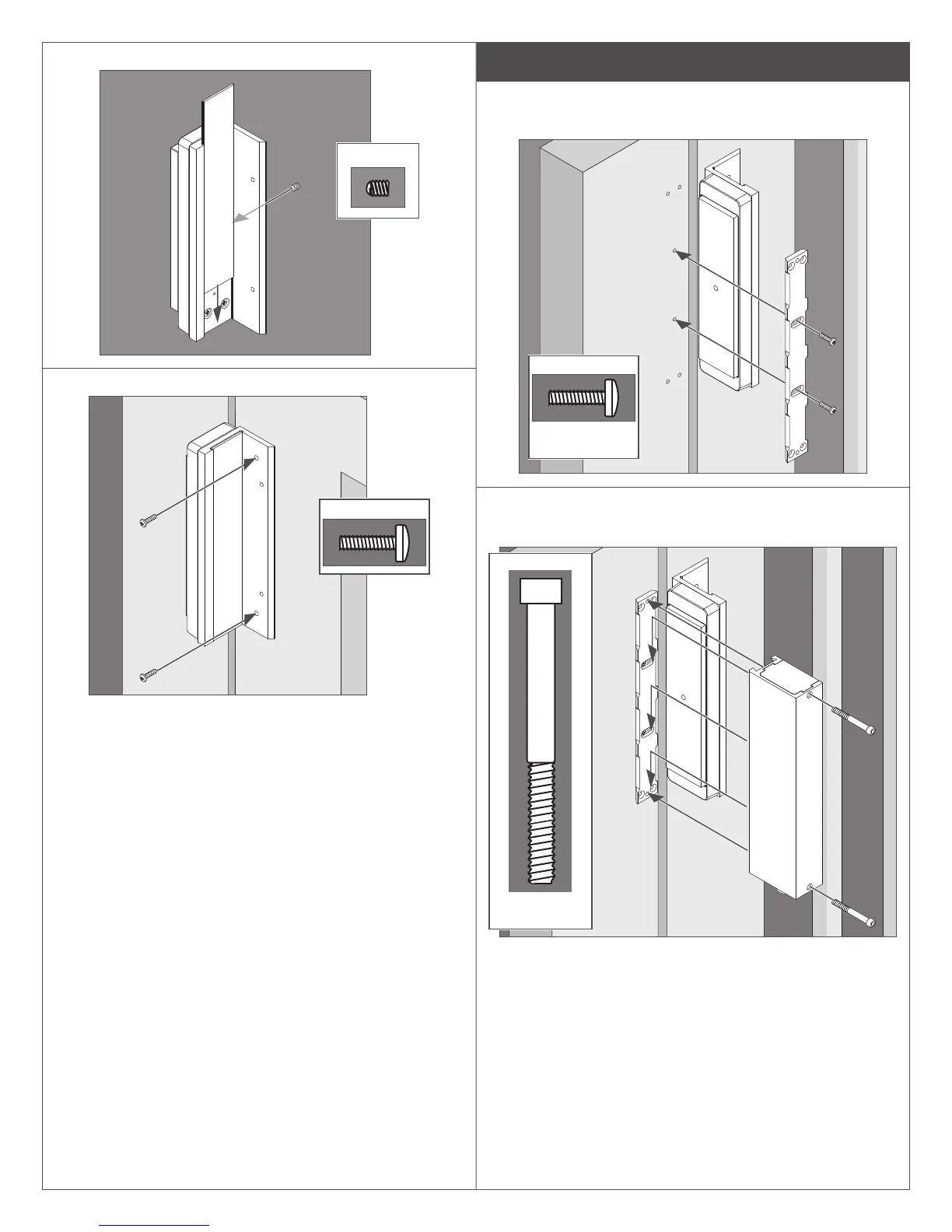

2c Install cover plate.
Actual Size
2d Attach Armature Assembly to moving part of gate.
Actual Size (2x)
3 Install magnet assembly to non-moving post.
3a Attach mounting bracket to post.
a. Attach bracket with two screws through two slotted holes.
b. Leave screws loose so that bracket can adjusted.
Actual Size (2x)
Loosely install
screws
3b Attach magnet to bracket.
a. Slide magnet assembly onto mounting bracket.
b. Secure magnet with two screws.
Actual Size (2x)
Loosely install
screws
