Schlage M490G - Wiring Installation

© Allegion 2017
Printed in U.S.A.
23697287 Rev. 09/17-e
Customer Service
1-877-671-7011 www.allegion.com/us

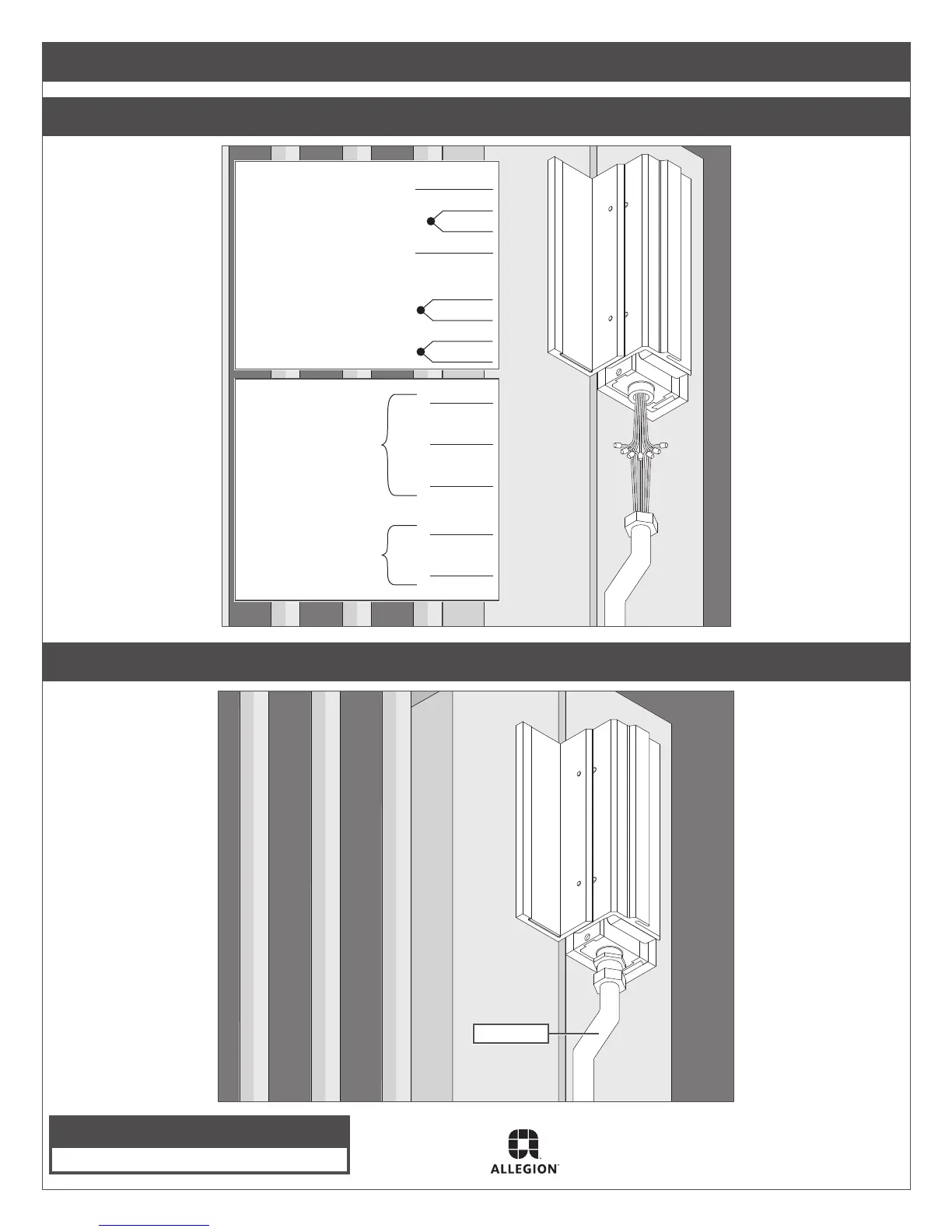

Wiring Installation
1 Attach wiring per information shown.
24 Volt DC,
Power Input
DC (+)
Red
Violet
Brown
DC (-)
Black
12 Volt DC,
Power Input
Red
DC (+) Violet
Brown
DC (-) Black
DPS: 0.25A, 30VDC,
Resistive
NO
Blue
NC
Yellow
C
Green
MBS: 1A, 30VDC,
Resistive
NO
Gray
C
White
2 Connect conduit to lock.
Z\x” Conduit
