106 • Schlage • ND-Series service manual
Request-to-exit feature
Request-to-exit feature
Request-to-exit (RX) utilizes a microswitch attached to the lock chassis to detect rotation of the inside knob/lever. The switch
then signals the use of the opening to the security system.
Attach wires from the RX switch wire harness to an electrified hinge/EPT (not furnished). Refer to Allegion Connect on page
105 for wire identification.
Electrical rating: 2 A, 30 V DC
¹³⁄₁₆"
(21 mm)
¹¹⁄₁₆"
(17 mm)
LH or RHR
⁷⁄₈" (22 mm)
drill thru
Latch
2¹⁄₈" (54 mm)
⁵⁄₁₆" (8 mm)
⁵⁄₁₆" (8 mm)
1³⁄₈"
(35 mm)
1³⁄₈"
(35 mm)
C
L
RH or LHR
⁷⁄₈" (22 mm)
drill thru
2⁵⁄₈" (67)
³⁄₄" (19)
³⁄₈"
(10)
¹³⁄₁₆"
(21 mm)
¹¹⁄₁₆"
(17 mm)

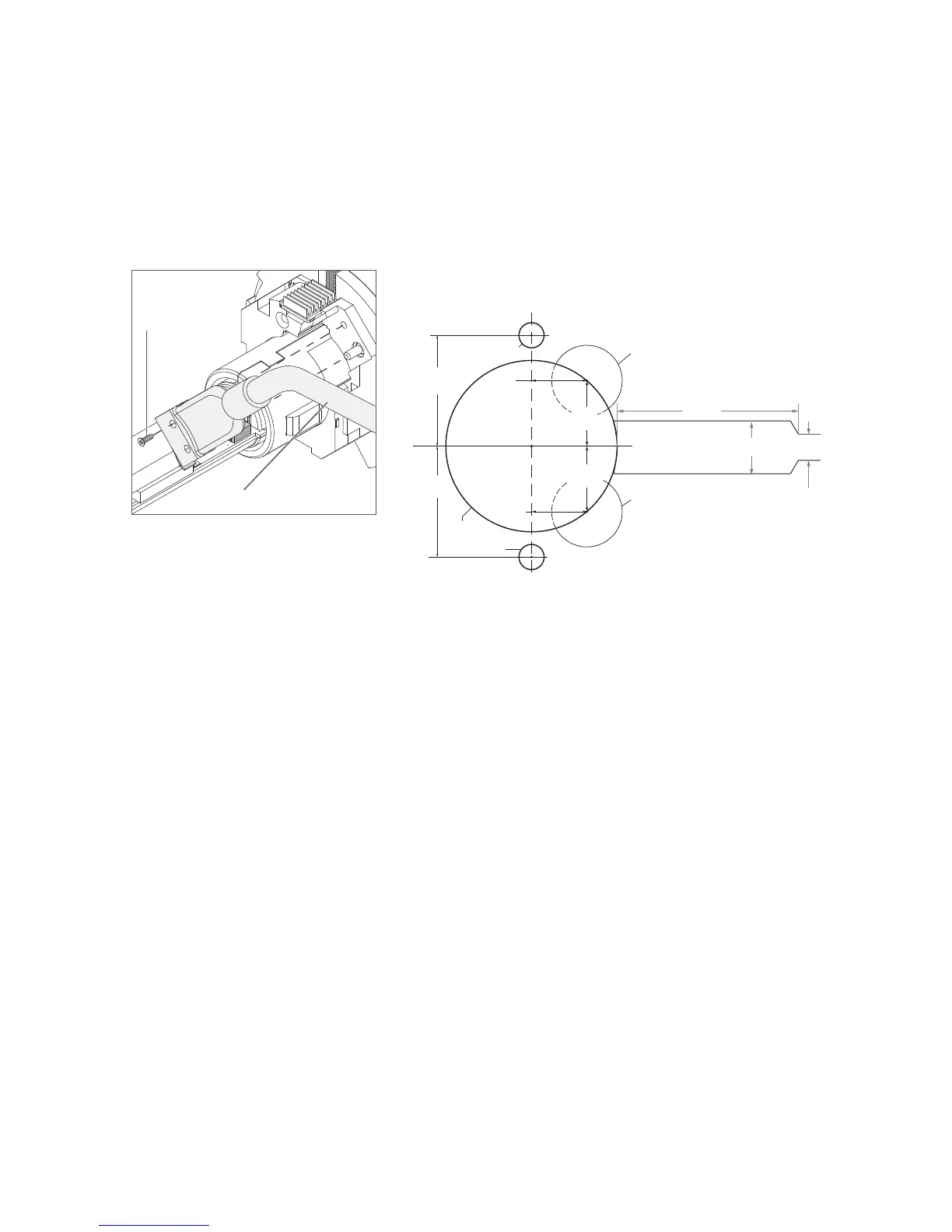

Door Preparation: Important! Drill RX hole first.
Drawing is not to scale.
RX
RX
RX wire harness
RX harness
screw
