28 • Schlage • ND-Series service manual

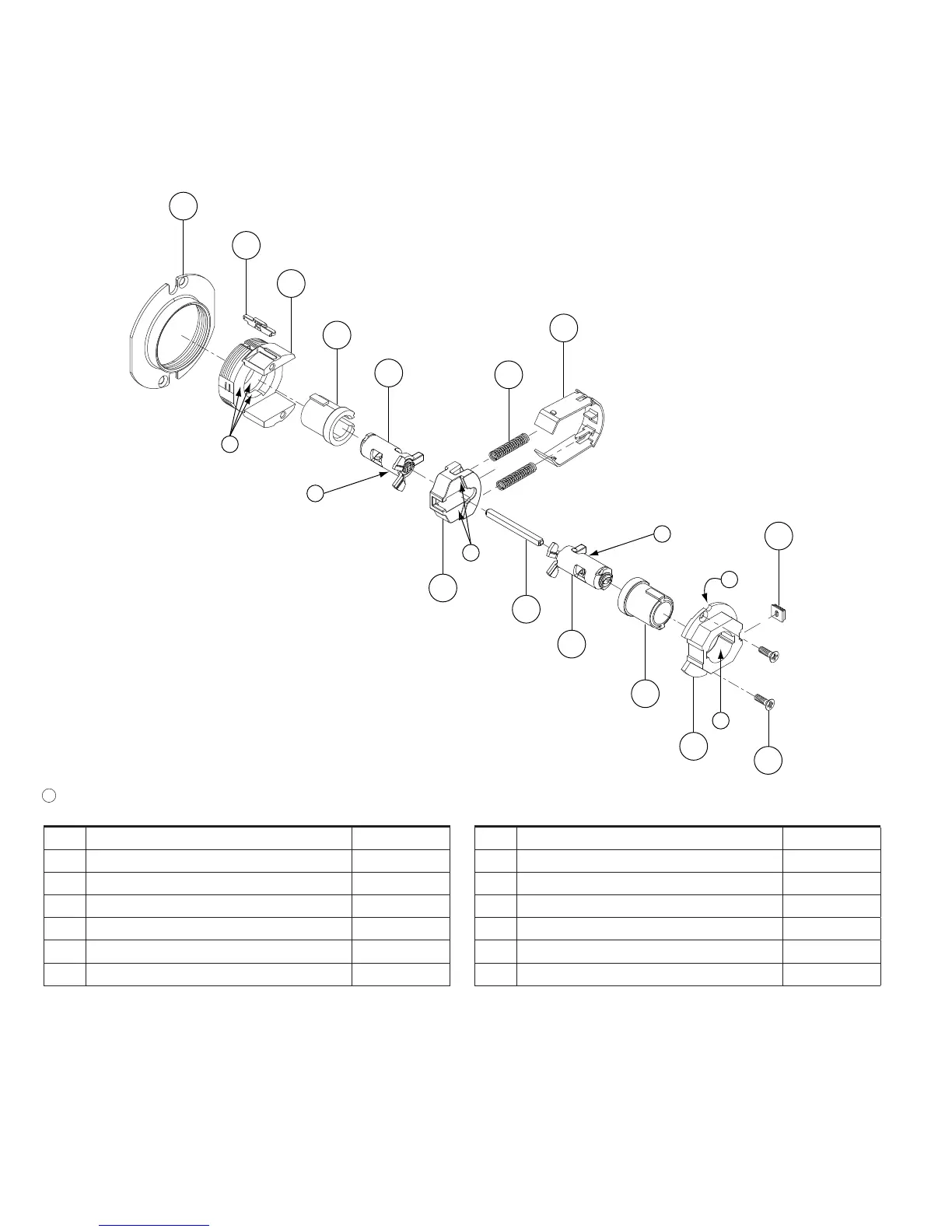

Chassis
Store lock
ND66
37
22
6
25
29
a
a
a
23
a
52
53
1
30
9
9
44
a
a
22
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
9 Keycam assembly N123-076
22 Spindle N523-013
23 Outside housing 24088544
25 Inside hub 24085060
No. Description Part number
29 Slide N523-149
30 Slide clip N523-025
37 Adjustment plate N523-054
44 Plunger bar N523-067
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
