20 • Schlage • ND-Series service manual
Chassis

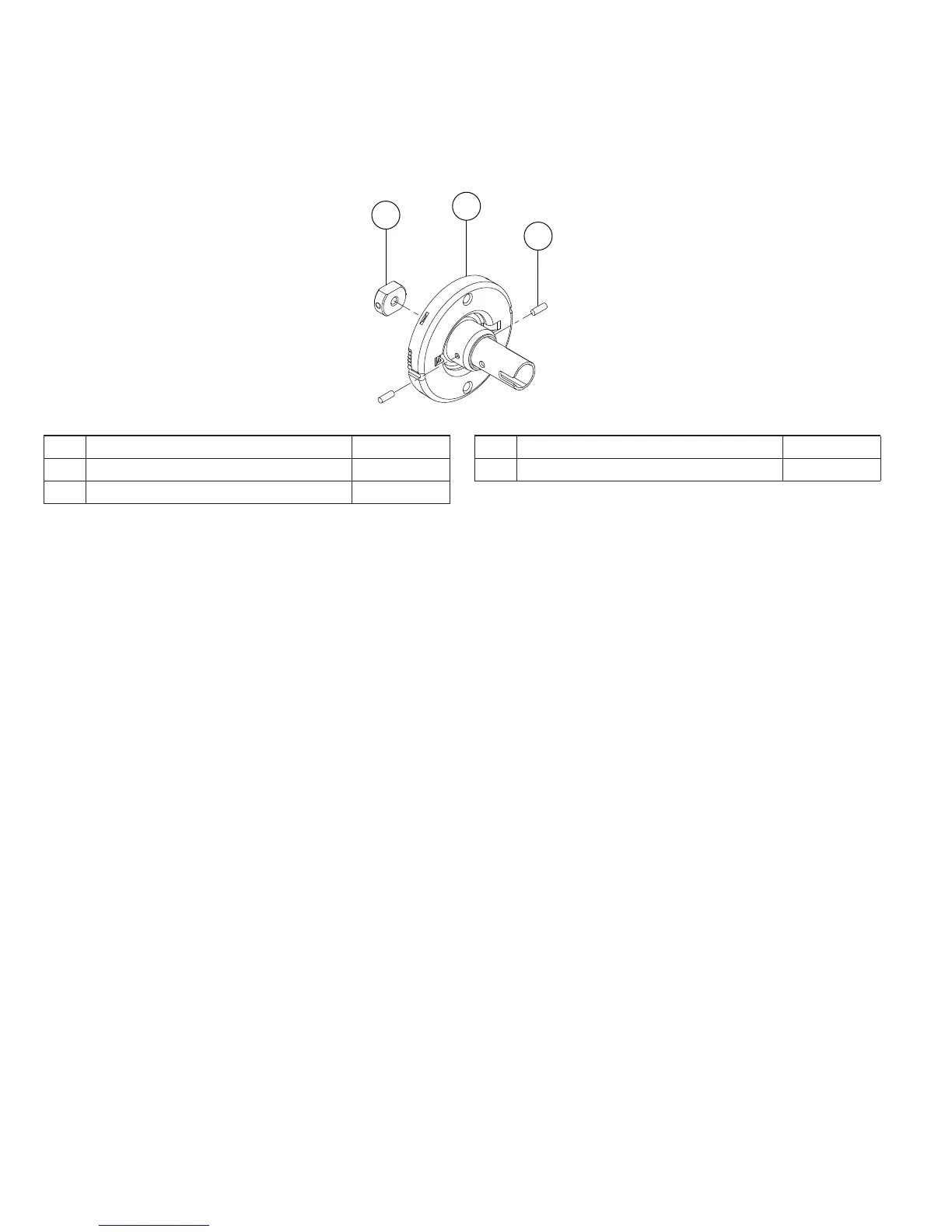

Single dummy trim
ND170
45
14
5
No. Description Part number
5 Spindle pin C604-340*
14 Spring cage assembly N123-019*
No. Description Part number
45 Dummy insert N523-069
* Not sold separately as a part.
For mounting two ND170 as double trim, see page 58.
