14 • Schlage • ND-Series service manual
Chassis

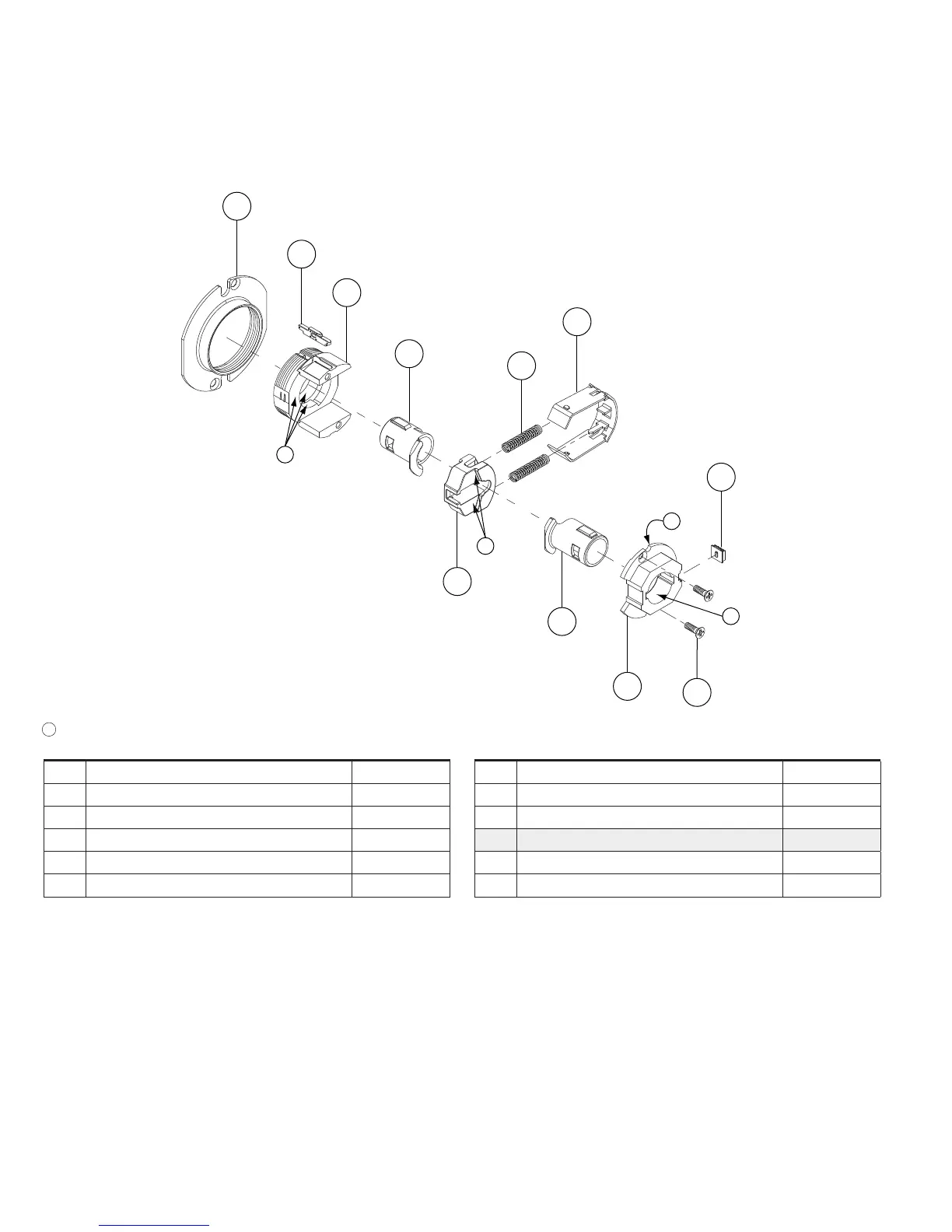

Passage latch
ND10
38
24
37
23
38
a
a
a
52
53
1
30
29
a
6
a
Apply light film of 100% synthetic grease on surfaces with brush.
No. Description Part number
1 Slide spring C503-019
6 Chassis screw L583-454
23 Outside housing 24088544
24 Inside hub 24085037
29 Slide N523-149
No. Description Part number
30 Slide clip N523-025
37 Adjustment plate N523-054
38 Spindle N523-177
52 Gauge insert 23988066
53 Insert, inside hub N523-160*
* Not sold separately as a part.
Designates new parts or assemblies.
