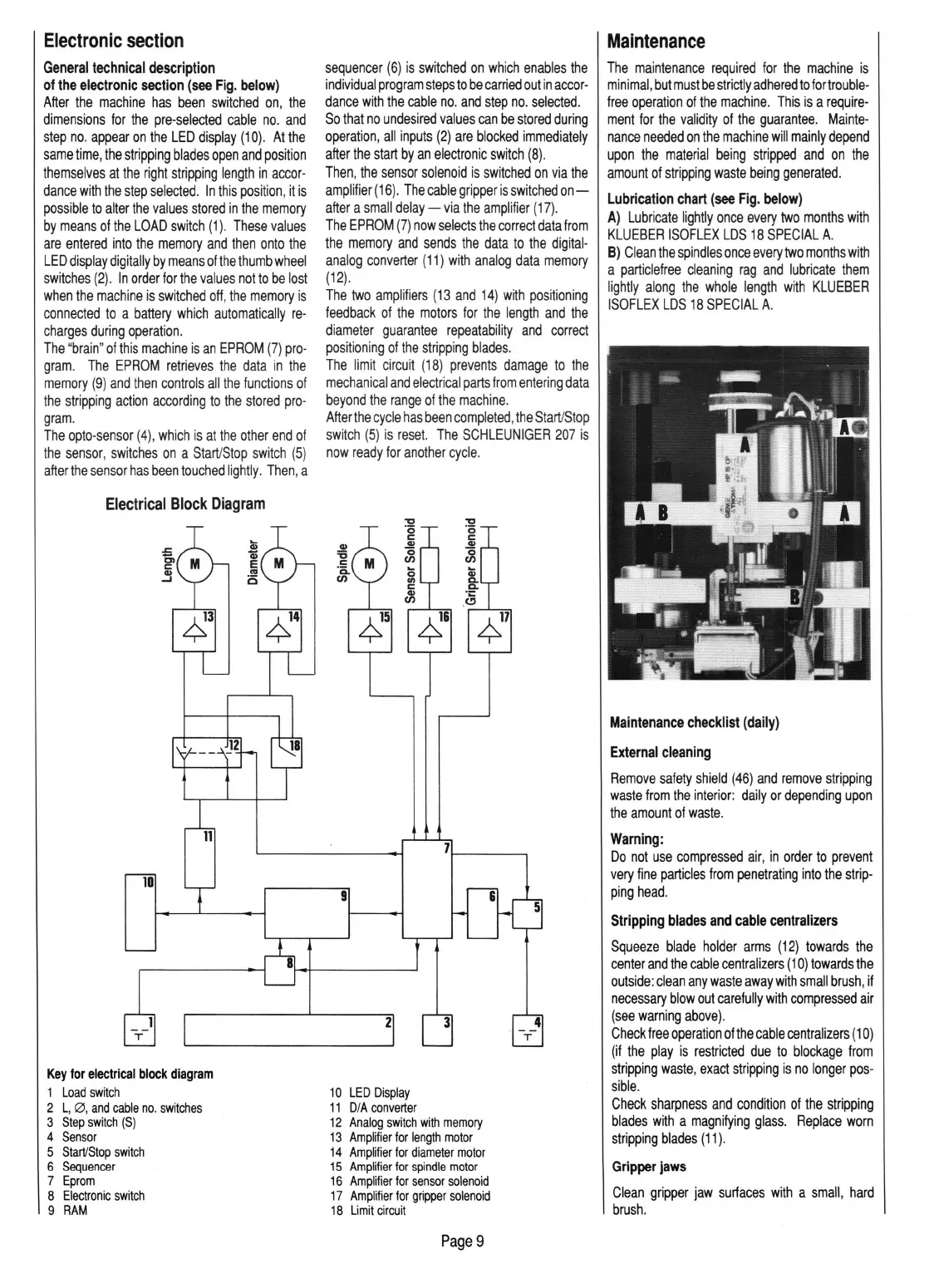

Electronic
section
General
technical
description
of
the
electronic
section
(see
Fig.
below)
After
the
machine
has
been
switched
on,
the
dimensions
tor
the
pre-selected
cable
no.
and
step
no.
appear
on
the
LED
display
(1
0).
At
the
same
time,
the
stripping
blades
open
and
position
themselves
at
the
right
stripping
length
in
accor-
dance
with
the
step
selected
.
In
this
position,
it
is
possible
to
alter
the
values
stored
in
the
memory
by
means
of
the
LOAD
switch
(1
).
These
values
are
entered
into
the
memory
and
then
onto
the
LED
display
digitally
by
means
of
the
thumb
wheel
switches
(2)
.
In
order
for
the
values
not
to
be
lost
when
the
machine
is
switched
ott,
the
memory
is
connected
to
a
battery
which
automatically
re-
charges
during
operation
.
The
"brain
"
of
this
machine
is
an
EPROM
(7)
pro-
gram.
The
EPROM
retrieves
the
data
in
the
memory
(9)
and
then
controls
all
the
functions
of
the
stripping
action
according
to
the
stored
pro-
gram
.
The
opto-sensor
(4),
which
is
at
the
other
end
of
the
sensor
,
switches
on
a
Start/Stop
sw
i
tch
(5)
after
the
sensor
has
been
touched
lightly.
Then
, a
Electrical
Block
Diagram
Key
for
electrical
block
diagram
1
Load
switch
2
L,
0,
and
cable
no.
switches
3
Step
switch
(S)
4
Sensor
5
StarVStop
switch
6 Sequencer
7
Eprom
8
Electronic
switch
9
RAM
sequencer
(6)
is
switched
on
which
enables
the
individual
program
steps
to
be
carried
out
in
accor-
dance
with
the
cable
no
.
and
step
no.
selected.
So
that
no
undesired
values
can
be
stored
during
operation,
all
inputs
(2)
are
blocked
immediately
after
the
start
by
an
electronic
switch
(8).
Then
,
the
sensor
solenoid
is
switched
on
via
the
amplifier
(16)
.
The
cable
gripper
is
switched
on-
after
a
small
delay-
via
the
amplifier
(17).
The
EPROM
(7)
now
selects
the
correct
data
from
the
memory
and
sends
the
data
to
the
digital-
analog
converter
(11)
with
analog
data
memory
(12)
.
The
two
amplifiers
(13
and
14)
with
positioning
feedback
of
the
motors
for
the
length
and
the
diameter
guarantee
repeatability
and
correct
positioning
of
the
stripping
blades
.
The
limit
circuit
(18)
prevents
damage
to
the
mechanical
and
electrical
parts
from
entering
data
beyond
the
range
of
the
machine
.
After
the
cycle
has
been
completed
,
the
Start/Stop
switch
(5)
is
reset.
The
SCHLEUNIGER
207
is
now
ready
for
another
cycle
.
9
2
10
LED
Display
11
D/A
converter
12
Analog
switch
with
memory
13
Amplifier
for
length
motor
14
Amplifier
for
diameter
motor
15 Amplifier for spindle motor
16
Amplifier
for
sensor
solenoid
17
Amplifier
for
gripper
solenoid
18
Limit
circuit
Page9
Maintenance
The
maintenance
required
for
the
machine
is
minimal
,
but
must
be
strictly
adhered
to
for
trouble-
free
operation
of
the
machine
.
This
is
a
require-
ment
for
the
validity
of
the
guarantee.
Mainte-
nance
needed
on
the
machine
will
mainly
depend
upon
the
material
being
stripped
and
on
the
amount
of
stripping
waste
being
generated.
Lubrication
chart
(see
Fig.
below)
A)
Lubricate
lightly
once
every
two
months
with
KLUEBER
ISO
FLEX
LOS
18
SPECIAL
A.
B)
Clean
the
spindles
once
every
two
months
with
a
particlefree
cleaning
rag
and
lubricate
them
lightly
along
the
whole
length
with
KLUEBER
ISOFLEX
LOS
18
SPECIAL
A.
Maintenance
checklist
(daily)
External
cleaning
Remove
safety
shield
(46)
and
remove
stripping
waste
from
the
interior
:
daily
or
depending
upon
the
amount
of
waste.
Warning:
Do
not
use
compressed
air,
in
order
to
prevent
very
fine
particles
from
penetrating
into
the
strip-
ping
head
.
Stripping
blades
and
cable
centralizers
Squeeze
blade
holder
arms
(12)
towards
the
center
and
the
cable
centralizers
(1
0)
towards
the
outside:
clean
any
waste
away
with
small
brush,
if
necessary
blow
out
carefully
with
compressed
air
(see
warning
above).
Check
free
operation
of
the
cable
centralizers
(1
0)
(if
the
play
is
restricted
due
to
blockage
from
stripping
waste,
exact
stripping
is
no
longer
pos-
sible.
Check
sharpness
and
condition
of
the
stripping
blades
with
a
magnifying
glass
.
Replace
worn
stripping
blades
(11
).
Gripper
jaws
Clean
gripper
jaw
surfaces
with
a
small,
hard
brush.
