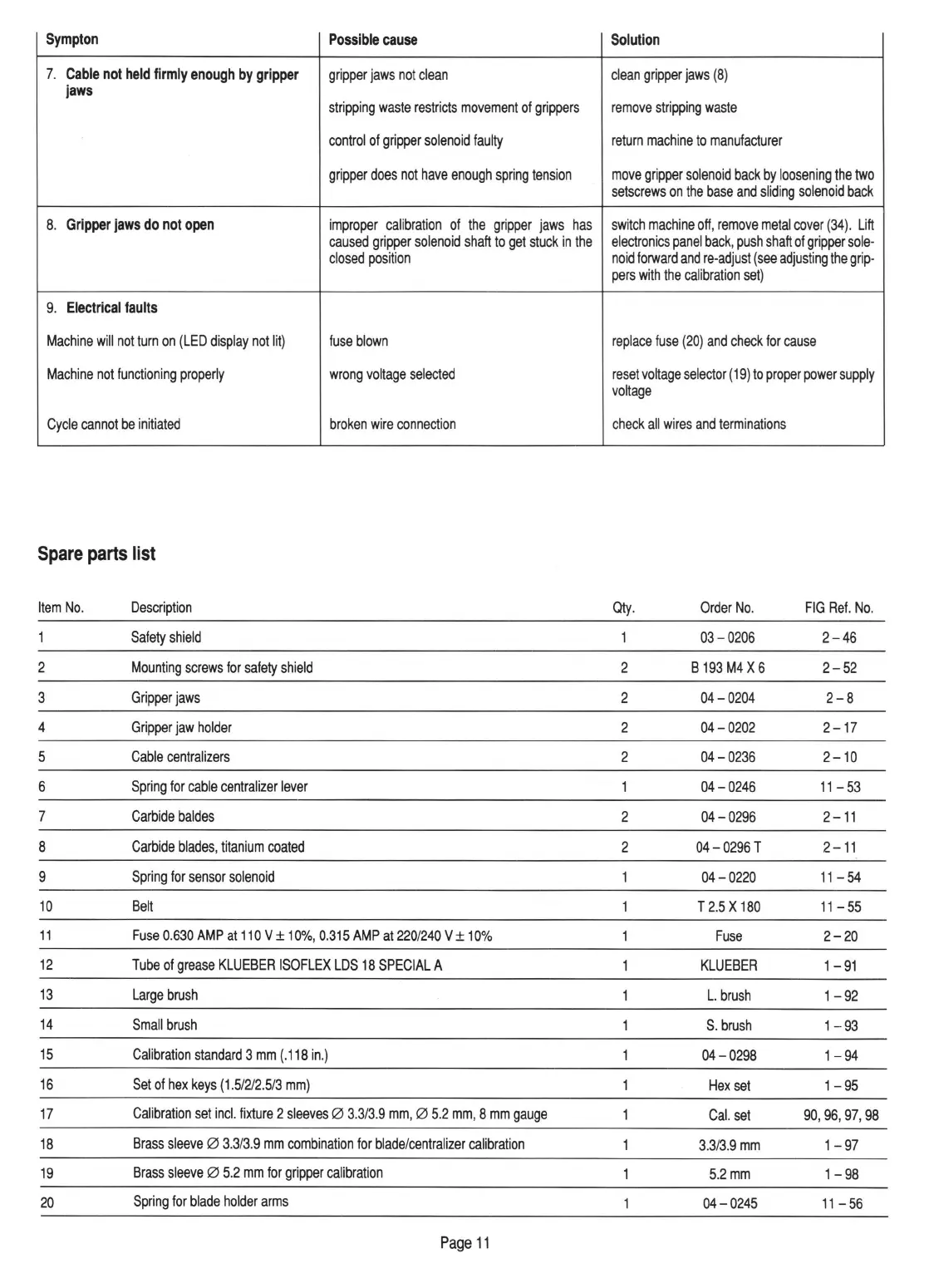

Schleuniger 207 - MM (.275 In.)

Sympton
Possible cause
Solution
7.
Cable not held firmly enough by gripper
gripper jaws not clean clean gripper jaws (8)
jaws
stripping waste restricts movement of grippers
remove stripping waste
control of gripper solenoid faulty
return machine to manufacturer
gripper does not have enough spring tension move gripper solenoid back by loosening the two
setscrews on the base and sliding solenoid back
8. Gripper jaws do not open
improper calibration of the gripper jaws has
switch machine off, remove metal cover (34). Lift
caused gripper solenoid shaft to get stuck in the electronics panel back, push shaft of gripper sole-
closed position noid forward and re-adjust (see adjusting the grip-
pers with the calibration set)
9. Electrical faults
Machine will not turn on (LED display not lit) fuse blown replace fuse (20) and check for cause
Machine not functioning properly
wrong voltage selected reset voltage selector (19) to proper power supply
voltage
Cycle cannot be initiated broken wire connection check all wires and terminations
Spare parts list
Item No . Description
Oty. Order No. FIG Ref. No.
Safety shield
03-0206 2-46
2 Mounting screws for safety shield
2 B 193 M4 X 6 2-52
3
Gripper jaws
2
04-0204
2-8
4 Gripper jaw holder
2 04-0202
2-17
5
Cable centralizers
2 04-0236 2-10
6
Spring for cable centralizer lever
04-0246 11-53
7
Carbide baldes
2 04-0296 2-11
8
Carbide blades, titanium coated
2 04-0296 T
2-11
9
Spring for sensor solenoid
04-0220 11-54
10 Belt
T 2.5 X 180 11-55
11
Fuse 0.630 AMP at 110 V ± 10%, 0. 315 AMP at 220/240 V ± 10%
Fuse
2-20
12
Tube of grease KLUEBER ISOFLEX LOS 18 SPECIAL A
KLUEBER
1-91
13
Large brush
L. brush
1-92
14
Small brush
S. brush
1-93
15
Calibration standard 3 mm (. 118 in .)
04-0298 1-94
16 Set of hex keys (1.5/2/2 . 5/3 mm)
Hex set 1-95
17
Calibration set incl . fixture 2 sleeves 0 3.3/3.9 mm, 0 5.2 mm, 8 mm gauge
Cal. set 90,96,97,98
18
Brass sleeve 0 3. 3/3 .9 mm combination for blade/centralizer calibration
3. 3/3 .9 mm 1-97
19
Brass sleeve 0 5.2 mm for gripper calibration
5.2mm
1-98
20
Spring for blade holder arms
04-0245 11-56
Page 11
