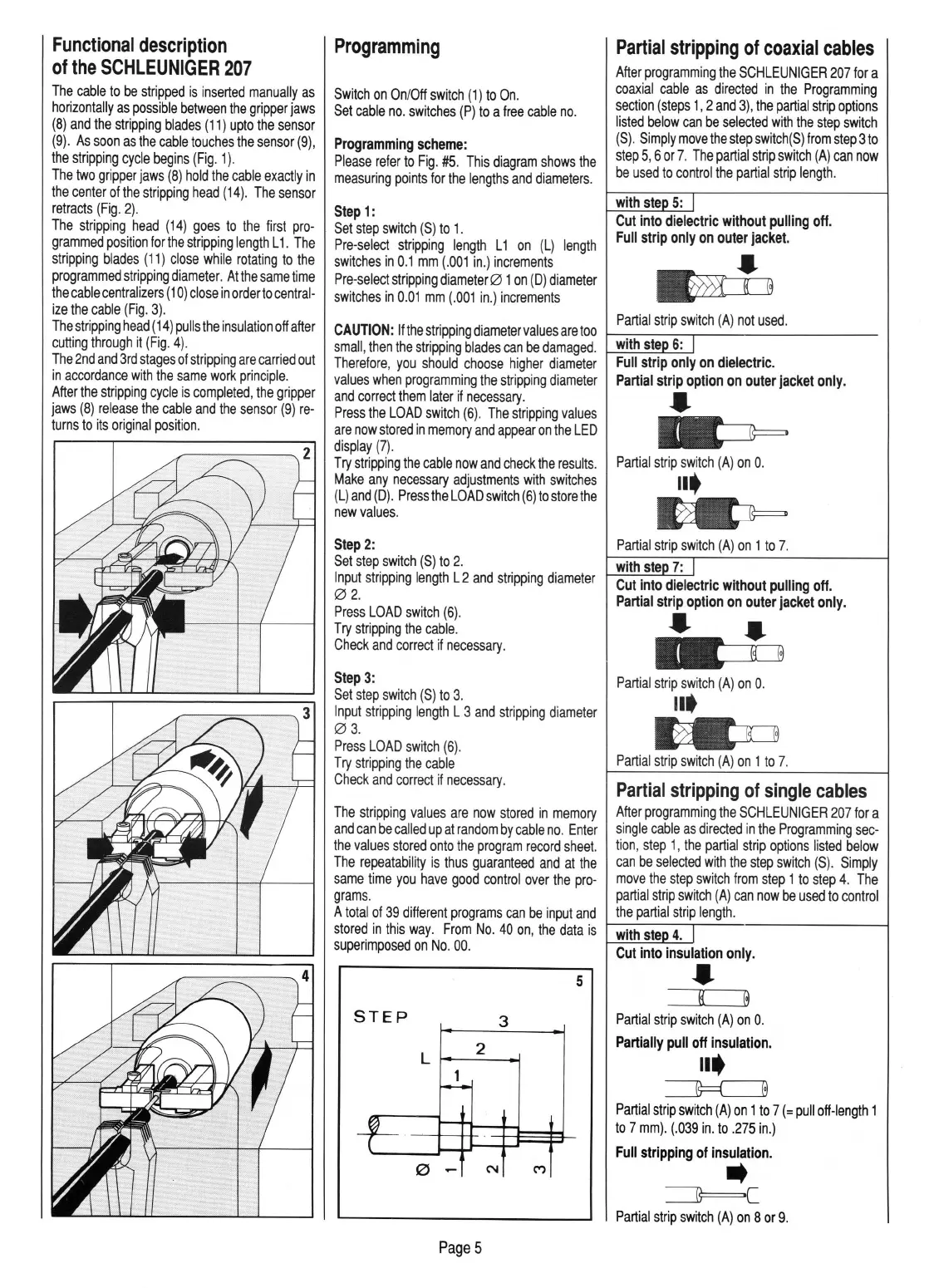

Schleuniger 207 - Functional Description of the SCHLEUNIGER 207

Functional description
of the SCHLEUNIGER 207
The cable to be stripped is inserted manually as
horizontally as possible between the gripper jaws
(8) and the stripping blades (11) upto the sensor
(9). As soon as the cable touches the sensor (9),
the stripping cycle begins (Fig . 1 ).
The two gripper jaws (8) hold the cable exactly in
the center of the stripping head (14) . The sensor
retracts (Fig. 2).
The stripping head (14) goes to the first pro-
grammed position for the stripping length L 1. The
stripping blades (1 1) close while rotating to the
programmed stripping diameter . At the same time
the cable centralizers ( 1 0) close in order to central -
ize the cable (Fig . 3) .
The stripping head (14) pulls the insulation off after
cutting through it (Fig . 4) .
The 2nd and 3rd stages of stripping are carried out
in accordance with the same work principle .
After the stripping cycle is completed , the gripper
jaws (8) release the cable and the sensor (9) re -
turns to its original position .
Programming
Switch on On / Off switch (1) to On.
Set cable no . switches (P) to a free cable no .
Programming scheme:
Please refer to Fig . #5. This diagram shows the
measuring points for the lengths and diameters .
Step 1:
Set step switch (S) to 1.
Pre-select stripping length L 1 on (L) length
switches in 0.1 mm (.001 in.) increments
Pre-select stripping diameter 0 1 on (D) diameter
switches in 0.01 mm (. 001 in .) increments
Partial stripping of coaxial cables
After programming the SCHLEUNIGER 207 for a
coaxial cable as directed in the Programming
section (steps 1, 2 and 3) , the partial strip options
listed below can be selected with the step switch
(S). Simply move the step switch(S) from step 3 to
step 5, 6 or 7. The partial strip switch (A) can now
be used to control the partial strip length .
with ste 5:
Cut into dielectric without pulling off.
Full strip only on outer jacket.
Partial strip sw i tch (A ) not used.
CAUTION: If the stripping diameter values are too f-.,...,----,----------
small , then the stripping blades can be damaged. with ste 6:
Therefore , you should choose higher diameter Full strip only on dielectric.
values when programming the stripping diameter Partial strip option on outer jacket only.
and correct them later if necessary . •
Press the LOAD switch (6). The stripping values
are now stored in memory and appear on the LED
di splay (7) .
Try stripp i ng the cable now and check the results.
Make any necessary adjustments with switches
(L) and (D). Press the LOAD switch (6) to store the
new values.
Step 2:
Set step switch (S) to 2.
Input stripping length L 2 and stripp i ng di ameter
02.
Press LOAD switch (6) .
Try stripping the cable.
Check and correct if necessary .
Step 3:
Set step switch (S) to 3.
Input stripping length L 3 and strippi ng di ameter
0 3.
Press L OAD switch (6).
Try st ri pping the cable
Check and co rr ect if necessary .
The st r ipping values are now stored in memory
and can be called up at random by cable no . Enter
the values stored onto the program record sheet.
The repeatability is thus guaranteed and at the
same time you have good control over the pro-
grams .
A
total of 39 different programs can be input and
stored in this way. From No . 40 on , the data is
superimposed on No. 00.
5
STEP
3
L
2
~
+-
1--
0 -
('II
("')
Page 5
Partial strip sw i tch (A) on 0.
II.
~
Partial strip switch (A) on 1 to 7.
with ste 7:
Cut into dielectric without pulling off.
Partial strip option on outer jacket only.
~
Partial st ri p switch ( A) on 0.
lit
Part i al st rip switch (A ) on 1 to 7.
Partial stripping of single cables
After programming the SCHLEUNIGER 207 for a
single cable as directed in the Programming sec-
tion , step 1, the partial strip options listed below
can be selected with the step switch (S) . Simply
move the step switch from step 1 to step 4. The
partial strip switch (A) can now be used to control
the partial strip length.
with ste 4.
Cut into insulation only .
•
H B
Partial strip switch (A) on 0.
Partially pull off insulation.
II.
~
Partial strip switch (A) on 1 to 7 (=pull off-length 1
to 7 mm) . (.039 in . to .275 in.)
Full stripping of insulation .
•
~[
Partial strip switch (A) on 8 or 9.
