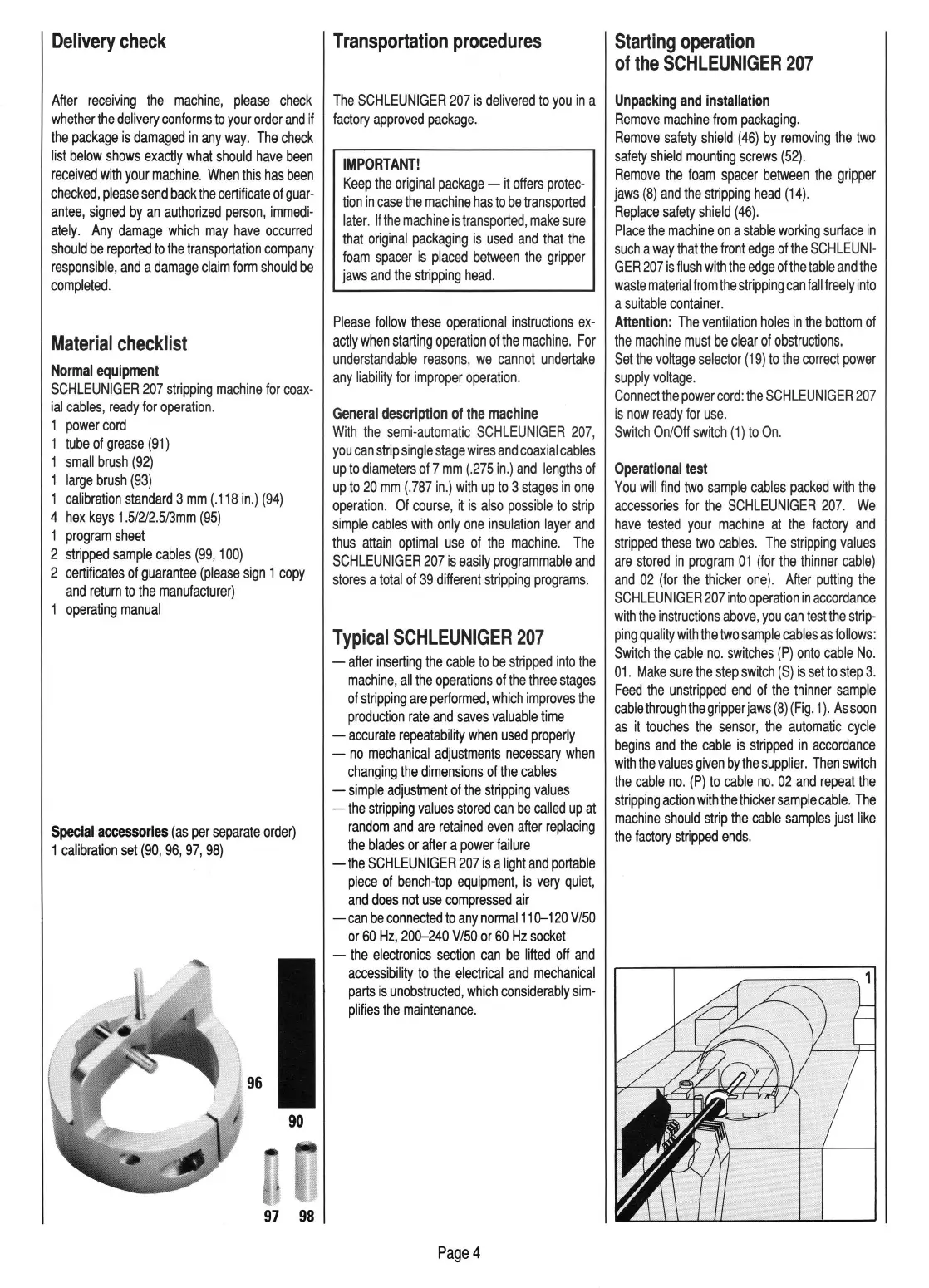

Delivery check
After rece1v1ng the machine, please check
whether the delivery conforms to your order and if
the package is damaged in any way . The check
list below shows exactly what should have been
received with your machine . When this has been
checked, please send back the certificate of guar-
antee, signed by an authorized person, immedi-
ately. Any damage which may have occurred
should be reported to the transportation company
responsible, and a damage claim form should be
completed.
Material checklist
Normal equipment
SCHLEUNIGER 207 stripping machine for coax-
ial cables, ready for operation .
1 power cord
1 tube of grease (91)
1 small brush (92)
1 large brush (93)
1 calibration standard 3 mm (.118 in.) (94)
4 hex keys 1.5/2/2.5/3mm (95)
1 program sheet
2 stripped sample cables (99 , 1 00)
2 certificates of guarantee (please sign 1 copy
and return to the manufacturer)
1 operating manual
Special accessories (as per separate order)
1 calibration set (90, 96 , 97, 98)
97 98
Transportation procedures
The SCHLEUNIGER 207 is delivered to you in a
factory approved package.
IMPORTANT!
Keep the original package - it offers protec-
tion in case the machine has to be transported
later . If the machine is transported, make sure
that original packaging is used and that the
foam spacer is placed between the gripper
jaws and the stripping head.
Please follow these operational instructions ex-
actly when starting operation of the machine. For
understandable reasons, we cannot undertake
any liability for improper operation .
General description of the machine
With the semi-automatic SCHLEUNIGER 207,
you can strip single stage wires and coaxial cables
up to diameters of 7 mm (.275 in .) and lengths of
up to 20 mm (. 787 in .) with up to 3 stages in one
operation. Of course, it is also possible to strip
simple cables with only one insulation layer and
thus attain optimal use of the machine. The
SCHLEUNIGER 207 is easily programmable and
stores a total of 39 different stripping programs.
Typical SCHLEUNIGER 207
-after inserting the cable to be stripped into the
machine, all the operations of the three stages
of stripping are performed, which improves the
production rate and saves valuable time
- accurate repeatability when used properly
- no mechanical adjustments necessary when
changing the dimensions of the cables
-simple adjustment of the stripping values
- the stripping values stored can be called up at
random and are retained even after replacing
the blades or after a power failure
-the SCHLEUNIGER 207 is a light and portable
piece of bench-top equipment, is very quiet,
and does not use compressed air
-can be connected to any normal11 o-120 V/50
or 60Hz , 20G-240 V/50 or 60Hz socket
- the electronics section can be lifted off and
accessibility to the electrical and mechanical
parts is unobstructed, which considerably sim-
plifies the maintenance .
Page4
Starting operation
of the SCHLEUNIGER 207
Unpacking and installation
Remove machine from packaging .
Remove safety shield (46) by removing the two
safety shield mounting screws (52) .
Remove the foam spacer between the gripper
jaws (8) and the stripping head (14).
Replace safety shield (46).
Place the machine on a stable working surface in
such a way that the front edge of the SCHLEUNI-
G ER 207 is flush with the edge ofthe table and the
waste material from the stripping can fall freely into
a suitable container.
Attention: The ventilation holes in the bottom of
the machine must be clear of obstructions .
Set the voltage selector (19) to the correct power
supply voltage.
Connect the power cord : the SCHLEUNIGER 207
is now ready for use .
Sw i tch On / Off switch ( 1) to On.
Operational test
You will find two sample cables packed w~h the
accessories for the SCHLEUNIGER 207 . We
have tested your machine at the factory and
stripped these two cables . The stripping values
are stored in program 01 (for the thinner cable)
and 02 (for the thicker one) . After putting the
SCHLEUNIGER 207 into operation in accordance
with the instructions above, you can test the strip-
ping quality with the two sample cables as follows :
Switch the cable no. switches (P) onto cable No .
01. Make sure the step switch (S) is set to step 3.
Feed the unstripped end of the thinner sample
cablethroughthegripperjaws(8)(Fig.1). Assoon
as it touches the sensor, the automatic cycle
begins and the cable is stripped in accordance
with the values given by the supplier. Then switch
the cable no . (P) to cable no. 02 and repeat the
stripping action with the thicker sample cable . The
machine should strip the cable samples just like
the factory stripped ends.
