Schleuniger 207 - Troubleshooting Checklist

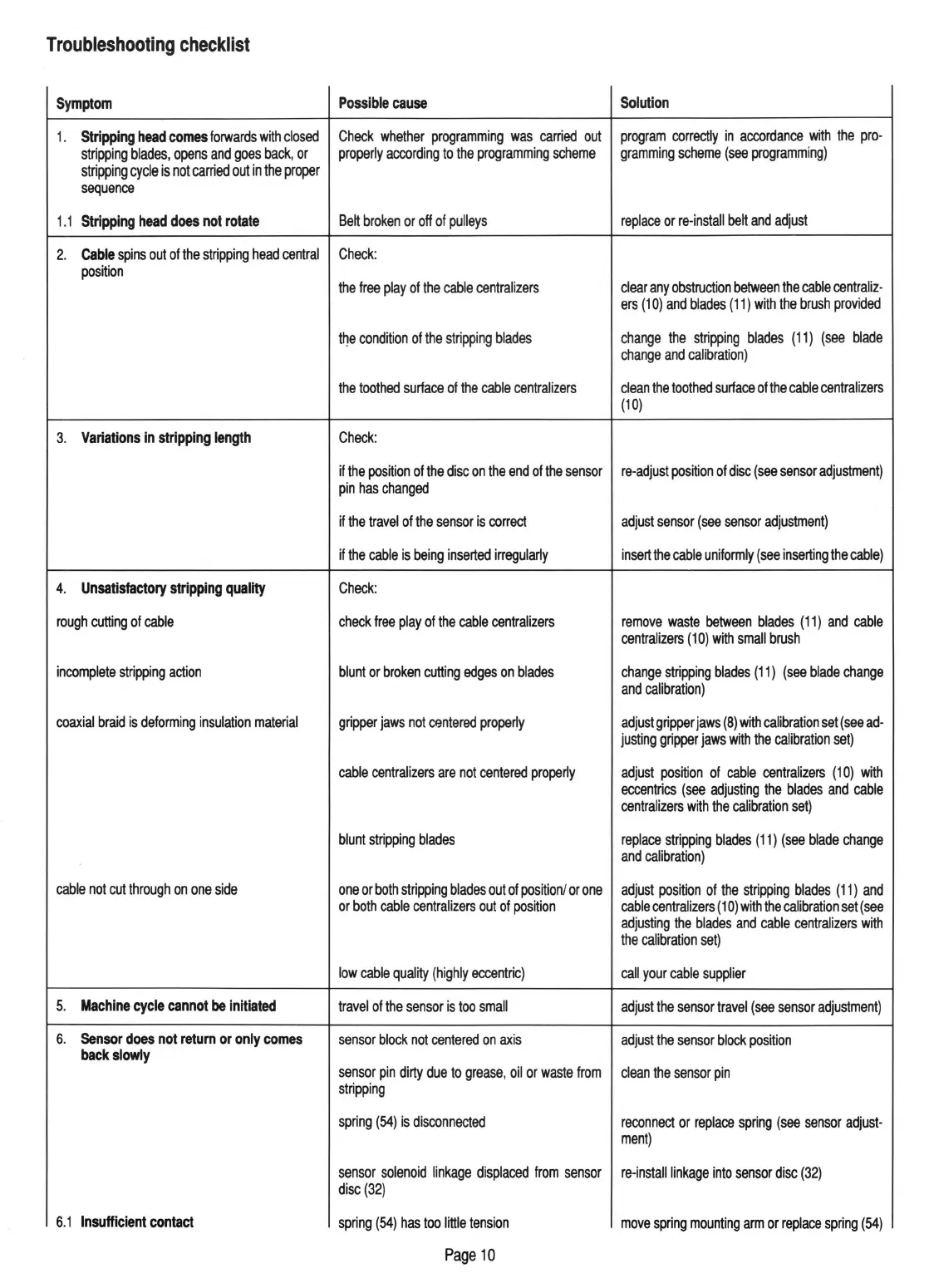

Troubleshooting checklist
Symptom
Possible cause
Solution
1. Stripping head comes forwards with closed
Check whether programming was carried out
program correctly in accordance with the pro-
stripping blades, opens and goes back, or
properly according to the programming scheme
gramming scheme (see programming)
stripping cycle is not carried out in the proper
sequence
1.1 Stripping head does not rotate
Be~ broken or off of pulleys
replace or re-install be~ and adjust
2.
Cable spins out of the stripping head central
Check :
posttion
the free play of the cable centralizers
clear any obstruction between the cable centraliz-
ers (1 0) and blades (11) with the brush provided
t~e condition of the stripping blades
change the stripping blades (11) (see blade
change and calibration)
the toothed surface of the cable centralizers clean the toothed surface of the cable centralizers
(10)
3. Variations in stripping length Check:
if the posttion of the disc on the end of the sensor re-adjust position of disc (see sensor adjustment)
pin has changed
if the travel of the sensor is correct adjust sensor (see sensor adjustment)
if the cable is being inserted irregularly insert the cable uniformly (see inserting the cable)
4. Unsatisfactory stripping quality Check:
rough cutting of cable check free play of the cable centralizers remove waste between blades (11) and cable
centralizers (10) wtth small brush
incomplete stripping action blunt or broken cutting edges on blades change stripping blades (11) (see blade change
and calibration)
coaxial braid is deforming insulation material gripper jaws not centered properly adjust gripper jaws (8) wtth calibration set (see ad-
justing gripper jaws wtth the calibration set)
cable centralizers are not centered properly adjust posttion of cable centralizers (1 0) wtth
eccentrics (see adjusting the blades and cable
centralizers with the calibration set)
blunt stripping blades
replace stripping blades (11) (see blade change
and calibration)
cable not cut through on one side
one or both stripping blades out of position/ or one adjust posttion of the stripping blades ( 11) and
or both cable centralizers out of position cable centralizers ( 1 0) with the calibration set (see
adjusting the blades and cable centralizers wtth
the calibration set)
low cable quality (highly eccentric)
call your cable supplier
5. Machine cycle cannot be initiated
travel of the sensor is too small
adjust the sensor travel (see sensor adjustment)
6. Sensor does not return or only comes
sensor block not centered on axis
adjust the sensor block position
back slowly
sensor pin dirty due to grease, oil or waste from clean the sensor pin
stripping
spring (54) is disconnected
reconnect or replace spring (see sensor adjust-
men!)
sensor solenoid linkage displaced from sensor
re-install linkage into sensor disc (32)
disc (32)
6.1 In s ufficient contact
spring (54) has too little tension
move s rin mountin arm or re lace s rin
54
p g
g
p p g ( )
Page 10
