52 Safety Shield Mounting Screws
18

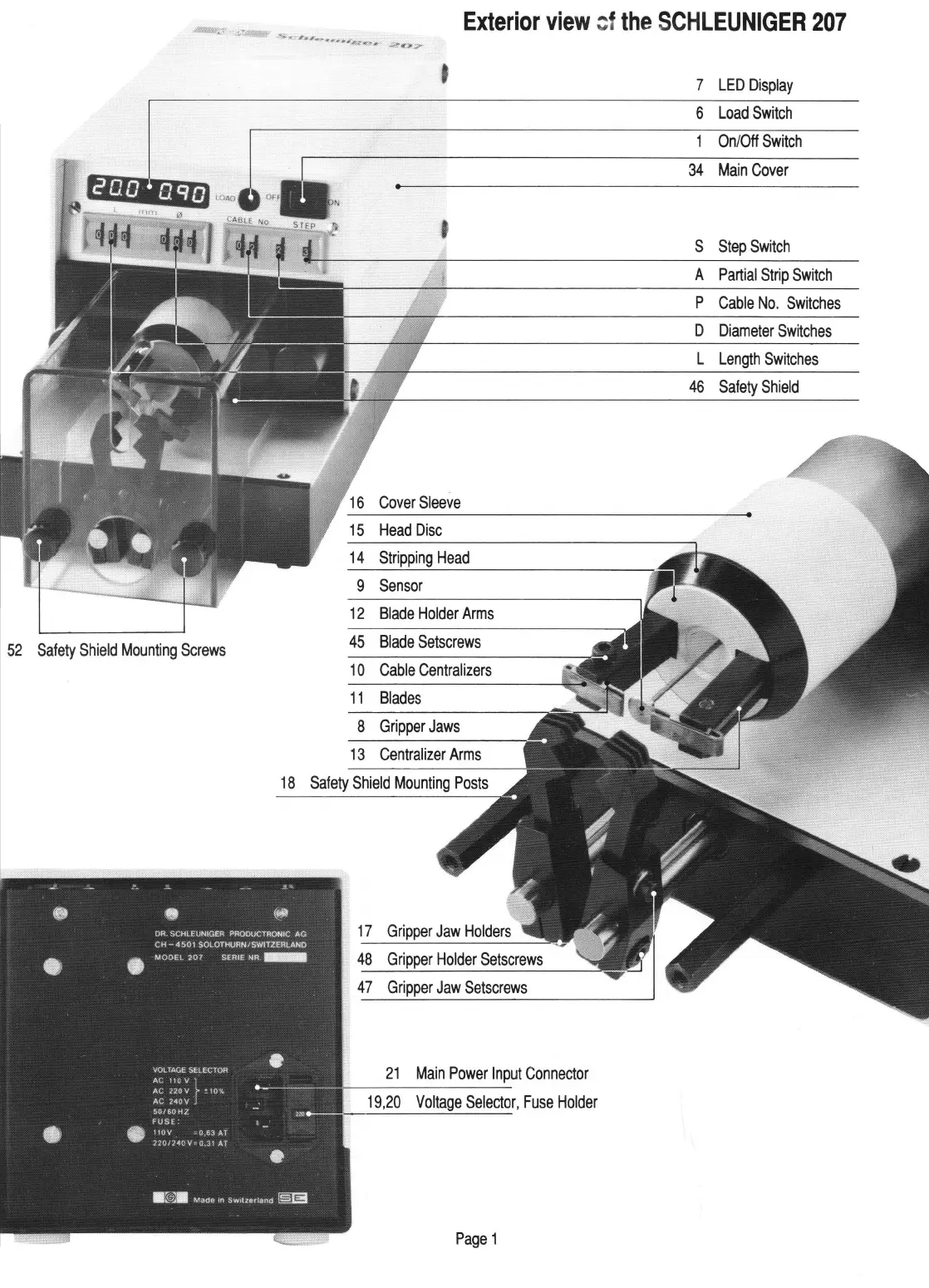

Exterior view :f the SCHLEUNIGER 207
t
Cover Sleeve
Head Disc
Head
Sensor
12 Blade Holder Arms
45 Blade Setscrews
10 Cable Centralizers
11 Blades
8 Gripper Jaws
13 Centralizer Arms
Safety Shield Mounting Posts
47 Gripper Jaw Setscrews
Main Power Input Connector
Selector, Fuse Holder
----'-----=----
Page 1
7
LED Display
6
Load Switch
1 On/Off Switch
34 Main Cover
s Step Switch
A
Partial Strip Switch
p
Cable No. Switches
D
Diameter Switches
L
Length Switches
46
Safety Shield
