Watson SHDSL Router
Operating Manual
Watson-SHDSL-Router-Manual.doc
Version 1.0-03
6.1.2 DSL Cable
The DSL cable should be a 4 pairs unscreened cable (UTP) with RJ45 connector on one end
6.2 Ethernet Interfaces
The Ethernet cables should be 4 pair unscreened cable (UTP) or screened (STP) of type CAT5 (or
higher). Ethernet patch cables up to 50 m in length are recommended. Both crossed and normal
wiring styles are supported by the auto-crossover feature of the product.
8
1

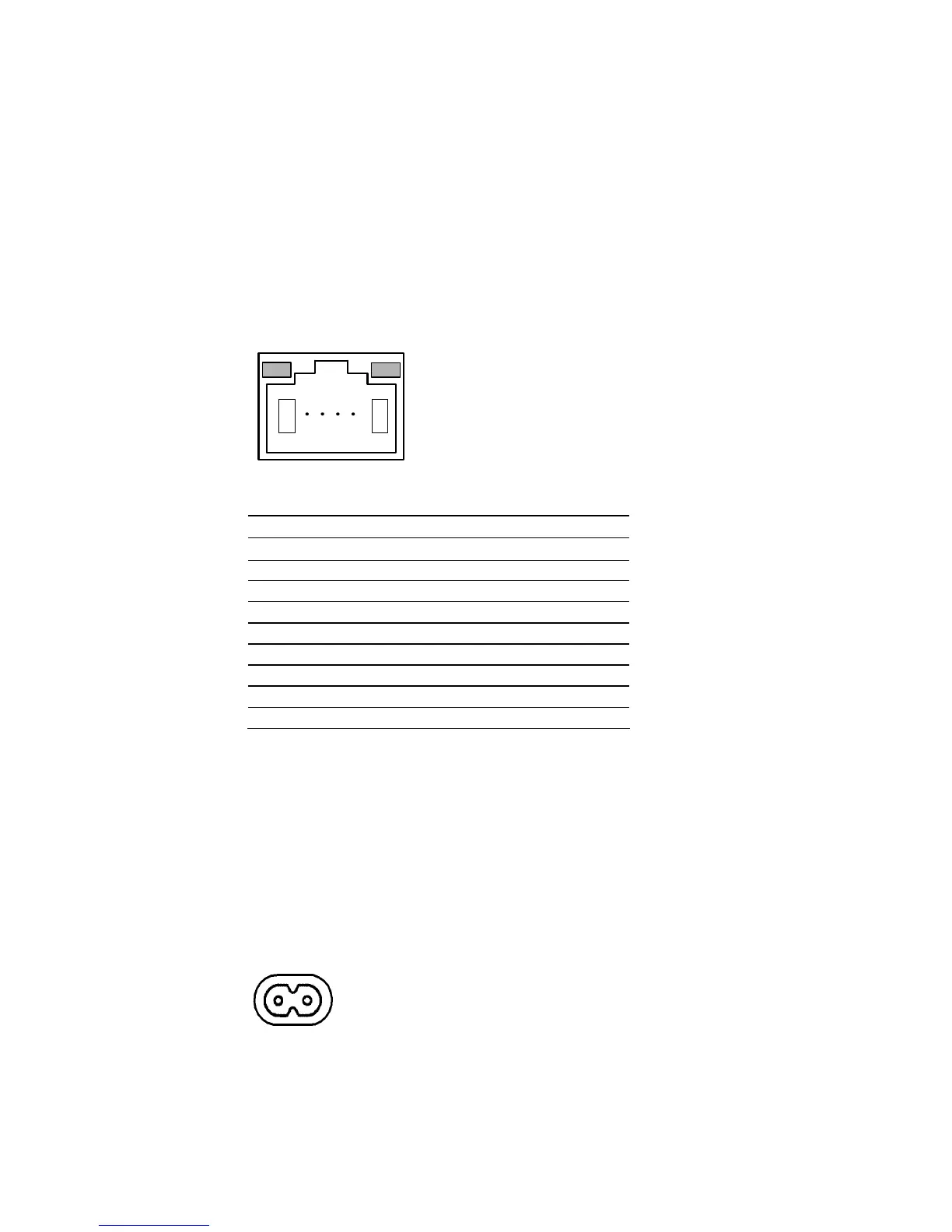

Type: RJ45-8 (Front View)
Figure 6-2: Ethernet Connector
Pin No Signal Name
1 Transmit Data +
2 Transmit Data -
3 Receive Data +
4 Not used
5 Not used
6 Receive Data -
7 Not used
8 Not used
Table 6-2: Ethernet Connector
6.3 Power and Grounding
6.3.1 Power Connector
Watson SHDSL router is designed to be powered from an AC mains power supply voltage of 110
VAC to 240 VAC at a frequency of 50 Hz to 60 Hz. The circuit fuse rating must not exceed 10
Amps. The socket outlet shall be installed near the equipment and shall be easily accessible.
A power cable with an IEC320-C7 style connector can be used for this purpose.
Figure 6-3: Power Connector
6-2 Revision: 2007-05-24
